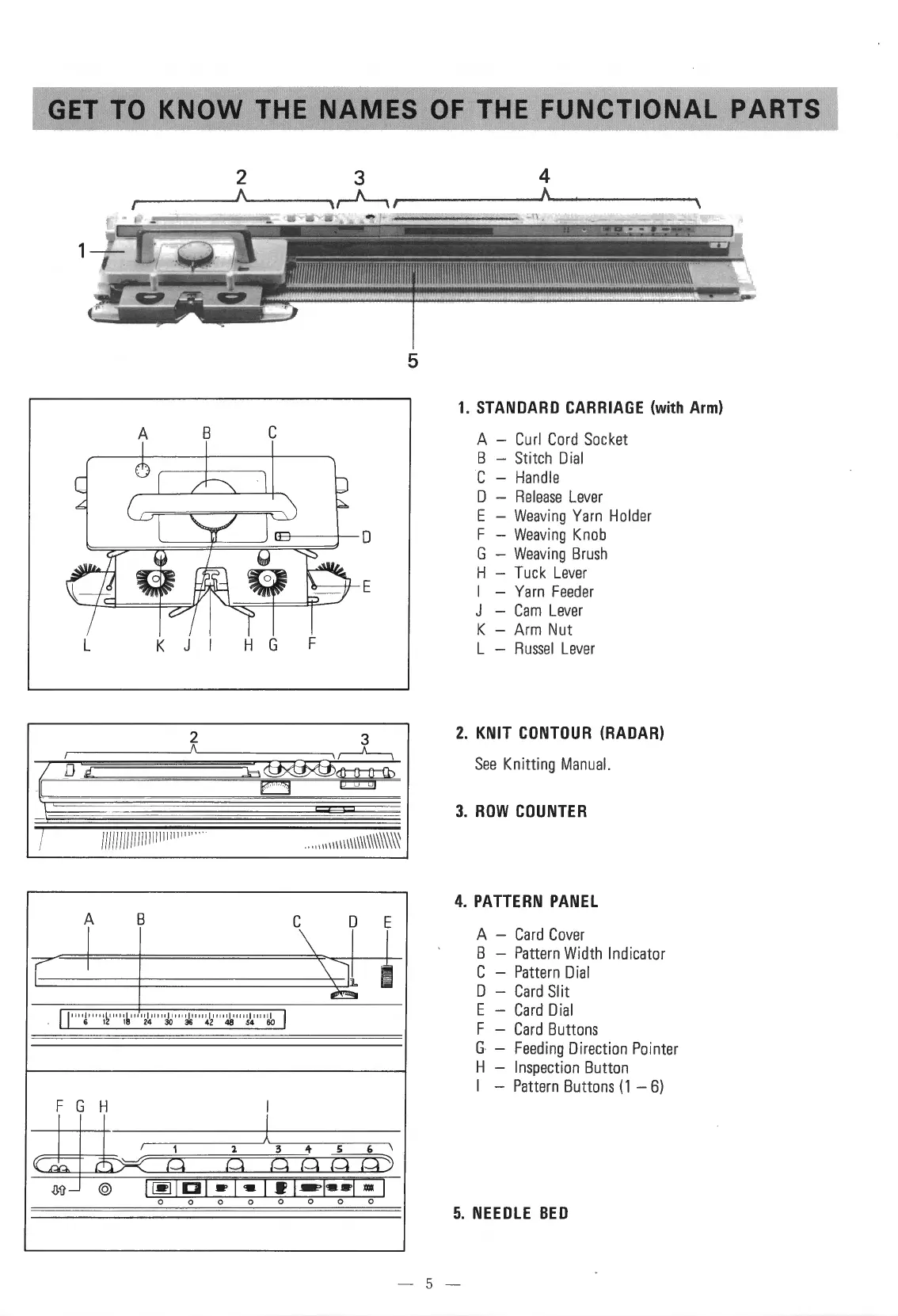

Singer 560 - Functional Parts Identification

GET TO KNOW THE NAMES OF THE FUNCTIONAL PARTS
A
B
c
L
K
j
I H G
2
l/111//lllllllllllllllll""' '
ll
llll l ttttl l tttH I IIIII I tttll lt Ht tl tHtl l ttll tl tH III I IIIII I
6 12 18 24 30 36 42 48 54 60
5
D
E
F
. ·"" 111111\111\\\\\\\\W
1. STANDARD CARRIAGE (with Arm)
A - Curl Cord Socket
B - St i tch Dial
C - Handle
D - Release Lever
E - Weaving Ya rn Holder
F - Weaving Knob
G - Weaving Brush
H - Tuck Lever
I - Yarn Feeder
J
-
Cam Lever
K - Arm Nut
L - Russel Lever
2. KNIT CONTOUR (RADAR)
See Knitting Manual.
3. ROW COUNTER
4. PATTERN PANEL
A - Card Cover
B - Pattern Width Indicator
C -
Pattern Dial
D - Card Slit
E -
Card Dial
F - Card Buttons
G - Feeding Direction Pointer
H - Inspection Button
I - Pattern Buttons (1- 6)
5. NEEDLE BED
