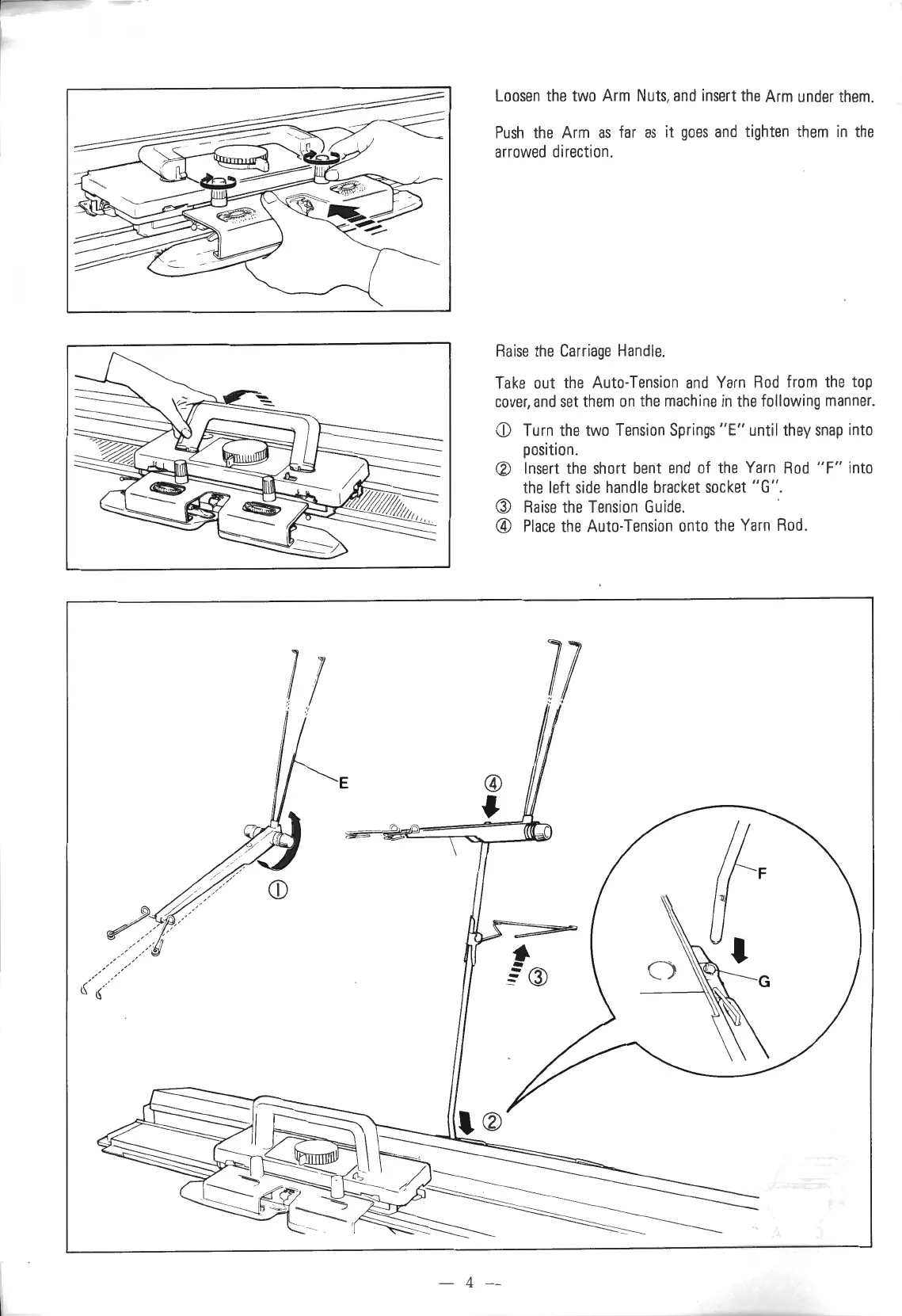

Loosen the two Arm Nuts, and insert the Arm under them.
Push the Arm as far as it goes and tighten them in the
arrowed direction.
Raise the Carriage Handle.
Take out the Auto-Tension and Yarn Rod from the top
cover, and set them on the machine in the following manner.
CD Turn the two Tension Springs "E" until they snap into
position.
® Insert the short bent end of the Yarn Rod "F" into
the left side handle bracket socket "G".
CJ) Raise the Tension Guide.
@ Place the Auto-Tension onto the Yarn Rod.
ll
- 4 -
