- 18 -

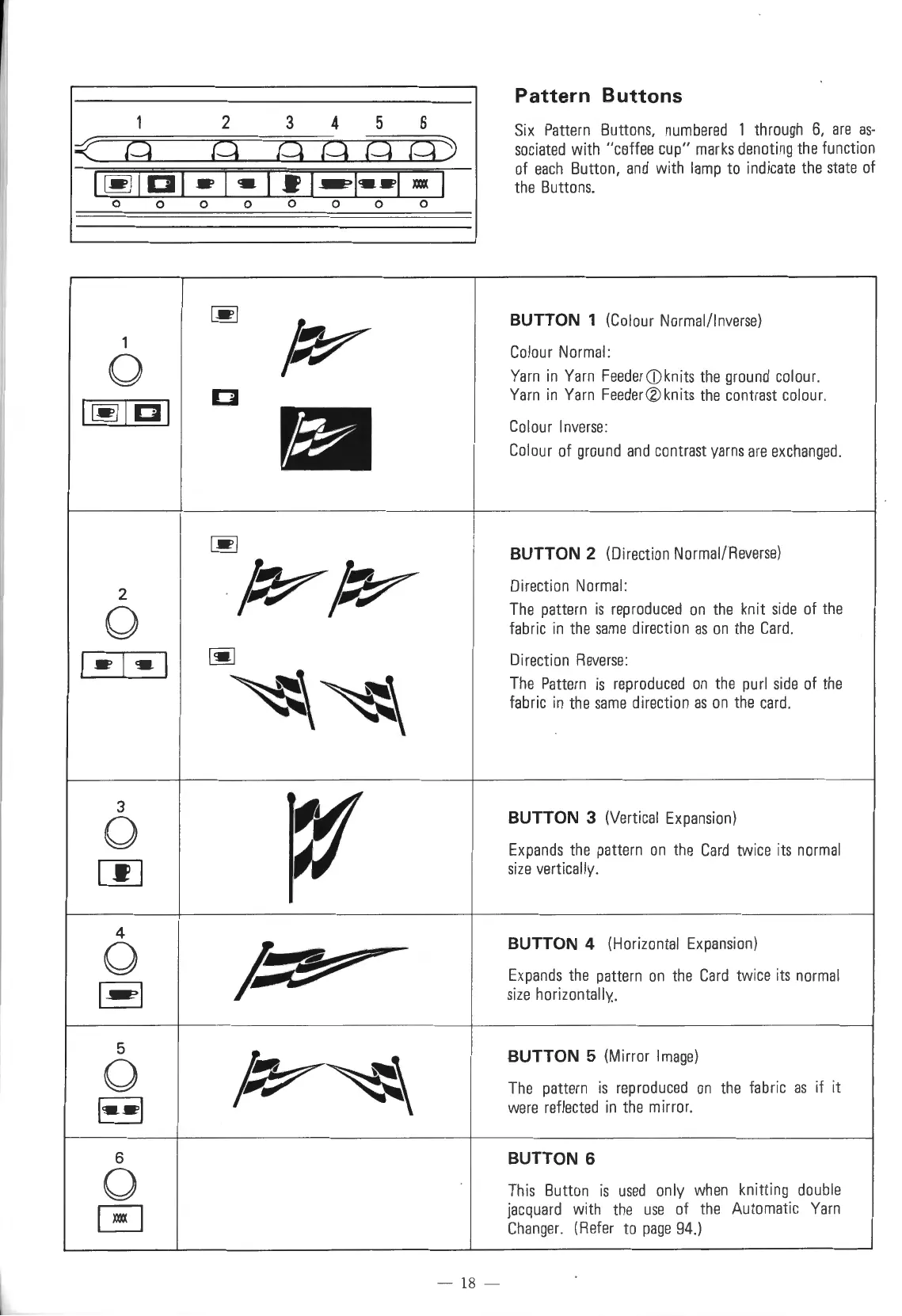

Pattern Buttons
Six Pattern Buttons, numbered 1 through 6, are as-
sociated with "ceffee cup" marks denoting the function
of
each Button, and with lamp to indicate the state of
the Buttons.
BUTTON 1 (Colour Normal/Inverse)
Colour Normal :
Yarn in Yarn Feeder (D knits the ground colour.
Yarn in Yarn Feeder0knits the contrast colour.
Colour Inverse:
Colour of ground and contrast yarns are exchanged .
BUTTON 2 (Direction Normal/Reverse)
Direction Normal :
The pattern is reproduced on the knit side of the
fabric in the same direction as on the Card .
Direction
Reverse :
The Pattern is reproduced on the purl side of the
fabric in the same direction as on the card.
BUTTON 3 (Vertical Expansion)
Expands the pattern on the Card twice its normal
size vertically.
BUTTON 4 (Horizontal Expansion)
Expands the pattern on the Card twice its normal
si ze horizontallY. .
BUTTON 5 (Mirror Image)
The pattern is reproduced on the fabric as if it
were reflected in the mirror.
BUTTON 6
This Button is used only when knitting double
jacquard with the use of the Automatic Yarn
Changer. (Refer to page 94.)
