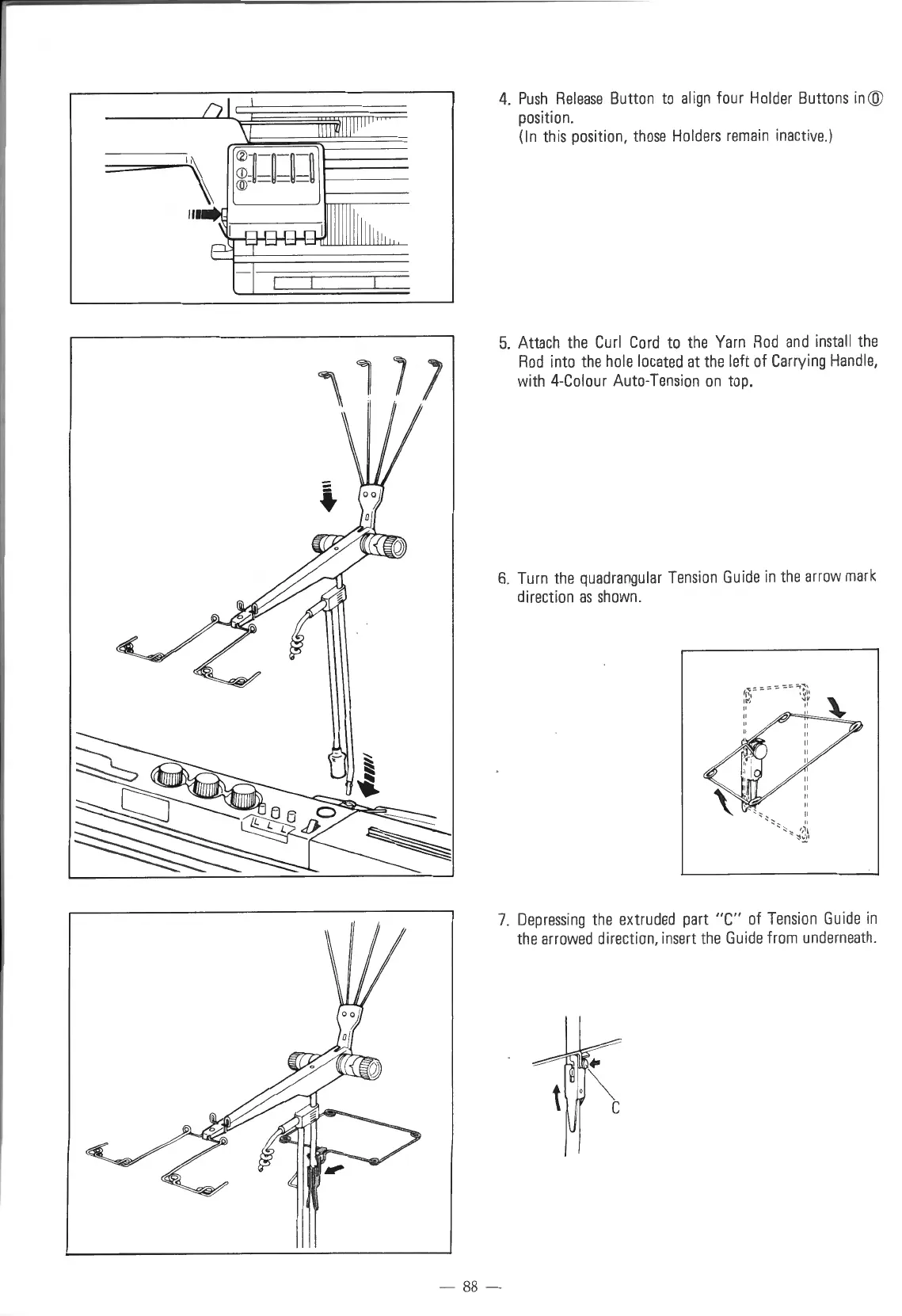

4. Push Release Button to align four Holder Buttons in@
position.
(In this position, those Holders remain inactive .)
5. Attach the Curl Cord to the Yarn Rod and install the
Rod into the hole located at the left of Carrying Handle,
with 4-Colour Auto-Tension on top.
6. Turn the quadrangular Tension Guide in the arrow mark
direction as shown .
ti -;.= ==~-:;.=~?til
t r' , ..,v
,,
"
7. Depressing the extruded part "C" of Tension Guide in
the arrowed direction, insert the Guide from underneath.
- 88 -
