Sintratec S1 - Page 25

Product description
Sintratec S1 BA_S1_en 1.1 25 / 76

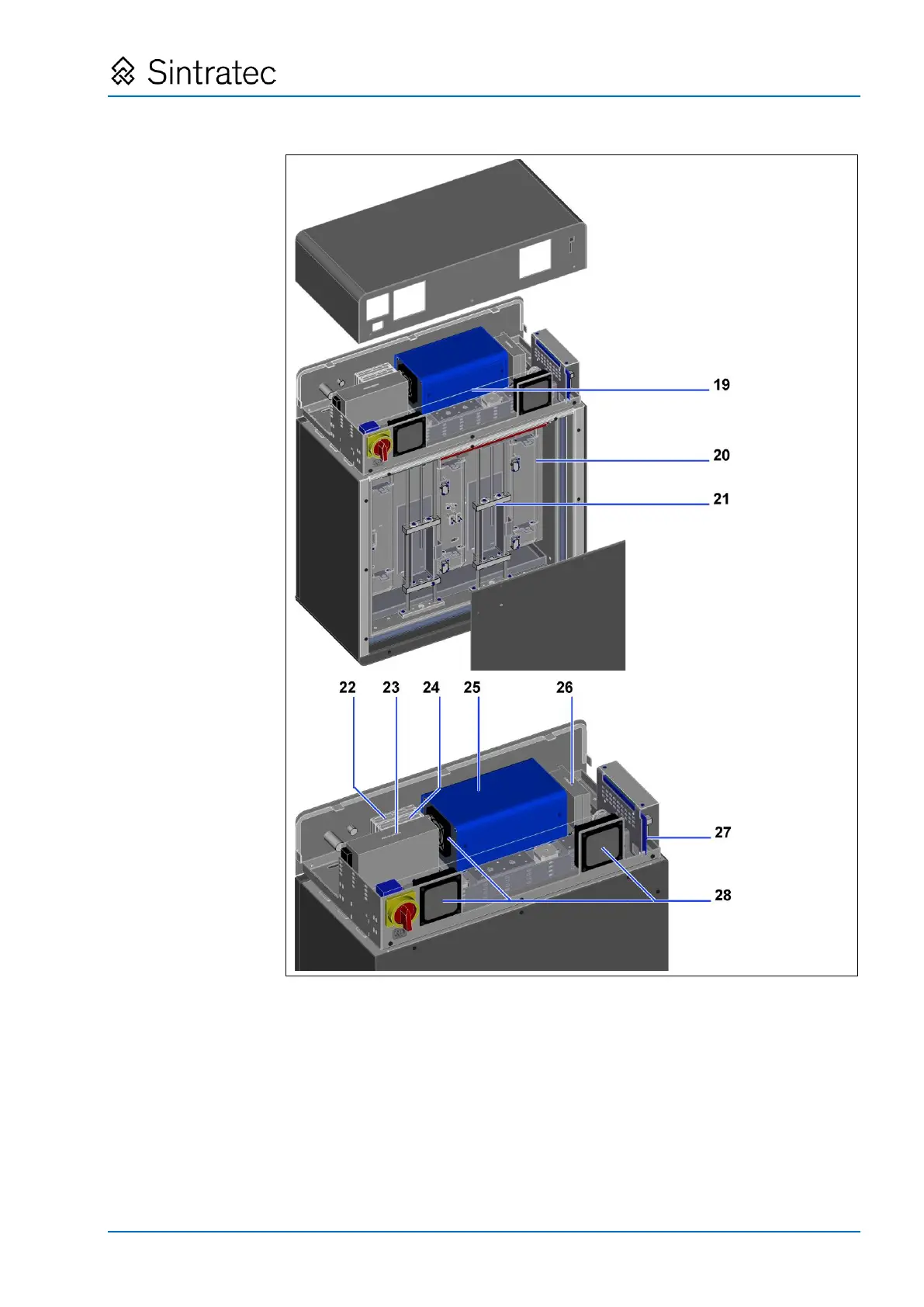

Fig.
8
: Electronics section and rear section (cover removed)
19 Drive unit for coater
20 IR heating elements (3 in total)
21 Drive units for platforms
22 Safety relay
23 Voltage transformer, 12 VDC
24 Voltage transformer, 24 VDC
25 Laser unit
26 Voltage transformer, 18 VDC
27 Control electronics
28 Fans (3 in total)
