Sirona C3 Plus - System Overview of the C3+

Sirona Dental Systems GmbH 4 Controls and functional elements
C3
+
4.1 System overview of the C3
+
59 06 404 D 3390
D 3390.201.01.18.02
21

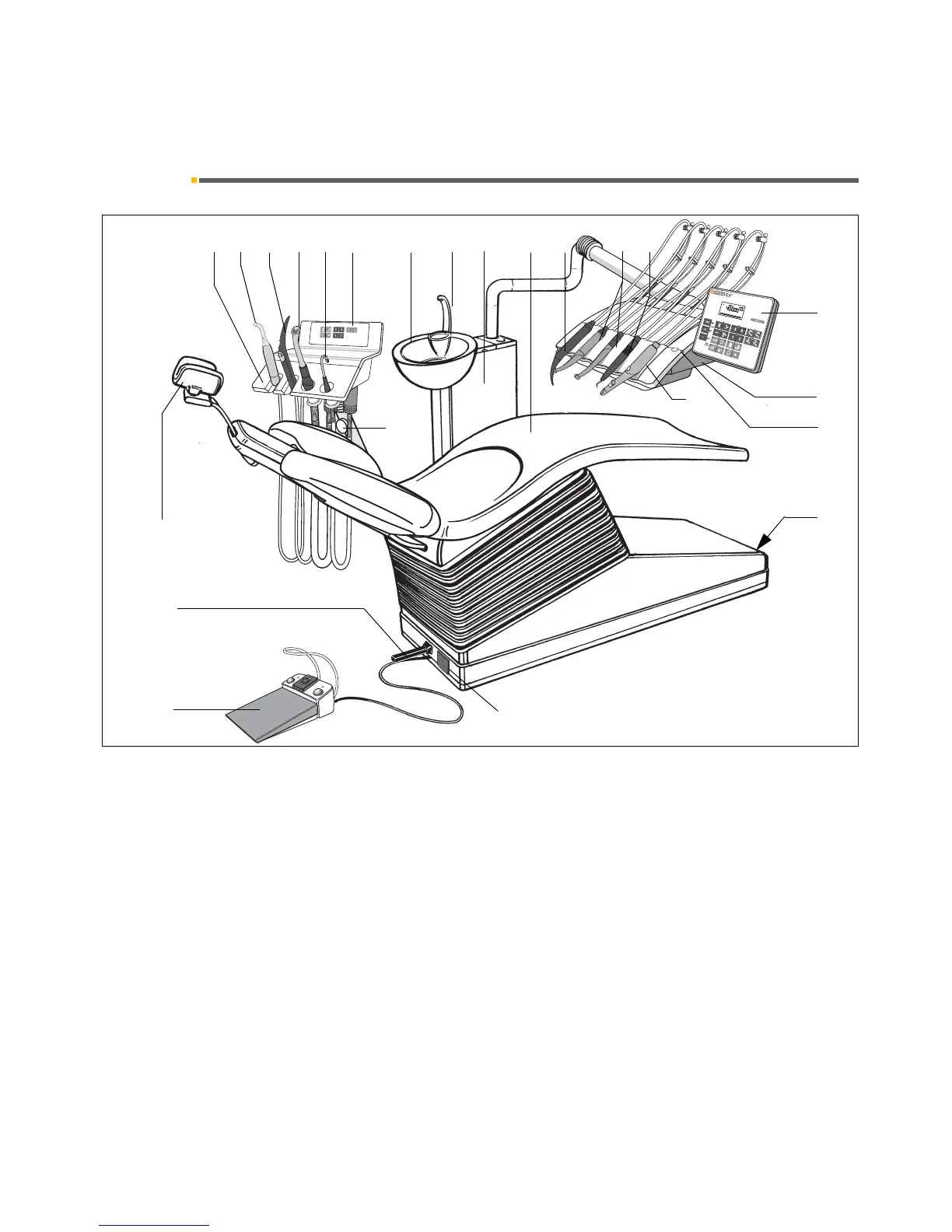

4 Controls and functional elements
4.1 System overview of the C3
+
S
0
1
2
3
4
5
6
8
7
9
10
11
12
13
14
19
18
20
22
15
16
21
17
23
1
Assistant element
2
Holder 1: Mini LED curing light or 3rd suction hose
or SIROCAM 3 / SIROCAM C
3
Holder 2: SPRAYVIT on the assistant element or
SIROCAM 3 / SIROCAM C
4
Holder 3: Suction handpiece
5
Holder 4: Saliva ejector
6
Control panel on the assistant element
7
Fixed or swiveling cuspidor
8
Tumbler filler
9
Water unit with disinfection system, automatic sep-
arator, amalgam rotor, wet suction system
10
Patient chair, option: folding armrest
11
Holder 1: SPRAYVIT on the dentist element
12
Holder 2 and 3: Electric motor / highspeed hand-
piece burr drives
13
Holder 4: 3. Electric motor / highspeed handpiece
burr drive or SIROSONIC L scaler
14
Holder 5: SIROSONIC L or SIROCAM 3 /
SIROCAM C
15
Control panel on the dentist element
16
Dentist element
17
Button for brake on the dentist element
18
Locking brake on the assistant element
19
Unit main switch
20
Manually adjustable headrest or
flat headrest or
motorized headrest or
MultiMotion headrest
21
4-way foot switch on the patient chair
22
Foot switch C
+
(with cable or wireless link)
23
Foot button for SIROCAM 3 / SIROCAM C
on the assistant element
