13 Water unit
13.1 Swiveling cuspidor (alternative equipment)

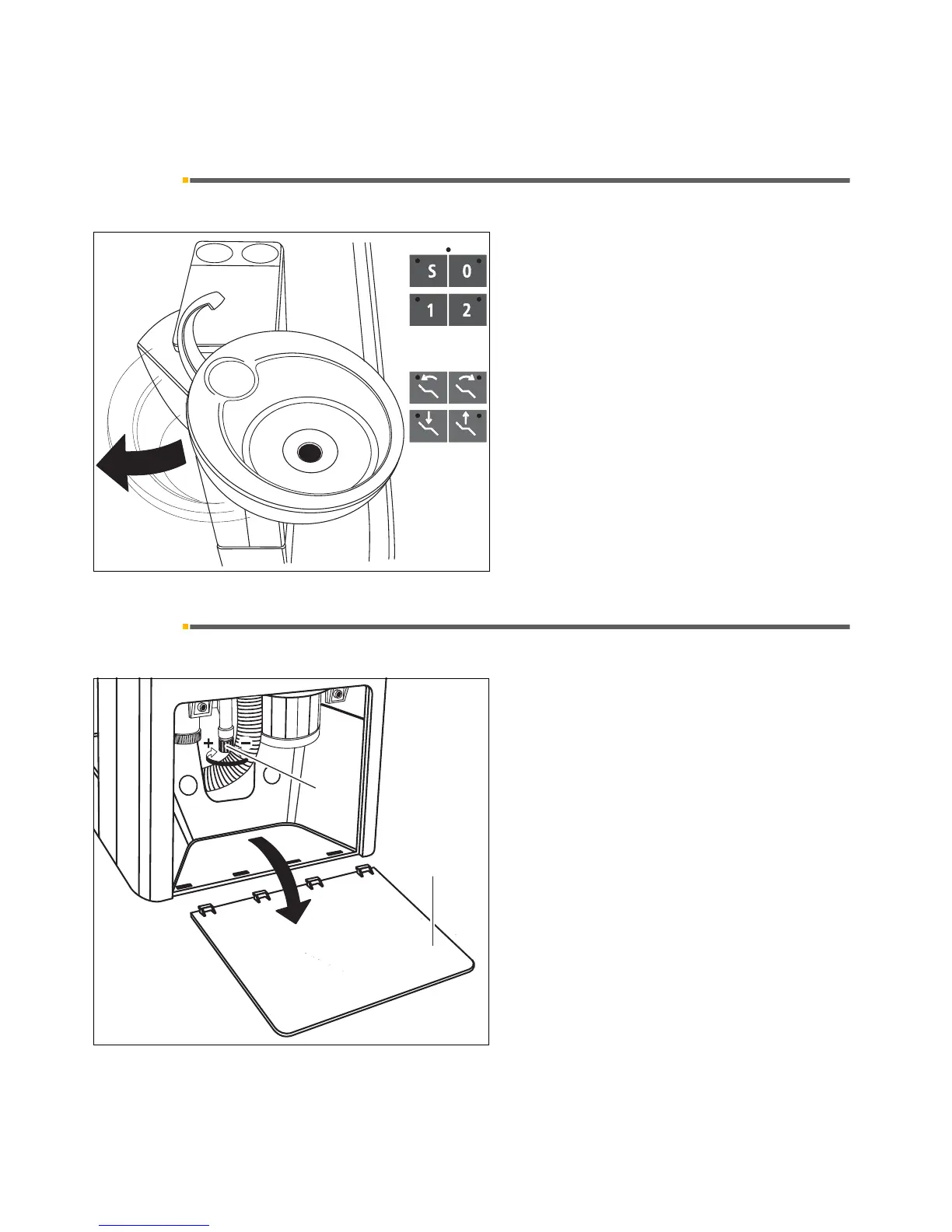

The cuspidor on the water unit can be swiveled manually
by approx. 110mm toward the patient chair.
Collision protection
If the cuspidor is swiveled toward the patient chair cer-
tain chair movements are locked. If an S, 0, 1, or 2 pro-
gram movement is started, the cuspidor returns to the
starting position first before the chair moves into the pro-
grammed position. When a key is pressed in order to
make individual adjustments to the chair, such as rais-
ing / lowering the height or tilting the backrest back-
ward or forward, again, the cuspidor swivels back first
and the chair moves once the corresponding key is
pressed.
You can make individual adjustments to the motorized
headrest even when the cuspidor is swiveled in.
If the cuspidor is swiveled in while the chair is moving,
the program is interrupted.This is indicated by a double
audible signal.
13.2 Adjusting the water amount for the cuspidor
• Open flap (1) at the base of water the unit.
• Adjust the amount of water with the valve (2).
