9.2 Positioning the dentist element

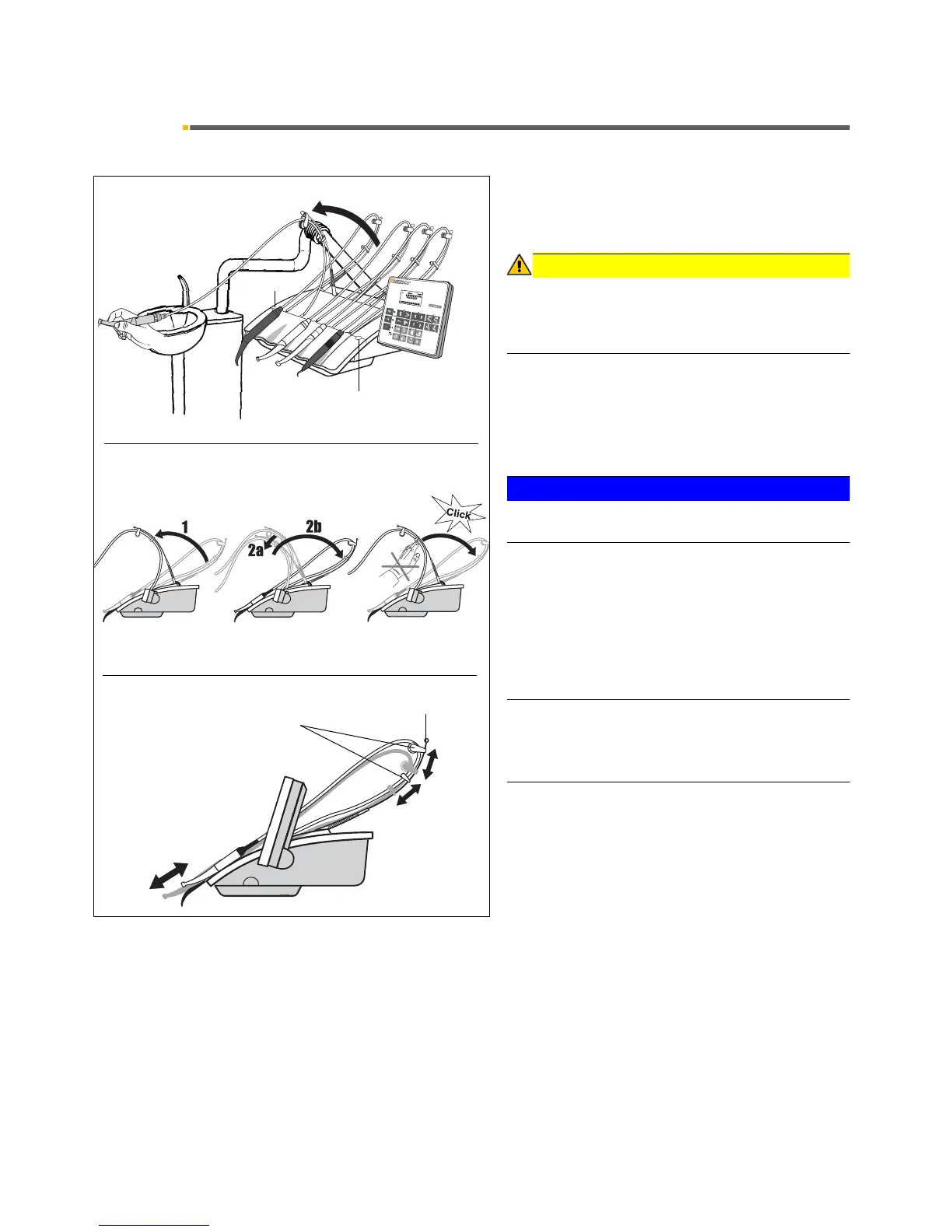

After the dental chair has reached the patient position,
move the dentist element to the desired treatment posi-
tion after releasing the brake by pressing one of the but-
tons (1).
CAUTION
Before starting the automatic chair movement to another
position (e.g. exit position or mouth rinsing position), you
must swivel the dentist element out of the way so that any
collision with the patient is excluded.
Swivel arm
The swivel arms of the instrument hoses snap into the
end position (1) (not with SPRAYVIT).
To unlock the arm, pull it to the front (2a) and then to the
back (2b).
NOTICE
Do not press the arms to the back while they are locked,
otherwise the locking mechanism may be destroyed!
The spring elements built into the swivel arms provide
optimum access to the patient.
The instrument picked up first is ready for use.
To start an instrument after picking it up, actuate the foot
switch.
IMPORTANT
The position of the instruments on the rack can be opti-
mized by shifting the guide rollers (2) on the swivel arms
(3).
1
1
2
3
right!
wrong!
