- Forbidden: Interface is forbidden from automatically joining the
VLAN via GVRP. For more information, see “Automatic VLAN
Registration” on page 3-143.
- None: Interface is not a member of the VLAN. Packets associated
with this VLAN will not be transmitted by the interface.
• Trunk Member – Indicates if a port is a member of a trunk. To add a
trunk to the selected VLAN, use the last table on the VLAN Static
Table page.
Web – Click VLAN, 802.1Q VLAN, Static Table. Select a VLAN ID from
the scroll-down list. Modify the VLAN name and status if required. Select
the membership type by marking the appropriate radio button in the list of
ports or trunks. Click Apply.

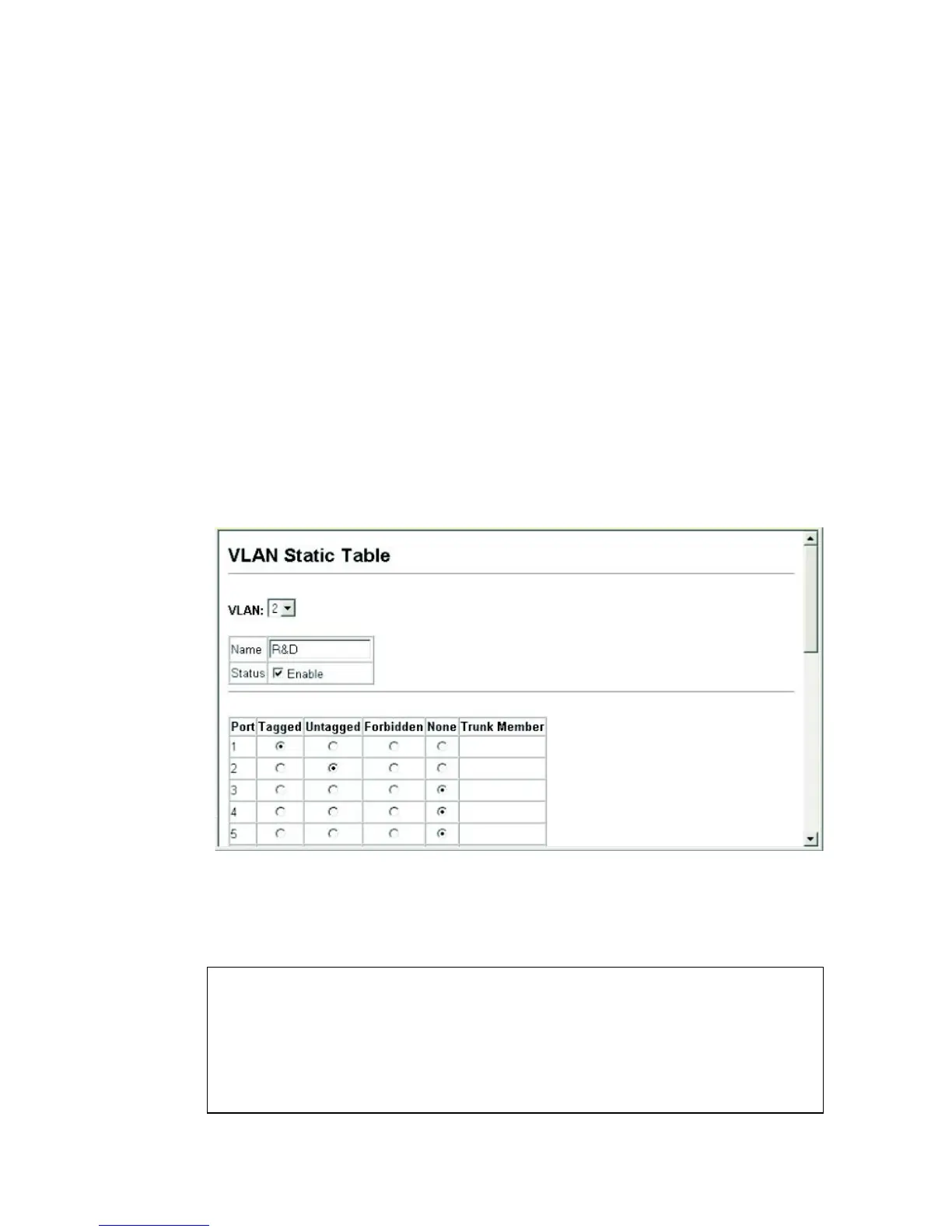

Figure 3-64 Configuring a VLAN Static Table
CLI – The following example adds tagged and untagged ports to
VLAN 2.
Console(config)#interface ethernet 1/1 4-144
Console(config-if)#switchport allowed vlan add 2 tagged 4-205
Console(config-if)#exit
Console(config)#interface ethernet 1/2
Console(config-if)#switchport allowed vlan add 2 untagged
Console(config-if)#exit
Console(config)#interface ethernet 1/13
Console(config-if)#switchport allowed vlan add 2 tagged
