Command Attributes
• Priority – CoS value. (Range: 0-7, where 7 is the highest priority)
• Traffic Class
14
– Output queue buffer. (Range: 0-3, where 3 is the
highest CoS priority queue)
Web – Click Priority, Traffic Classes. The current mapping of CoS values
to output queues is displayed. Assign priorities to the traffic classes (i.e.,
output queues), then click Apply.

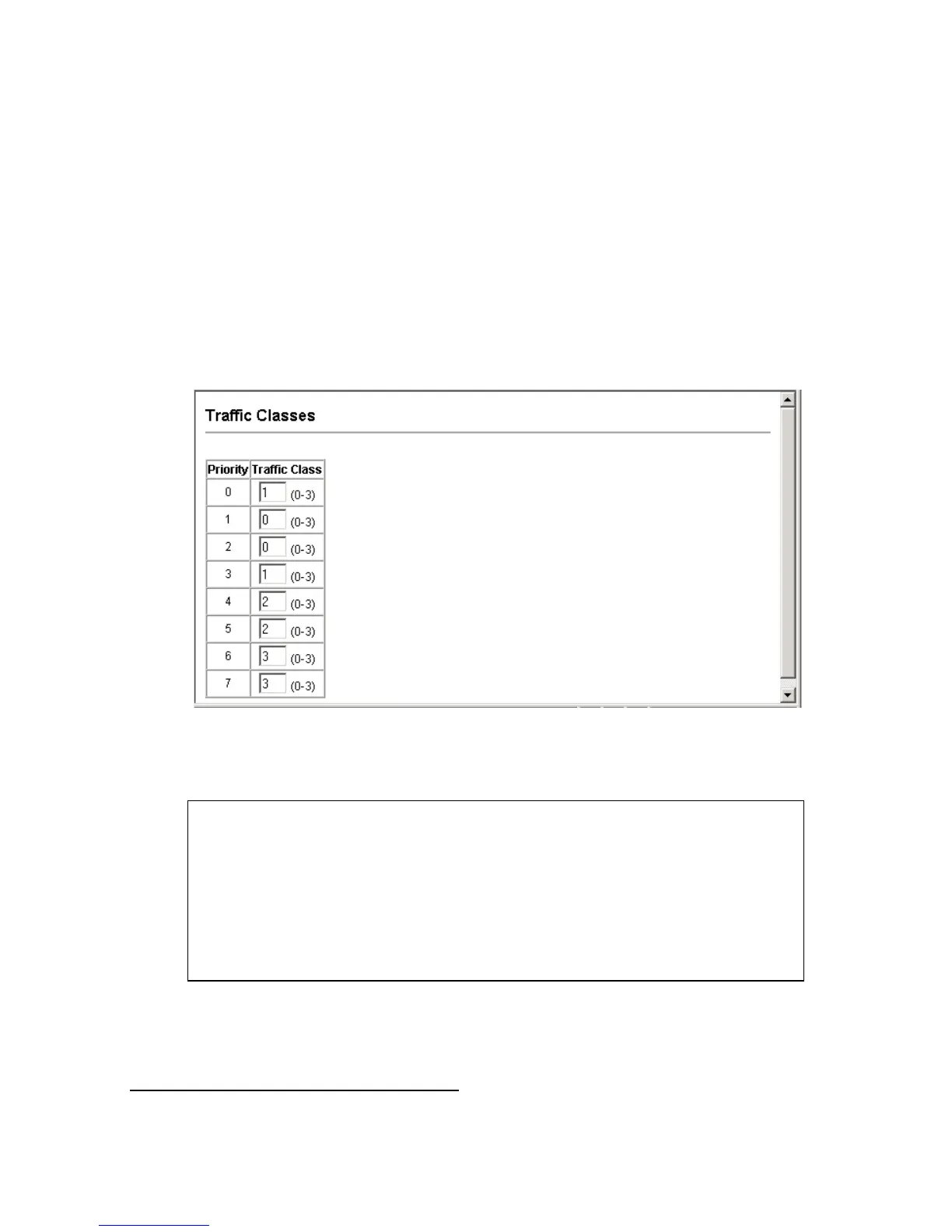

Figure 3-73 Traffic Classes
CLI – The following example shows how to change the CoS assignments.
Note: Mapping specific values for CoS priorities is implemented as an
interface configuration command, but any changes will apply to
the all interfaces on the switch.
14. CLI shows Queue ID.
Console(config)#interface ethernet 1/1 4-144
Console(config-if)#queue cos-map 0 0 4-226
Console(config-if)#queue cos-map 1 1
Console(config-if)#queue cos-map 2 2
Console(config-if)#end
Console#show queue cos-map ethernet 1/1 4-228
Information of Eth 1/1
CoS Value : 0 1 2 3 4 5 6 7
Priority Queue: 0 1 2 1 2 2 3 3
Console#
