Initial Configuration
4-8
4
3G
Enables a 3G/3.5G wide-area wireless cellular link on the WAN port using an
optional USB modem.
Note: To use this option you need to first connect a 3G/3.5G USB modem to the USB
port on the back of the unit and have registered an account with a cellular
operator.
The following example shows the WAN function enabled with 3G. An authenticated
3G connection displays the message “Authenticated successfully” beneath the PIN
code if the 3G Modem PIN code have been authenticated successfully.

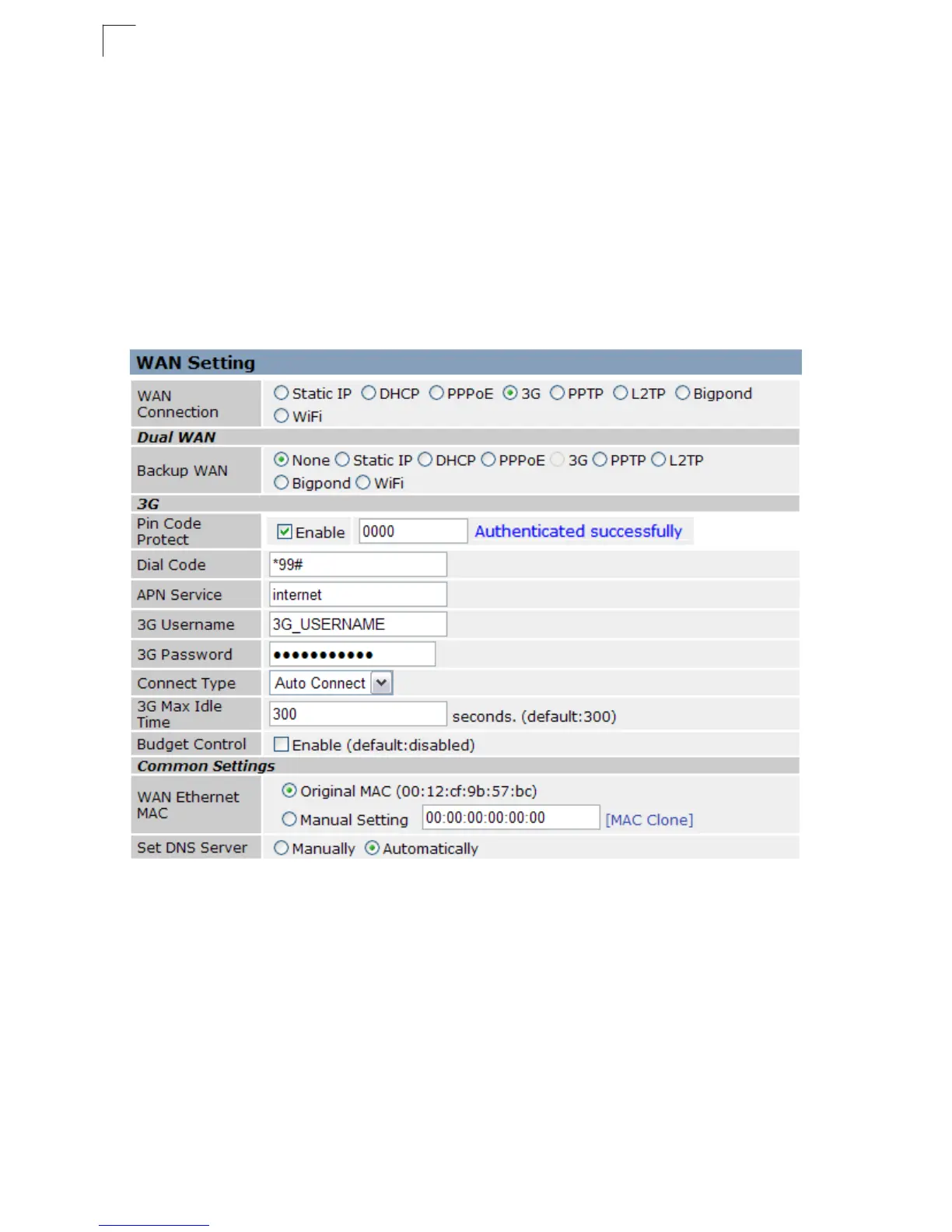

Figure 4-9. Setup Wizard - WAN 3G Authenticated
