Scanner Viewing and Saving Data
44

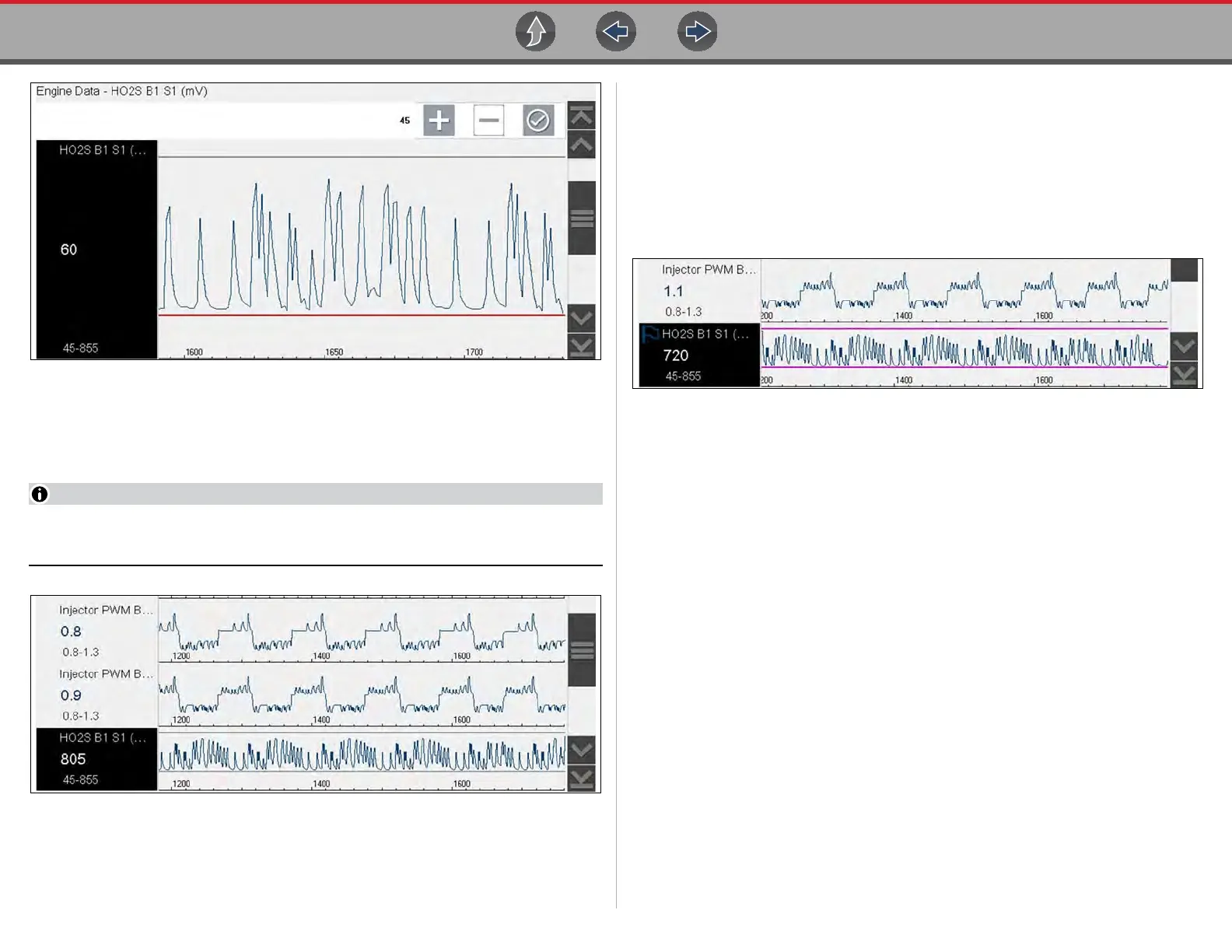

Figure 6-27 Trigger setup - lower limit
The display returns to the PID data view and the trigger points appear as horizontal
lines across the designated graph (Figure 6-28). Repeat this procedure to establish
trigger points for other parameters (up to three) if desired.
Only three parameters can have trigger levels set at one time, but only one of
the conditions needs to be satisfied for triggering to occur.
Figure 6-28 Trigger set (not armed)
z Arming triggers:
1. Select the Trigger icon.
2. Select Arm Triggers.
The trigger point lines change color to indicate an armed condition
(Figure 6-29).
All set PID triggers are armed simultaneously (if more that one is set). Once armed
it remains armed until you clear it or the trigger is activated.
Figure 6-29 Trigger armed
