Scope Multimeter Operation and Controls

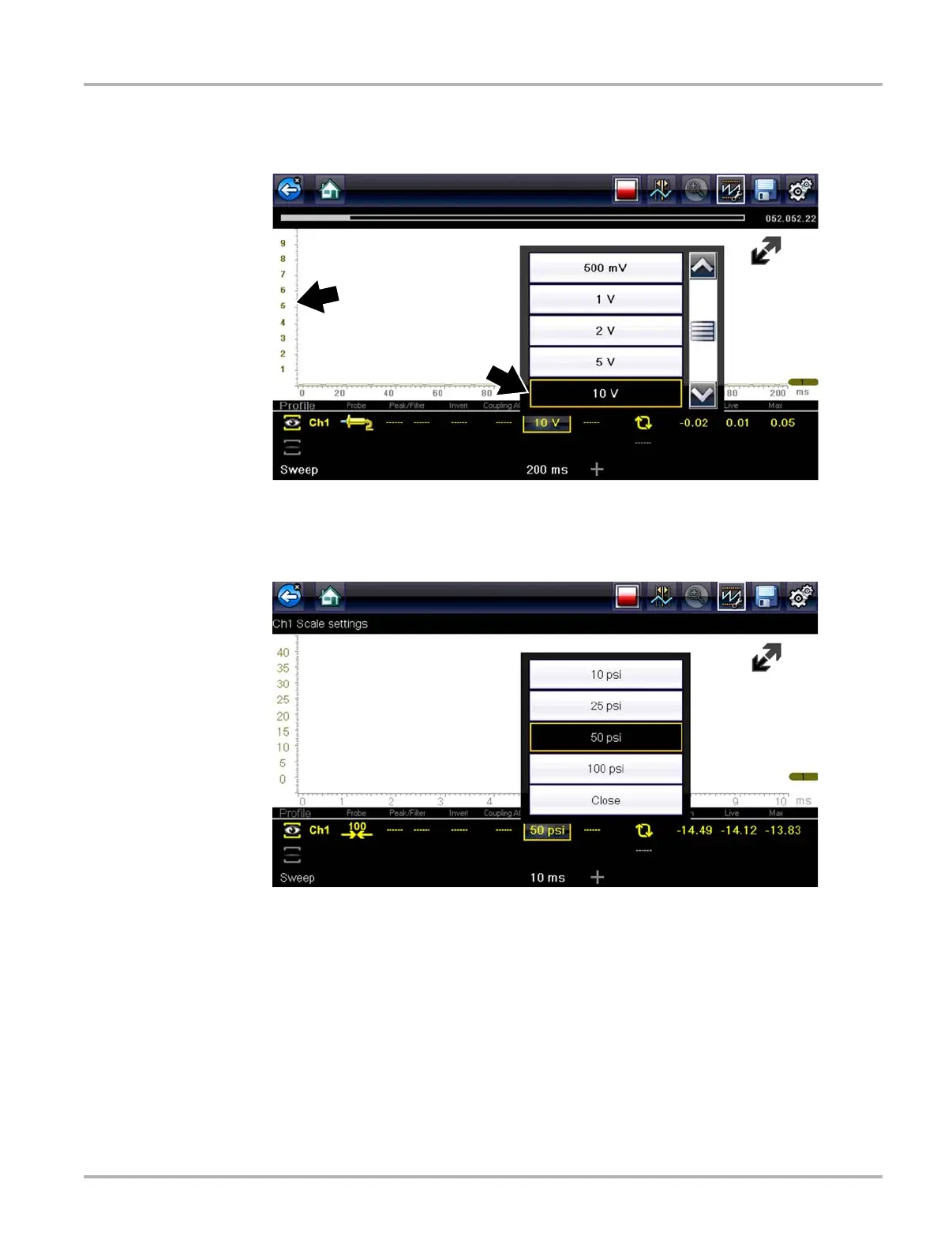

Example: Selecting 10V, changes the vertical scale to a 10V volt scale. The scale is “always”

divided by 10, therefore each division is incremented by 1V.

Figure 8-15

Example: Selecting 50 psi displays a 50 psi scale that is divided by 10, therefore each division

is incremented by 5 psi.

Figure 8-16
