84
Scope Multimeter Operation and Controls
Sweep (Horizontal or Time scale adjustment)
The horizontal scale (X-axis) represents time, and the unit of measurement it is being measured
in. The horizontal scale is “always” divided into10 major divisions, how these divisions are defined,
sets the scale of measurement. The value displayed in the sweep Scale icon indicates the active
sweep setting.
i The sweep setting applies to all channels and cannot be set independently per channel.

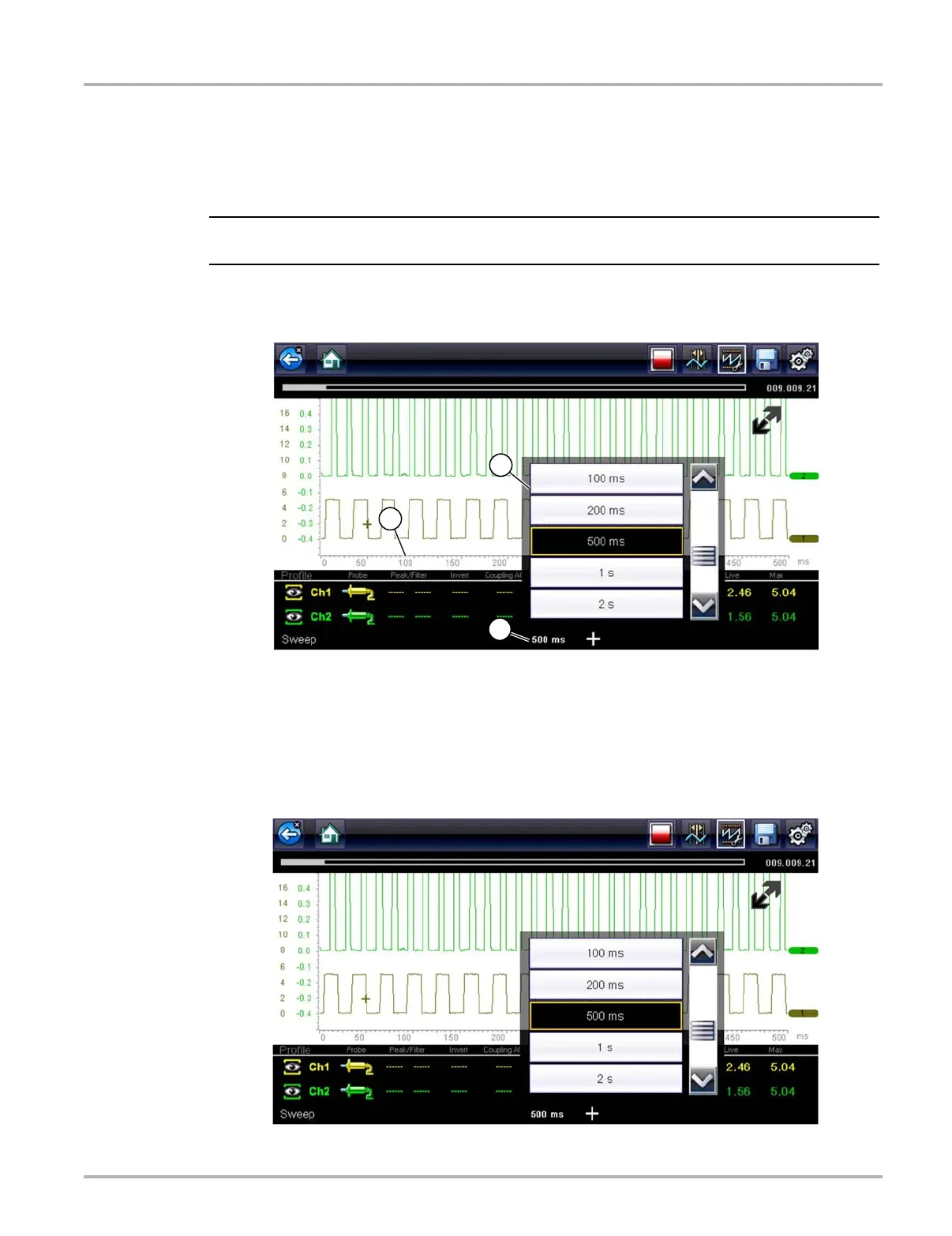

To adjust the sweep scale unit of measurement value, select the Sweep Scale icon to open the
sweep scale menu. Select a value then press the N/X button, to exit the menu.
1— Sweep Scale
2— Sweep Scale Menu
3— Sweep Scale Icon
Figure 8-17
Example: Selecting 500ms, changes the sweep scale to a 500ms scale. The scale is “always”
divided by 10, therefore each division is incremented by 50ms.
Figure 8-18
