D712/710 User Manual Setting up the Phone
Setting up the phone

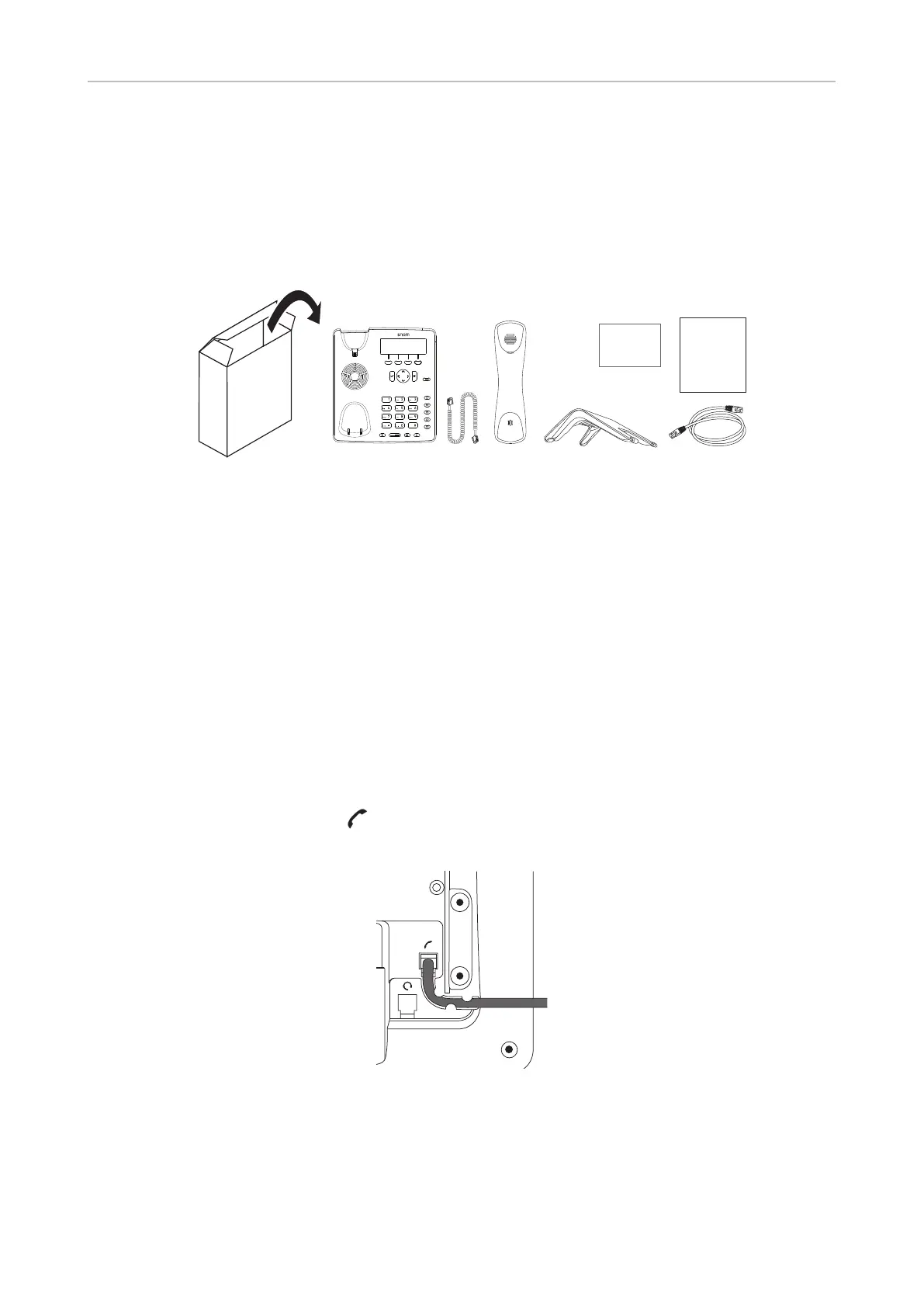

Delivery Content
GNU
General Public
License
Quick Installation
Guide
◦ Base phone unit
◦ Footstand
◦ Handset
◦ Handset cord
◦ Ethernet cable
◦ Quick Installation Guide, GNU GPL
Attaching and detaching the footstand
The footstand can be attached at two dierent angles: 28° and 46°.
Note: Before attaching the footstand to the phone, plug the long end of the handset cord
into the connector labelled "
" on the back of the phone and place the cord in the cable
guide.
1. Place the top of the grooves on the footstand (Fig. 1) below the slideguides on the back of the
phone (Fig. 2). For the upright position, the short "legs" of the footstand must be attached to the
phone; for the more horizontal position, use the long ones.
2. Push the footstand upwards onto the slideguides until they lock in place (Fig. 3).
