Appendix 3 - Wall mounting
Not included in the delivery are the two screws (diameter of head between 6 and 9 mm, diameter of body
max. 4.5 mm) and two screw anchors/molly bolts/wall plugs appropriate for your type of wall.

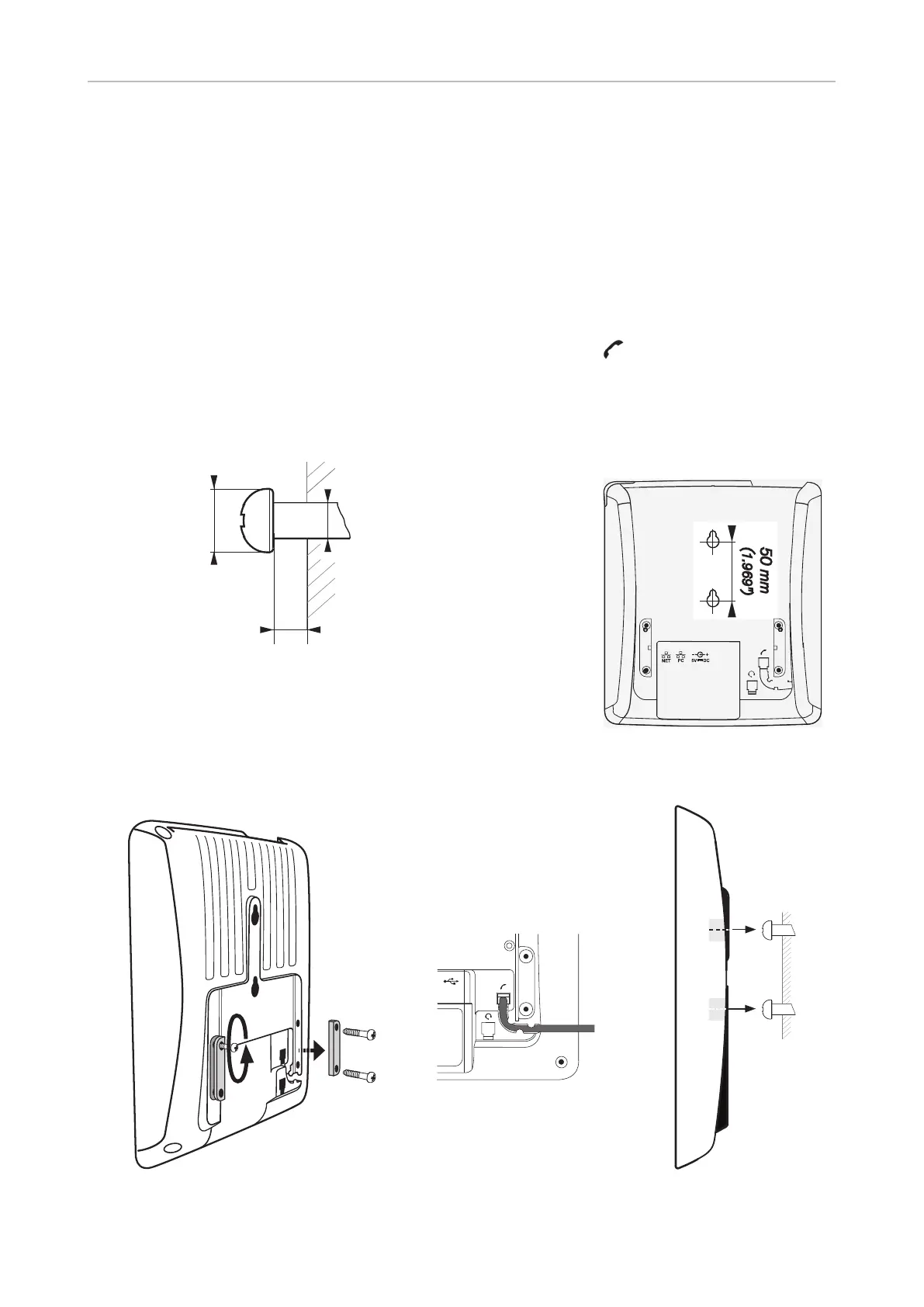

1. Anchor the screws in the wall, using the measurements given in Fig. 1 and Fig. 2.
2. Unscrew the slide guides for the footstand from the back of the phone (Fig. 3).
3. Plug the long end of the handset cord into the connector labelled "
" on the back of the phone and
place the cord in the cable guide (Fig. 4).
4. Hang the phone on the screws by placing the holes on the back of the phone over them (Fig. 5).
Fig. 2Fig. 1
Distance to wall
Abstand zur Wand
Distance au mur
Distanza dalla parete
Distancia a la pared
Distância à parede
∼ 4 mm (0.157")
ø max: 9 mm
(0.354")
ø min: 6 mm
(0.236")
ø max
4,5 mm
(0.177")
50 mm (1.969")
