Software Bisque Paramount 6 Series - HA Rear Panel Components

Paramount GEM User Guide
61 | P a g e
HA Rear Panel Components

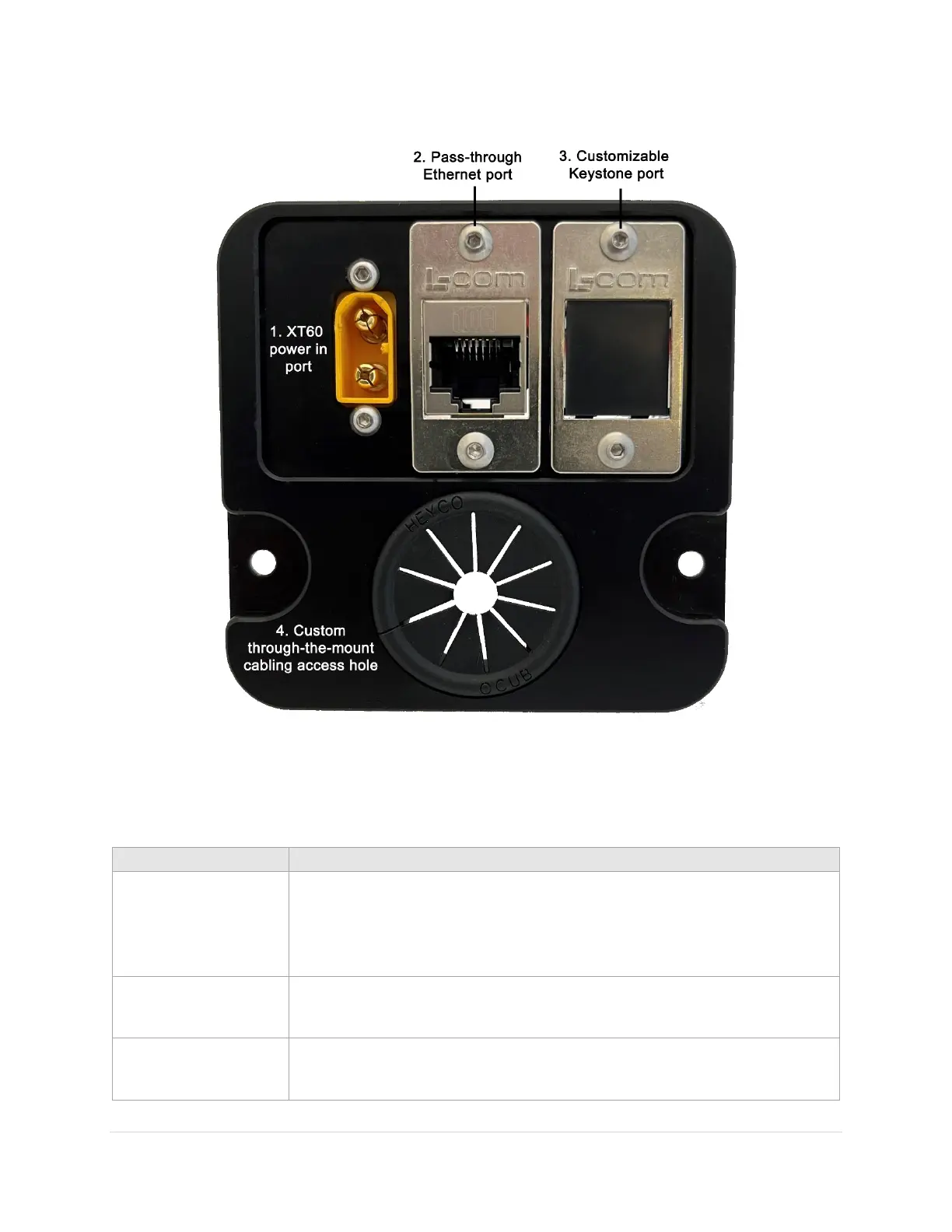

Figure 25: The Paramount MX HA rear panel components.
Table 1: The through-the-mount panel components.
Number
Description
1
When connected to an external power source, the yellow male XT60 plug
supplies power to the three female XT60 connectors on the Instrument
Panel. The power supply unit must have a female XT60 connector for the
output.
2
The RJ-45 port accepts a CAT6 cable to provide pass-through Ethernet to the
Instrument Panel’s Ethernet port.
3
This is a customizable L-COM Keystone connector.
