Installing the Inverter
SolarEdge Installation Guide – MAN-01-00002-1.6
46
5 From the inside of the inverter, grab the AC and DC wires extending from
the AC/DC Safety Switch conduits. Make sure that they are inside the
inverter, so that they can later be connected in subsequent steps to the
inverter, as shown below:

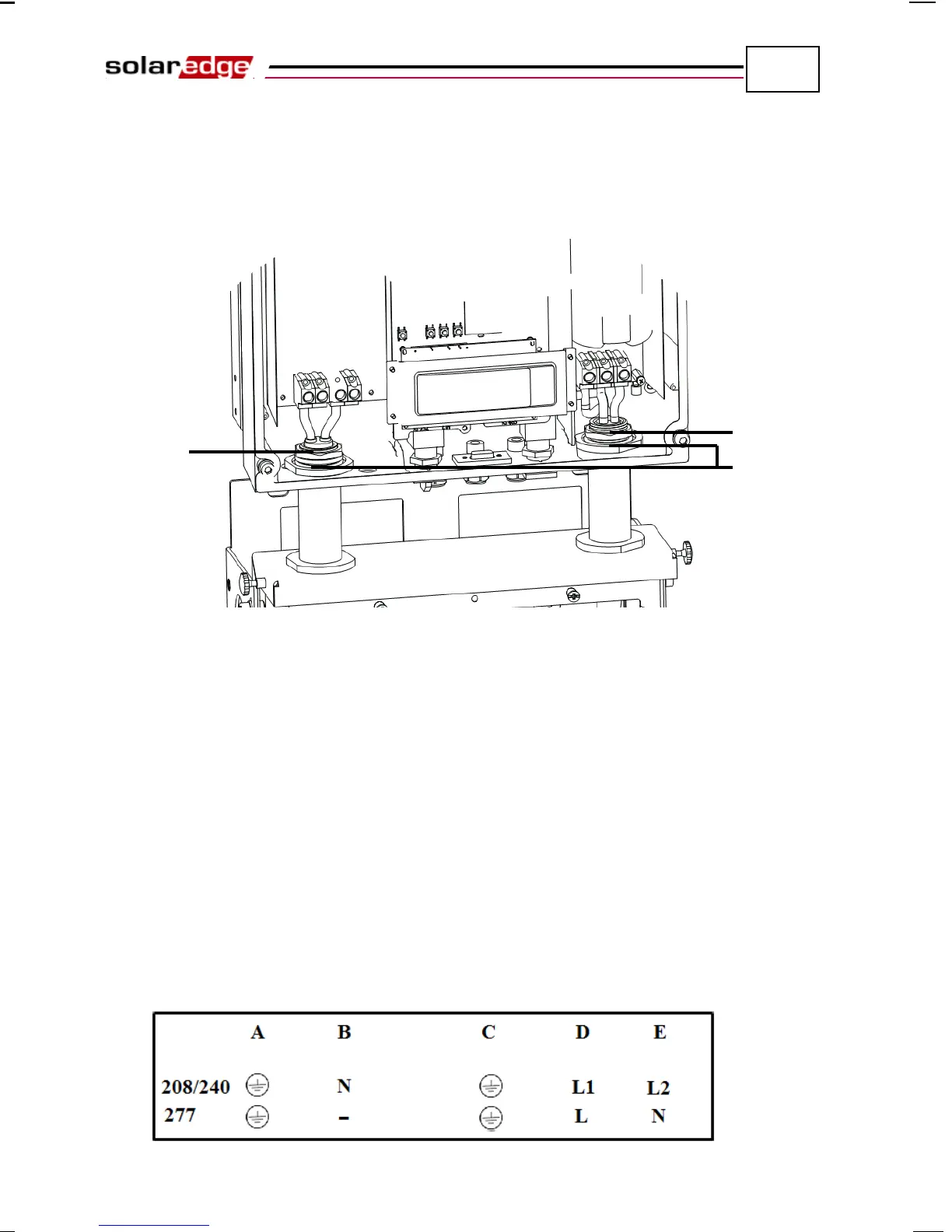

Figure 22: Inserting the AC and DC Conduits
6 Secure the two conduit nuts in order to hold both DC and AC conduits in
place.
7 Screw the bracket to the wall or pole.
Connecting the Switch to the Inverter
► To connect the AC/DC Safety Switch to the inverter:
1 Connect the DC, as follows:
• Connect the DC+ of the inverter input to the red wire.
• Connect the DC- of the inverter input to the black wire.
2 Connect the AC, as follows:
B-E refer to the inverter AC terminal block labeling shown in Figure 23.
Figure 23: Inverter AC Terminal Block Label
