Installing the Inverter
SolarEdge Installation Guide – MAN-01-00002-1.6
47
• Connect the white wire to B in the inverter.
• Connect the green/yellow wire to C in the inverter.
• Connect the red wire to D in the inverter.
• Connect the black wire to E in the inverter.
3 Tighten the screws of each wire terminal according to the following torque.
The tightening moment is 1.2-1.5 Nm (0.88-1.1 pound-foot).
4 Verify that there are no wire strands outside each terminal connector and that
the unused ports of the terminals are tightened.
5 Close the inverter’s cover, as described in the Closing the Cover section on
page 42.
Connecting the Switch to the External DC and AC Wires
Opening the Switch Cover
► To open the AC/DC Safety Switch:
1 Move the switch to the OFF position.
2 Loosen the three screws on the front cover of the AC/DC Safety Switch, as
shown below:

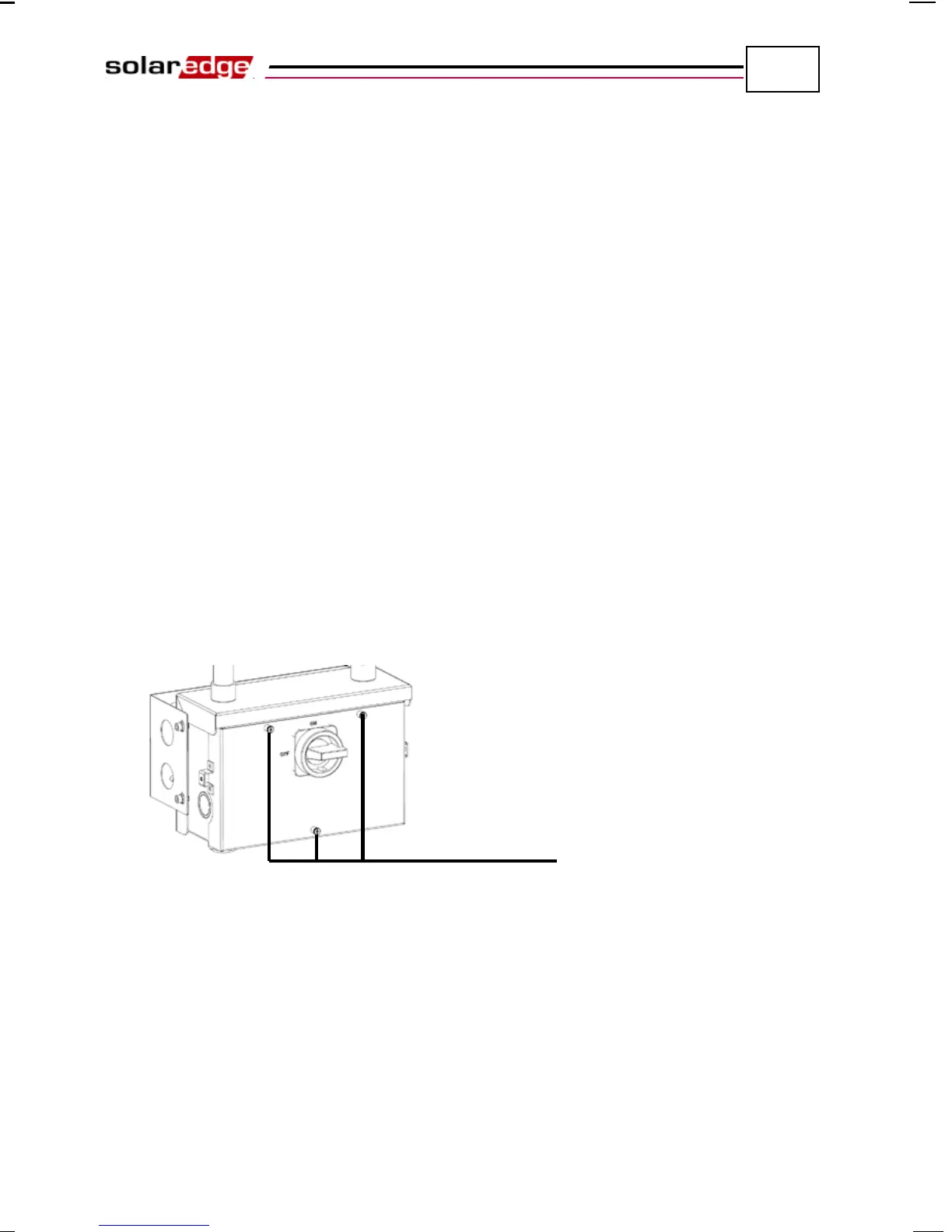

Figure 24: Opening the AC/DC Safety Switch Cover
