Clock synchronization with
external devices — Connection examples
66
Bridging clock signals to a di󱐯erent
connector from an external device acting as
the clock master

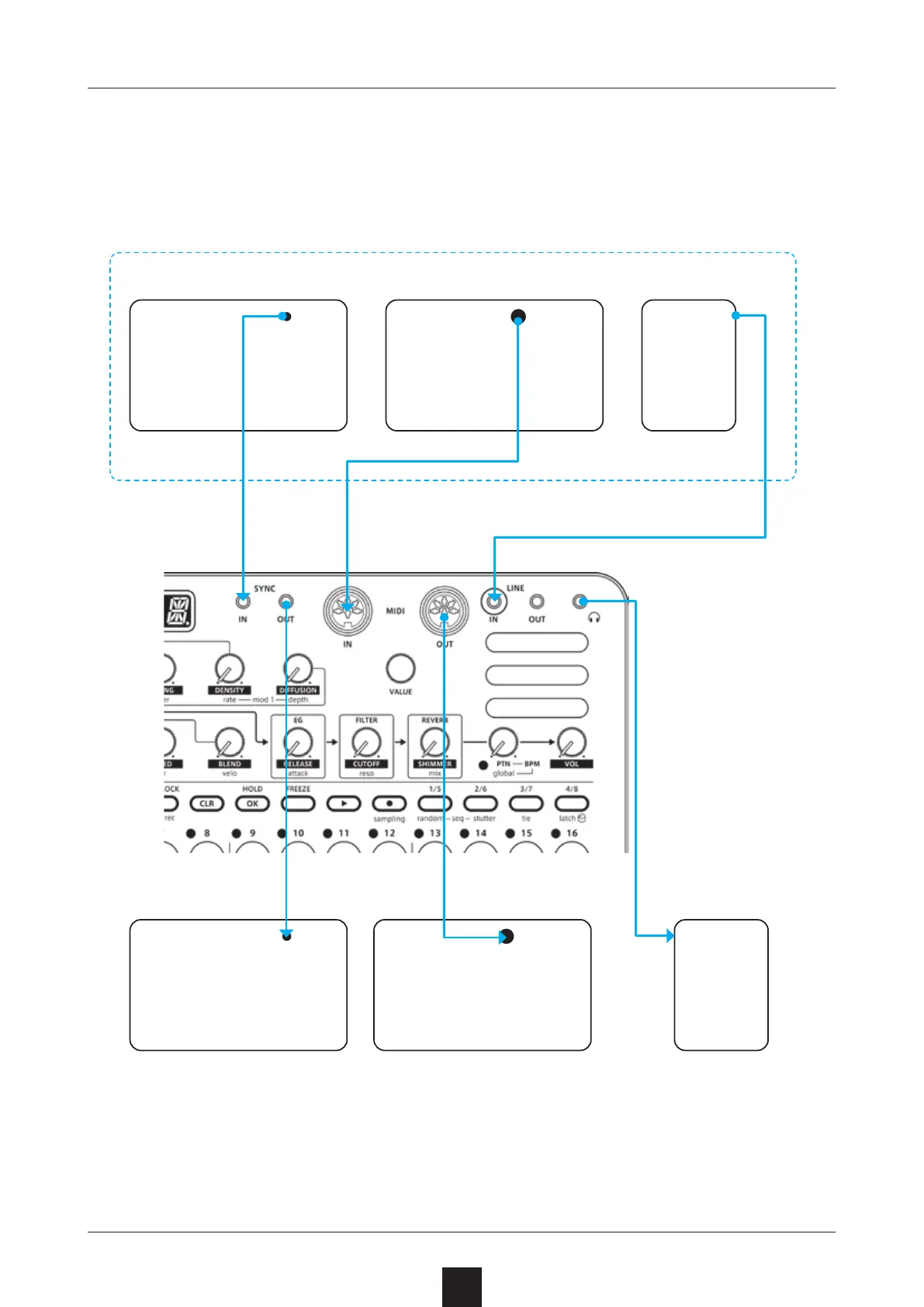

Using the bridging function, it is possible to synchronize devices with
di󱐯erent connectors. For example, a Pocket Operator acting as a clock
master can be used to synchronize a Volca or MIDI device connected to
the LIVEN.
SYNC OUT
SYNC IN
Volca series
Volca series
SRC set to
SYNC
oror
SRC set to
MIDI
PO series
PO series
A.OUT set to ON
( → P.62)
MIDI device
MIDI device
MIDI OUT
MIDI IN
Make only one device the clock master
OUTPUT
INPUT
TX.CK set to ON
( → P.68)
SRC set to
LN.IN
