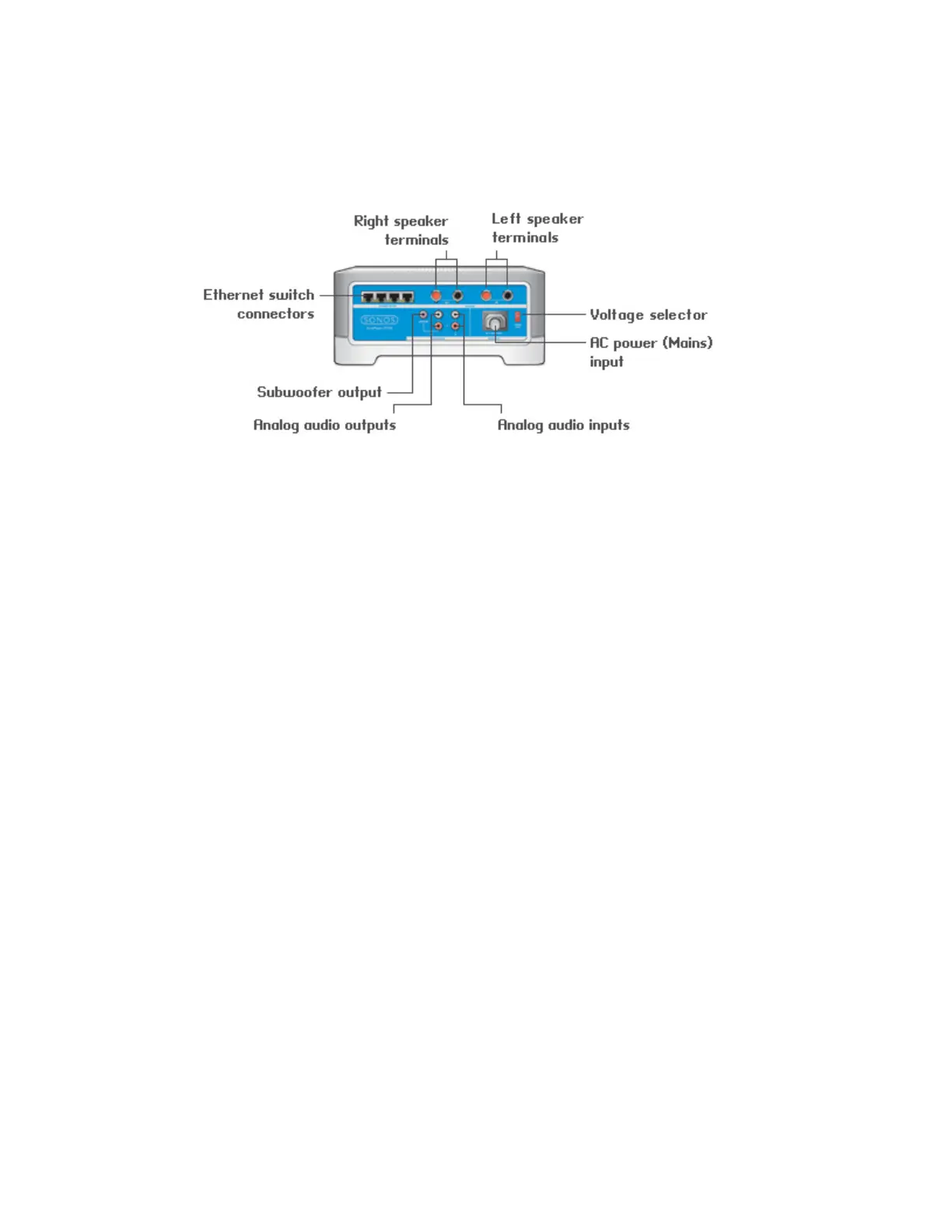

ZonePlayer 100 Back
Ethernet switch connectors (4) Use Category 5 Ethernet cable to connect to a router, computer, or additional network
device such as a network-attached storage (NAS) device.
LED indicators:
• Green (link connection)
• Flashing Yellow (network activity)
Right speaker terminals Use high-quality speaker wire to connect the right speaker to the ZonePlayer 100.
Left speaker terminals Use high-quality speaker wire to connect the left speaker to the ZonePlayer 100.
Voltage select AC 115/230 V
Select the voltage setting that is appropriate for your country.
AC power (mains) input Use the supplied power cord to connect to a power outlet.
Analog audio out
(fixed/variable)
Use a standard RCA audio cable to connect the Sonos component’s analog audio outputs
to the audio inputs on a separate audio component, such as an amplifier or your home
theater receiver.
Analog audio in Use a standard RCA audio cable to connect the audio outputs from a separate audio
component such as a CD player, to the Sonos component’s analog audio inputs.
Subwoofer output
Note: If you disconnect your subwoofer, make sure to
also disconnect the subwoofer’s cable from the
ZonePlayer output.
Connect a powered subwoofer to this output using a standard RCA cable. The system will
detect when a cable is connected to the subwoofer output and adjust the crossover
frequency automatically.
