Product Guide
3-2
2. Click Group.

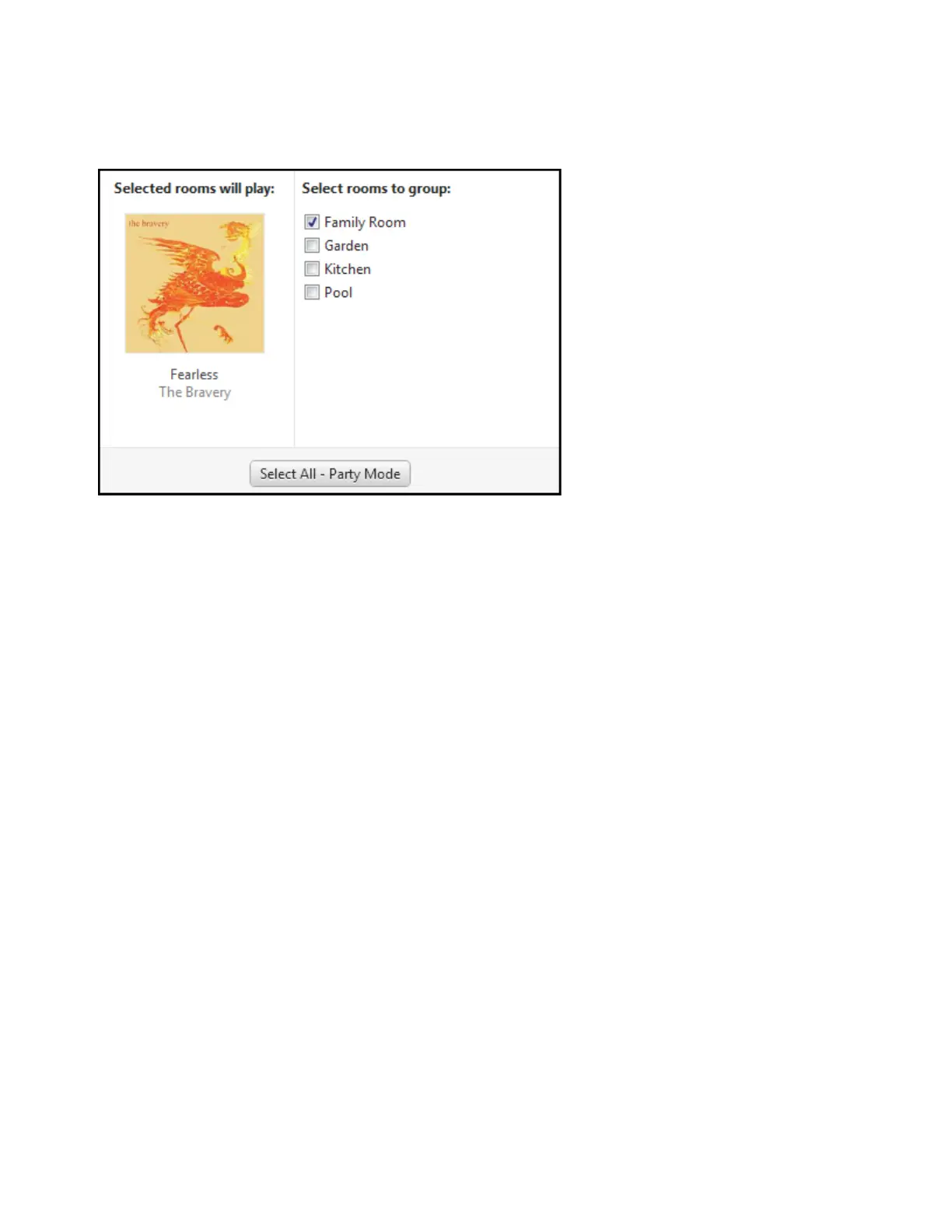

3. Select the rooms you would like to group, and then click Done.
If you want to join all the rooms in your house to this music queue, click Select All. All of your Sonos components will
then play the same music in synchrony until you remove rooms from the group.
Ungrouping Rooms
1. From the ROOMS pane, select the group you want to change.
2. Click Group.
3. Clear the checkbox for the room(s) you want to remove from the group. If you want to remove all of the rooms in the
group, click Unselect All.
4. Click Done.
The room that’s removed from the group stops playing music - the other rooms in the group continue unaffected.

Table of Contents

Other manuals for Sonos CONNECT:AMP

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Sonos CONNECT:AMP and is the answer not in the manual?

Sonos CONNECT:AMP Specifications

General IconGeneral
Audio decodersDolby Digital
Amplifier classD
Frequency range22 - 20000 Hz
RMS rated power110 W
Built-in crossoverYes
Crossover frequency80 Hz
Audio output channels2.1 channels
Peak power per channel55 W
Signal-to-Noise Ratio (SNR)- dB
Total Harmonic Distortion (THD)0.02 %
PurposeHome
MaterialAluminum
Product colorWhite
Connectivity technologyWired
Audio (L/R) out2
Headphone outputs1
Headphone connectivity3.5 mm
Speakers connectivity typeBanana connector/Binding posts
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 40 °C
AC input voltage110-240 V
AC input frequency50 - 60 Hz
Weight and Dimensions IconWeight and Dimensions
Depth207 mm
Width185 mm
Height89 mm
Weight2300 g
