Sony DCR-PC1 - AV Jack Burst Level Check; AV Jack y Level Check

5-39

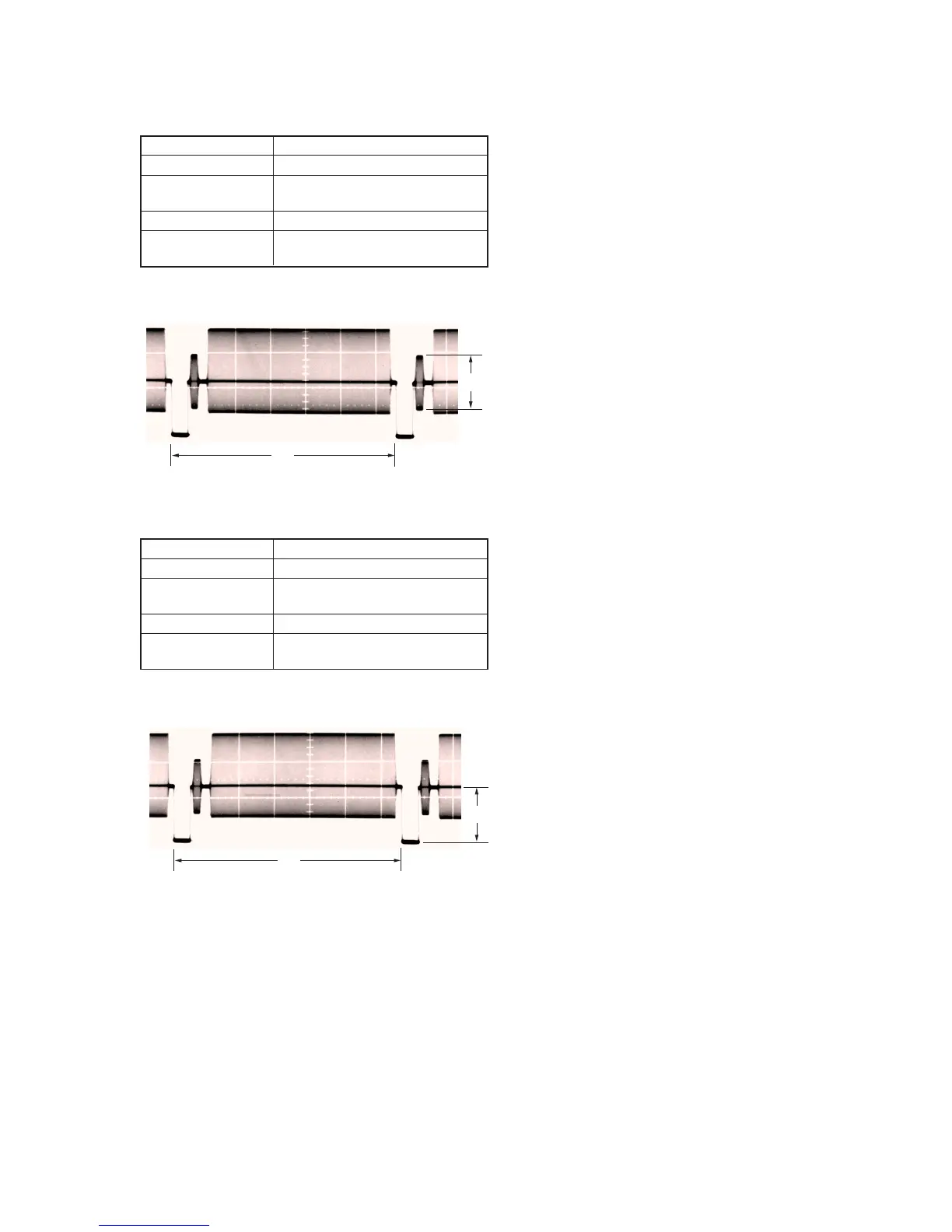

3. AV Jack Burst Level Check
Mode VTR stop
Signal No signal
Measurement Point AUDIO/VIDEO jack (terminated in
75 Ω)
Measuring Instrument Oscilloscope
Specified Value A = 286 ± 18 mV (NTSC)
A = 300 ± 18 mV (PAL)
Checking Method:
1) Check that the burst signal level (A) has the specified value.
Fig. 5-3-6
4. AV Jack Y Level Check
Mode VTR stop
Signal No signal
Measurement Point AUDIO/VIDEO jack (75 Ω
terminated)
Measuring Instrument Oscilloscope
Specified Value A = 286 ± 18 mV (NTSC)
A = 300 ± 18 mV (PAL)
Checking Method:
1) Check that the SYNC level (A) is the specified value.
Fig. 5-3-7
H
A
H
A
