Sony DCR-PC1 - Drum;Capstan Drive, Rec;Pb Head Amp; Printed Wiring Board

DCR-PC1/PC1E
MR-40
DRUM/CAPSTAN DRIVE,
REC/PB HEAD AMP
DD-111
(DC/DC CONVERTER)
TB-37
(BATTERY TERMINAL)
VC-210
CAMERA PROCESS,
MECHA SP CONTROL,
BLOCKING,
CAMERA HI CONTROL,
AUDIO PROCESSOR,
EVF DRIVER,
DC/DC CONVERTER,
LINE OUT AMP
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
MR-40 BOARD
C1804 D-8
C1805 B-8
C1806 C-7
C1807 C-7
C1809 C-7
C1833 C-8
C1834 C-7
C1837 C-7
C1840 C-8
C1844 C-8
C1845 D-8
C1846 C-7
C1850 C-7
C1852 D-7
C1854 D-7
C1856 D-8
C1860 E-8
C1866 D-8
C1869 E-8
C1875 E-7
C1878 D-8
C1881 D-8
C1883 C-7
C1884 D-7
C1885 D-8
C1886 D-8
C1887 E-8
C1888 D-8
C1889 D-8
C1890 C-8
C1901 B-8
C1903 A-8
C1904 C-7
C1909 A-7
C1910 A-7
C1914 B-7
C1915 E-8
C1933 A-8
C2500 B-1
C2501 F-2
C2507 B-1
C2546 B-2
C2550 C-2
C2551 B-2
C2552 B-2
C2553 C-1
C2554 D-2
C2555 C-1
C2556 C-1
C2557 C-1
C2558 C-1
C2559 C-1
C2561 B-1
C2562 C-1
C2563 C-1
C2564 D-1
C2565 B-1
C2566 B-2
C2567 E-2
C2569 D-2
C2570 B-1
C2572 A-2
C2573 A-8
C2574 A-1
C2575 A-1
C2576 D-2
C2577 D-2
C2579 D-2
C2582 A-2
C2583 A-8
C2585 A-1
C2586 A-1
C2587 A-1
C2588 A-1
C2589 A-1
C2590 B-2
C2591 B-2
CN1810 E-2
CN2501 A-1
CN2502 B-2
CN2503 C-2
CN2504 F-7
CN2505 A-2
CN2506 E-5
CN2507 A-7
D2500 B-7
D2501 F-1
D2502 E-2
IC1814 C-8
IC1900 B-8
IC2500 F-2
IC2503 C-1
IC2504 B-1
IC2505 D-1
L1803 E-8
L1804 D-8
L1805 B-8
L1808 E-8
L1811 E-7
L2511 B-1
L2512 A-8
L2513 C-7
Q1801 C-7
Q2505 B-7
Q2506 B-7
Q2507 B-7
Q2508 D-1
Q2509 D-1
R1826 C-7
R1827 B-8
R1828 D-7
R1829 C-7
R1831 C-7
R1833 C-7
R1834 D-8
R1835 D-8
R1836 D-8
R1837 D-8
R1838 D-7
R1839 D-8
R1840 D-7
R1843 E-7
R1848 D-7
R1852 D-8
R1855 D-7
R1857 E-7
R1859 E-7
R1869 D-8
R1870 D-8
R1871 D-8
R1872 C-8
R1874 D-7
R1909 A-8
R1938 A-8
R1939 C-7
R1940 B-7
R1941 B-7
R1942 A-8
R1943 A-8
R1944 A-8
R1945 B-8
R1946 A-7
R1947 D-8
R1949 B-8
R1950 B-8
R1951 B-8
R1952 B-8
R2500 F-2
R2501 F-1
R2502 C-2
R2505 B-2
R2506 B-1
R2507 B-2
R2508 B-2
R2509 C-1
R2510 C-1
R2511 B-1
R2517 B-1
R2530 B-2
R2531 A-8
R2532 A-8
R2533 A-8
R2534 A-1
R2546 C-2
R2547 C-2
R2549 B-2
R2550 C-2
R2551 C-2
R2552 D-1
R2553 C-1
R2554 C-1
R2556 B-1
R2557 B-1
R2558 C-1
R2559 B-1
R2560 B-1
R2564 E-1
R2565 D-1
R2566 C-1
R2567 C-1
R2568 D-1
R2569 A-2
R2570 A-2
R2571 B-1
R2572 B-2
R2573 B-7
R2574 D-2
R2575 D-2
R2576 D-2
R2577 D-2
R2578 B-7
R2579 A-2
R2580 E-2
R2581 E-2
R2582 C-7
R2583 C-7
R2585 A-2
R2586 A-2
R2587 A-1
R2588 C-1
R2599 A-8
R2600 D-2
R2601 D-1
R2602 D-2
R2603 D-2
R2604 C-1
R2605 D-2

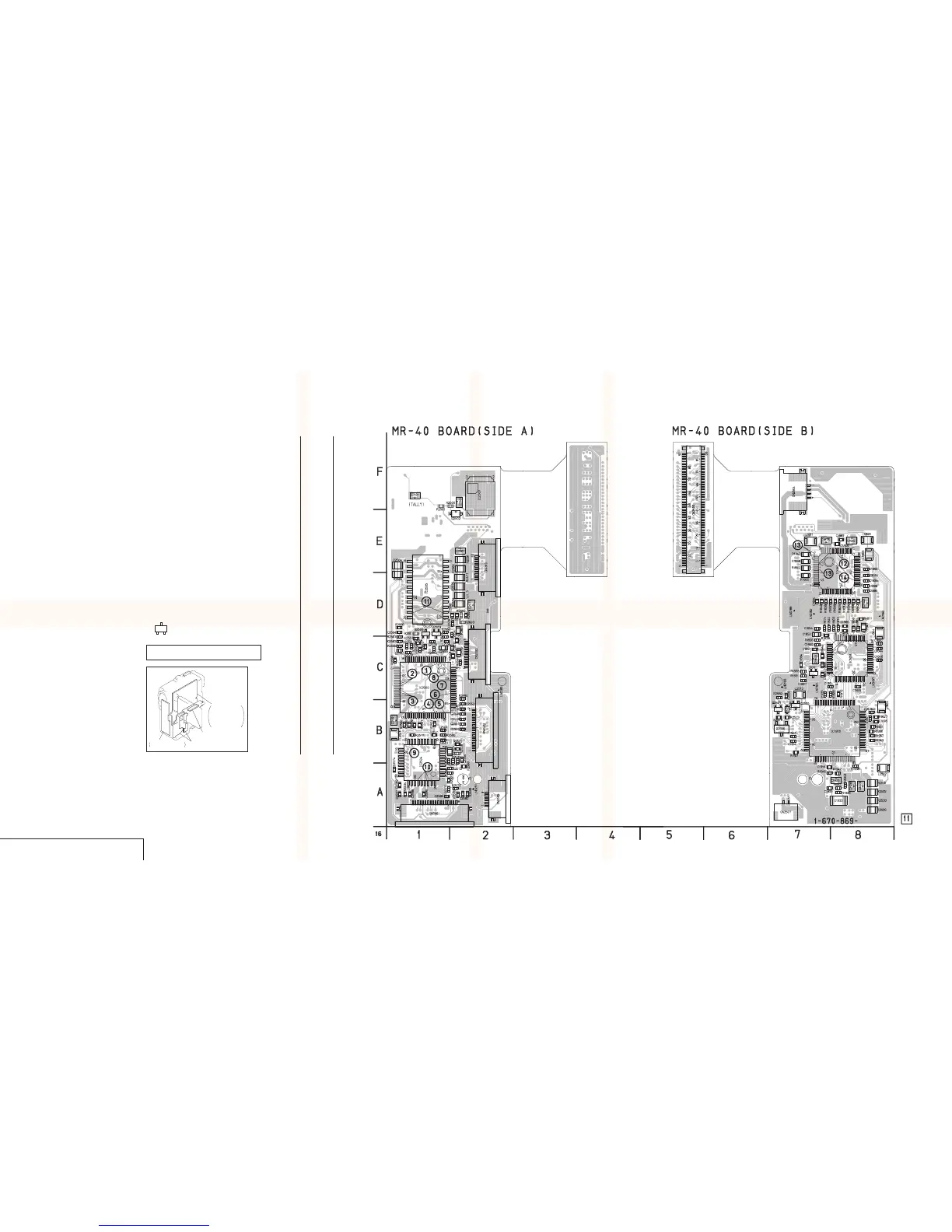

MR-40 (DRUM/CAPSTAN DRIVE, REC/PB HEAD AMP) PRINTED WIRING BOARD
— Ref. No. MR-40 Board; 10,000 Series —
4-48 4-49 4-50
DRUM/CAPSTAN DRIVE, REC/PB HEAD AMP
MR-40
