5-2. MECHANISM SECTION
ADJUSTMENT
On the mechanism section adjustment
For details of mechanism section adjustments, checks, and
replacement of mechanism parts, refer to the separate volume
“DV MECHANICAL ADJUSTMENT MANUAL
D Mechanism ” and “MECHANICAL ADJUSTMENT MANUAL
D200 Mechanism ”.
2-1. HOW TO ENTER RECORD MODE WITHOUT
CASSETTE
1) Connect the adjustment remote commander to the LANC jack.
2) Turn the HOLD switch of the adjustment remote commander
to the ON position.
3) Close the cassette compartment without the cassette.
4) Select page: 3, address: 01, set data: 0C, and press the PAUSE
button of the adjustment remote commander.
(The mechanism enters the record mode automatically.)
Note: The function buttons become inoperable.
5) To quit the record mode, select page: 3, address: 01, set data:
00, and press the PAUSE button of the adjustment remote
commander. (Whenever you want to quit the record mode, be
sure to quit following this procedure.)
2-2. HOW TO ENTER PLAYBACK MODE
WITHOUT CASSETTE
1) Connect the adjustment remote commander to the LANC jack.
2) Turn the HOLD switch of the adjustment remote commander
to the ON position.
3) Close the cassette compartment without the cassette.
4) Select page: 3, address: 01, set data: 0B, and press the PAUSE
button of the adjustment remote commander.
(The mechanism enters the playback mode automatically.)
Note: The function buttons become inoperable.
5) To quit the playback mode, select page: 3, address: 01, set data:
00, and press the PAUSE button of the adjustment remote
commander. (Whenever you want to quit the playback mode,
be sure to quit following this procedure.)
2-3. TAPE PATH ADJUSTMENT
1. Preparation for Adjustment
1) Clean the tape running side (tape guide, drum, capstan shaft,
pinch roller, etc.).
2) Connect the adjustment remote commander to the LANC jack.
3) Turn the HOLD switch of the adjustment remote commander
to the ON position.
4) Connect an oscilloscope to VC-210 board CN2904 via the CPC-
6 flexible jig (J-6082-370-A) and CPC-6 terminal board jig (J-
6082-371-A).
Channel 1: VC-210 board, CN2904 Pin @º (Note)
External trigger: VC-210 board, CN2904 Pin !¶
Note: Connect a 75 Ω resistor between pins @º of CN2904
and !ª (GND).
75 Ω resistor (Parts code: 1-247-804-11)
5) Playback the alignment tape for tracking. (XH2-1)
6) Select page: 3, address: 33, and set data: 08.
7) Select page: 3, address: 26, and set data: 31.
8) Check that the oscilloscope RF waveform is flat at the entrance
and exit.
If not flat, adjust according to the separate volume “DV
MECHANICAL ADJUSTMENT MANUAL
D Mechanism ” and “ MECHANICAL ADJUSTMENT
MANUAL
D200 Mechanism ”.
CN2904 of VC-210 board
2. Procedure after Operations
1) Connect the adjustment remote commander to the LANC jack
and set the HOLD switch to the ON position.
2) Select page: 3, address: 26, and set data: 00.
3) Select page: 3, address: 33, and set data: 00.

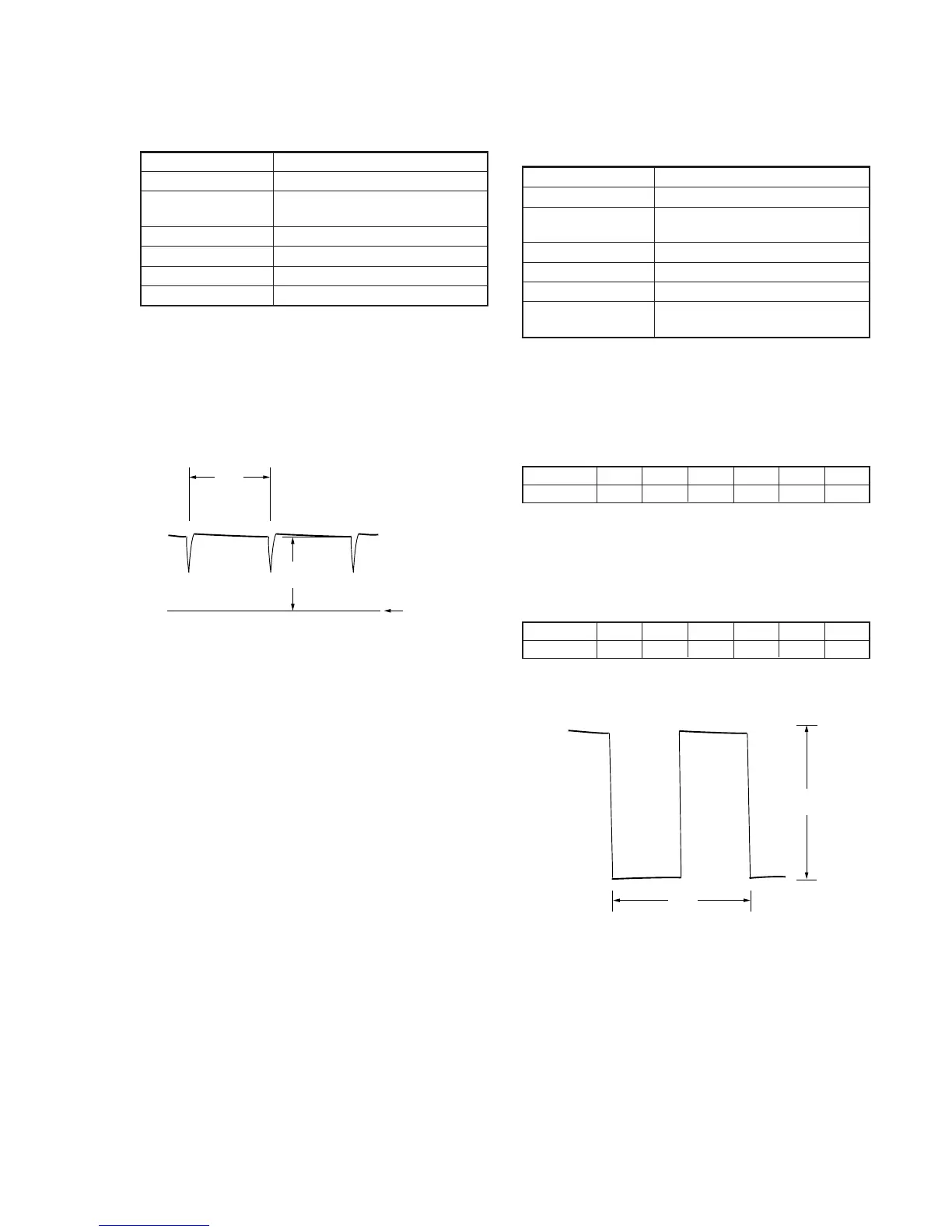

Fig. 5-2-1
CH1
CH2
(Trigger)
Must be fla
