Sony DCR-PC1 - Adjustments; Camera Section Adjustment; Preparations before Adjustment (Camera Section); List of Service Tools

5-1
DCR-PC1/PC1E
SECTION 5
ADJUSTMENTS
5-1. CAMERA SECTION ADJUSTMENT
NTSC model : DCR-PC1
PAL model : DCR-PC1E
1-1. PREPARATIONS BEFORE ADJUSTMENT (CAMERA SECTION)

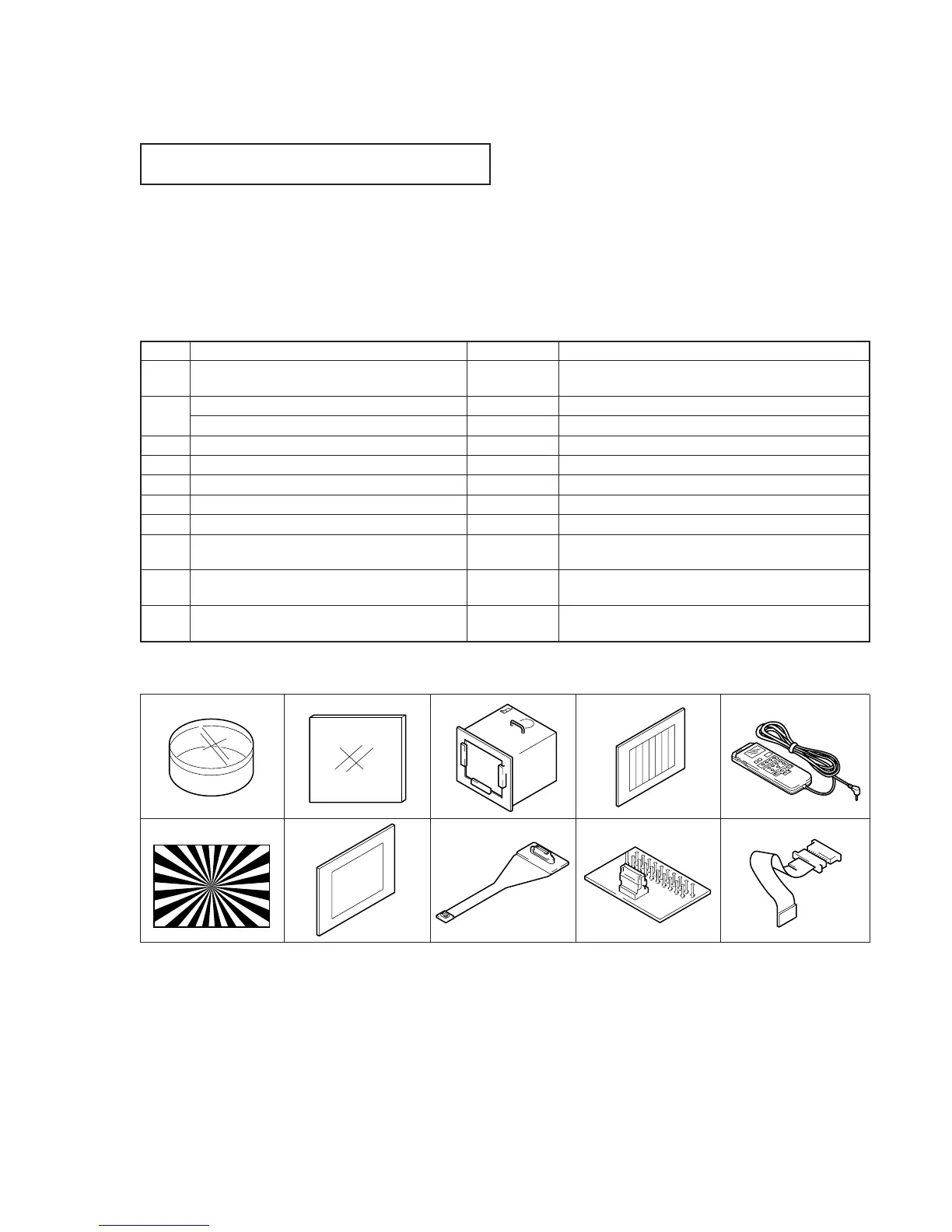

1-1-1. List of Service Tools
• Oscilloscope • Regulated power supply • Vectorscope
• Color monitor • Digital voltmeter • Adjustment screwdriver
J-1 J-2
J-6
J-3
J-7 J-8
J-4 J-5
Fig. 5-1-1
J-9 J-10
When performing adjustments, refer to the layout diagrams
for adjustment related parts beginning from page 5-46.
Note: If the microprocessor IC in the adjustment remote commander is not the new microprocessor (UPD7503G-C56-12), the pages cannot be switched.
In this case, replace with the new microprocessor (8-759-148-35).
Ref. No.
J-1
J-2
J-3
J-4
J-5
J-6
J-7
J-8
J-9
J-10
Name
Filter for color temperature correction (C14)
ND filter 1.0
ND filter 0.3
Pattern box PTB-450
Color chart for pattern box
Adjustment remote commander (RM-95 upgraded) Note
Siemens star chart
Clear chart for pattern box
CPC-6 flexible jig
CPC-6 terminal board jig
Extension cable (18P, 0.5mm)
Parts Code
J-6080-058-A
J-6080-808-A
J-6080-818-A
J-6082-200-A
J-6020-250-A
J-6082-053-B
J-6080-875-A
J-6080-621-A
J-6082-370-A
J-6082-371-A
J-6082-374-A
Usage
Auto white balance adjustment/check
White balance adjustment/check
White balance check
White balance check
For checking the flange back
For adjusting the video section
For adjusting the viewfinder
For adjusting the video section
For adjusting the viewfinder
For extension of the capstan motor MR-40 board
(CN2501)
