Sony DCR-PC1 - Main Board Section

6-2

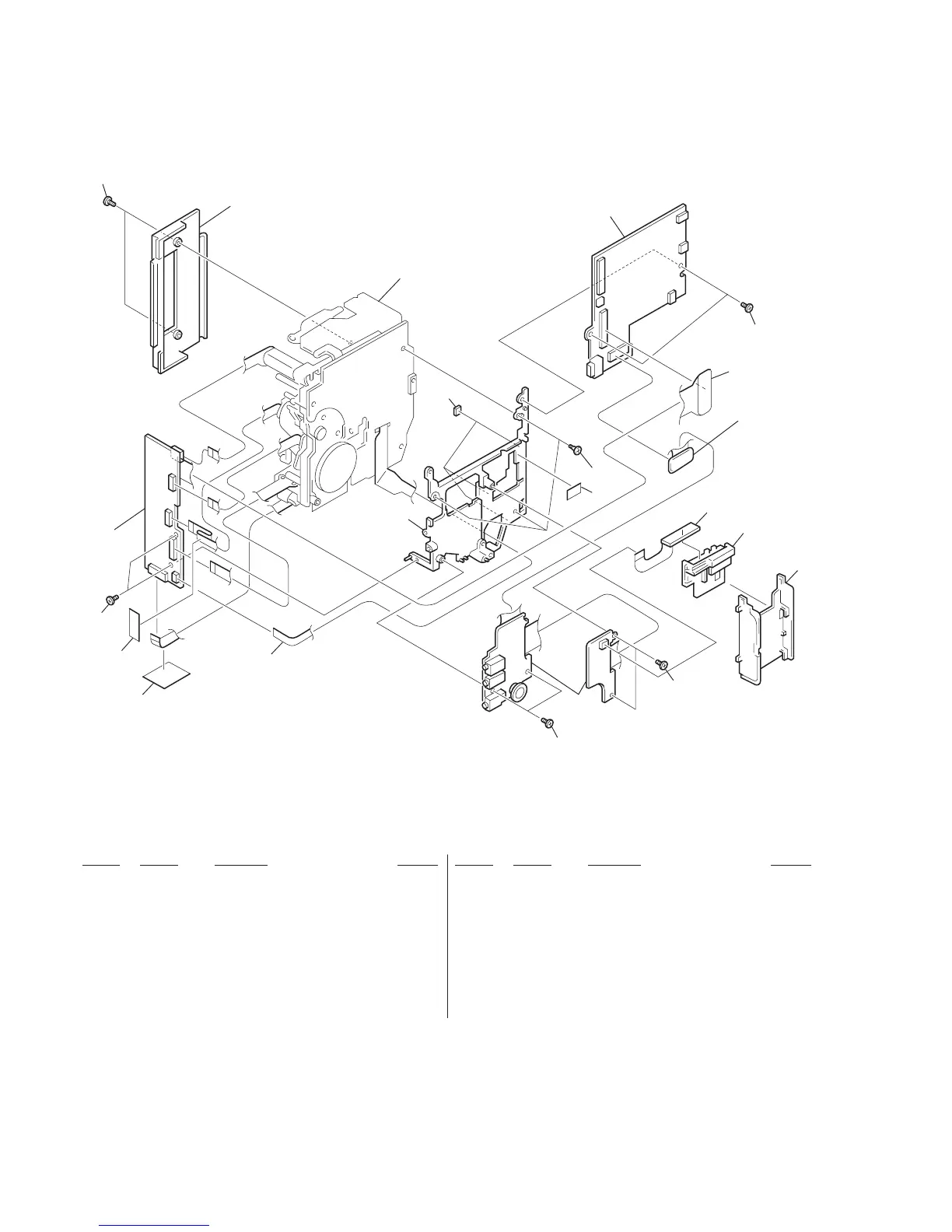

6-1-2. MAIN BOARD SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
DD-111
Board
DD-111
VC-210
Board
MR-40 Board
51
52
53
54
55
56
57
58
60
61
56
62
62
63
64
65
56
56
59
57
not supplied
Mechanism block
(See page 6-6 to 9)
51 3-051-230-01 PLATE, BATT
52 1-694-459-11 TERMINAL BOARD, BATTERY
53 1-670-873-11 TB-37 PRINTED WIRING BOARD
54 1-666-101-11 FP-585 FLEXIBLE BOARD
55 3-051-317-01 SHEET, CAP FLEXIBLE
56 3-973-497-41 SCREW (M1.7), 0-NO. +P 2
57 A-7073-668-A MR-40 BOARD, COMPLETE
58 X-3947-927-1 COVER ASSY
59 3-719-695-21 SCREW (M1.7X3.5), SPECIAL HEAD
60 3-051-223-01 FRAME, MD
61 A-7094-009-A VC-210 BOARD, COMPLETE (PC1)
61 A-7073-710-A VC-210 BOARD, COMPLETE (PC1E:AEP,UK)
61 A-7073-711-A VC-210 BOARD, COMPLETE
(PC1E:EXCEPT AEP,UK)
62 A-7073-669-A DD-111 BOARD, COMPLETE
63 3-964-734-01 SCREW, STEP
* 64 3-052-248-01 SHEET, BATT PLATE
65 3-975-921-01 SHEET, VIBRATION PROOF
