Sony DCR-PC1 - Back-Light Driver; Printed Wiring Board

DCR-PC1/PC1E
VF-125 BOARD
C5500 A-1
C5501 A-1
C5502 A-1
CN5500 B-6
CN5501 A-1
CN5502 C-1
Q5500 D-1
Q5501 D-1
Q5502 A-1
Q5503 A-1
Q5504 A-1
Q5505 A-2
Q5506 A-1
Q5507 A-1
R5500 D-1
R5501 D-1
R5502 D-1
R5503 D-1
R5504 D-1
R5505 D-1
R5506 D-1
R5507 A-1
R5508 A-1
R5509 A-1
R5510 A-2
R5511 A-1
R5512 A-1
R5513 A-1
R5514 D-1
S5500 B-1
TH5500 D-1
CD-203
(CCD IMAGER)
VF-125
(BACK-LIGHT DRIVE)
PR-31
(PANEL REVERSE)
PD-102
RGB DRIVER,
TIMING GENERATOR
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE

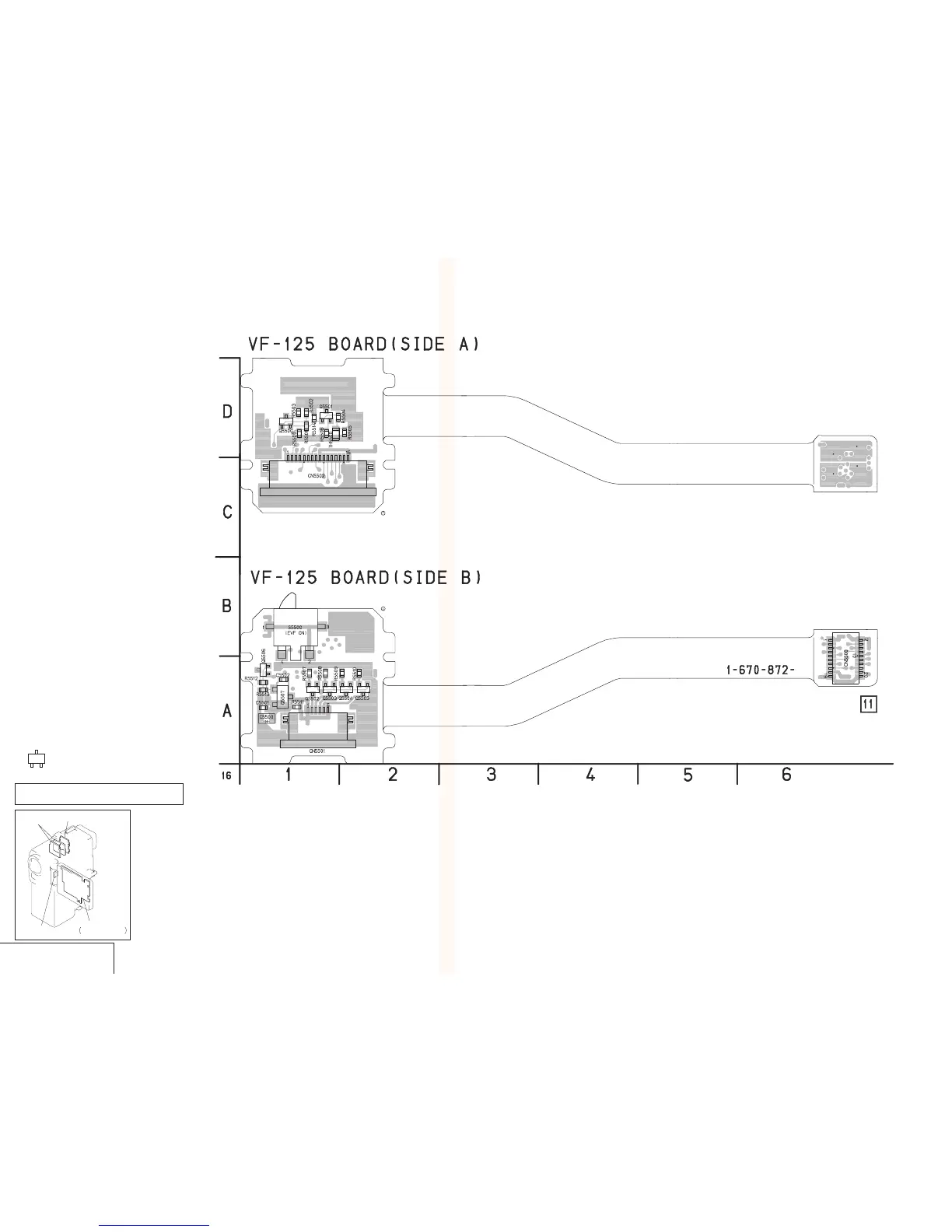

VF-125 (BACK-LIGHT DRIVER) PRINTED WIRING BOARD
— Ref. No. VF-125 Board; 10,000 Series —
4-65 4-66
BACK-LIGHT DRIVER
VF-125
