5-7
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-PC350/PC350E

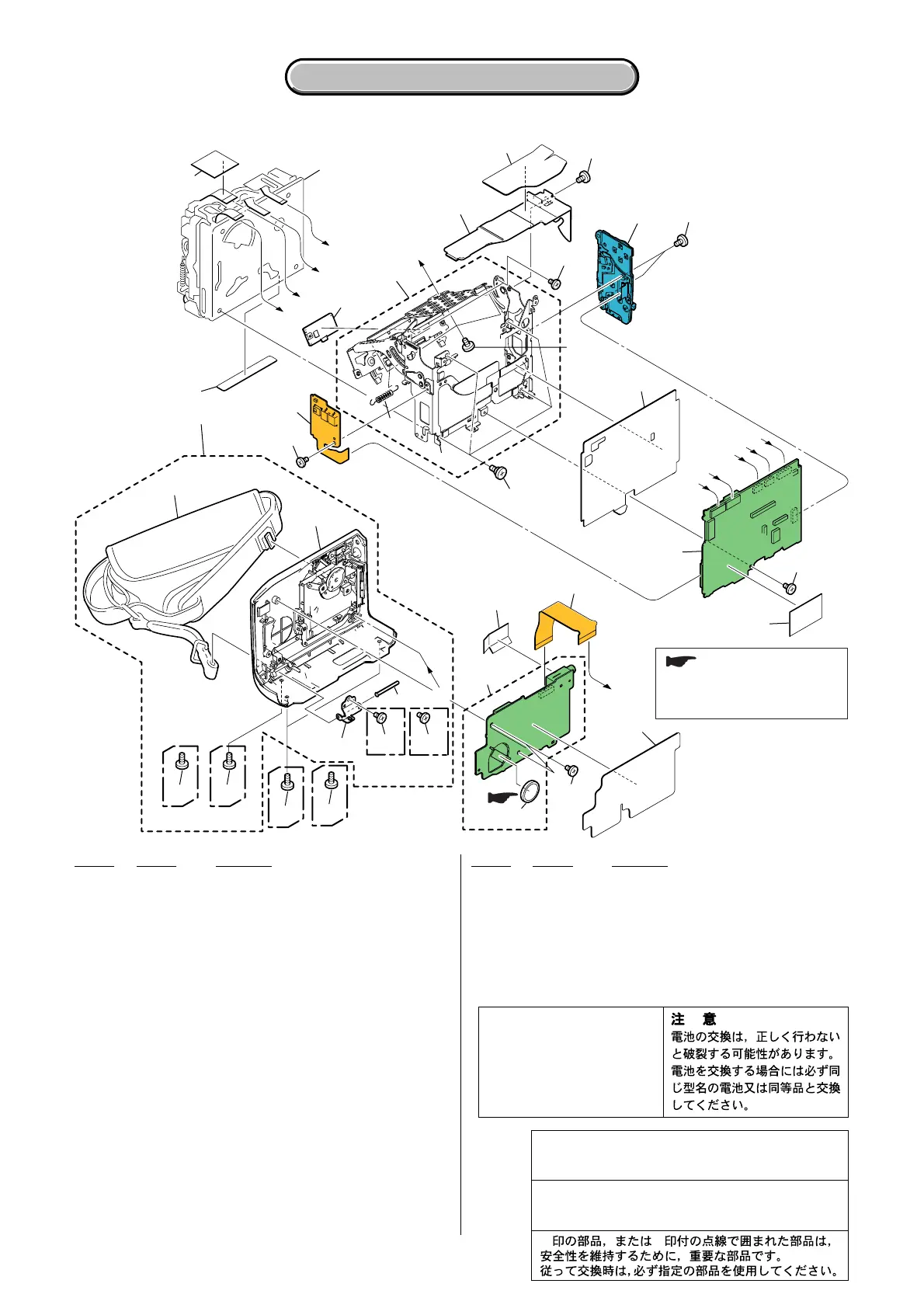

5-1-5. MD SECTION
ns : not supplied
201 X-2022-575-1 CABINET (G) ASSY (BLACK)(J)
201 X-2022-991-1 CABINET (G) ASSY (BLACK)(EXCEPT J)
201 X-2023-165-1 CABINET (G) ASSY (SILVER)(J)
201 X-2023-166-1 CABINET (G) ASSY (SILVER)(EXCEPT J)
202 X-2022-806-1 BELT ASSY, GRIP (BLACK)
202 X-2023-172-1 BELT ASSY, GRIP (SILVER)
203 3-080-204-01 SCREW, TAPPING, P2
204 3-989-735-11 SCREW (M1.7), LOCK ACE, P2
205 3-080-198-11 SCREW (M1.7), LOCK ACE, P2 (BLACK)
206 A-1070-197-A MS-234 BOARD, COMPLETE
207 2-178-954-01 SHEET (B), MS
208 1-863-850-11 FP-992 FLEXIBLE BOARD
209 2-148-543-01 SHEET, G
210 A-1073-284-A VC-370 BOARD, COMPLETE (SERVICE)
211 3-062-214-01 SCREW (M1.4X1.5)
212 1-478-836-11 SWITCH BLOCK, CONTROL (PS7450)
213 X-2022-577-1 FRAME ASSY, MD
214 3-075-309-01 KNOB, EJECT (BLACK)
214 3-075-309-11 KNOB, EJECT (SILVER)
215 A-1070-202-A FP-996 BOARD, COMPLETE
216 3-081-221-01 LABEL (Z), LS
217 3-954-730-01 SPRING, TENSION
218 2-190-722-01 SHEET (VC) (EXCEPT CH)
219 3-078-890-01 SCREW, TAPPING (BLACK)
220 3-084-817-11 SCREW (M1.7), SCOTCH GRIP, P2
221 3-973-497-91 SCREW (M1.7), O-NO. +P2 (SILVER)
0 BT800 1-756-128-11 BATTERY, LITHIUM (SECONDARY)
Ref. No. Part No. Description Ref. No. Part No. Description
VC-370
MS-234
F
F
A
B
C
D
A
B
C
D
E
E
ns
ns
ns
ns
ns
ns
ns
ns
204
202
201
219
203
203
203
204
204
220
221
216
214
213
Mechanism deck
(See pages 5-10 to 5-12)
212
210
211
217
218
215
207
208
206
209
BT800
: BT800 (Lithium battery)
MS-234 board on the
mount position.
(See page 4-76)
(Silver)
204
(Silver)
220
(Black)
205
(Black)
(Black)
203
(Silver)
The components identified by mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une pièce portant le numéro spécifié.
0 0
CAUTION :
Danger of explosion if battery
is incorrectly replaced.
Replace only with the same
ore equivalent type.
Ver 1.1 2005. 09
