5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-PC350/PC350E

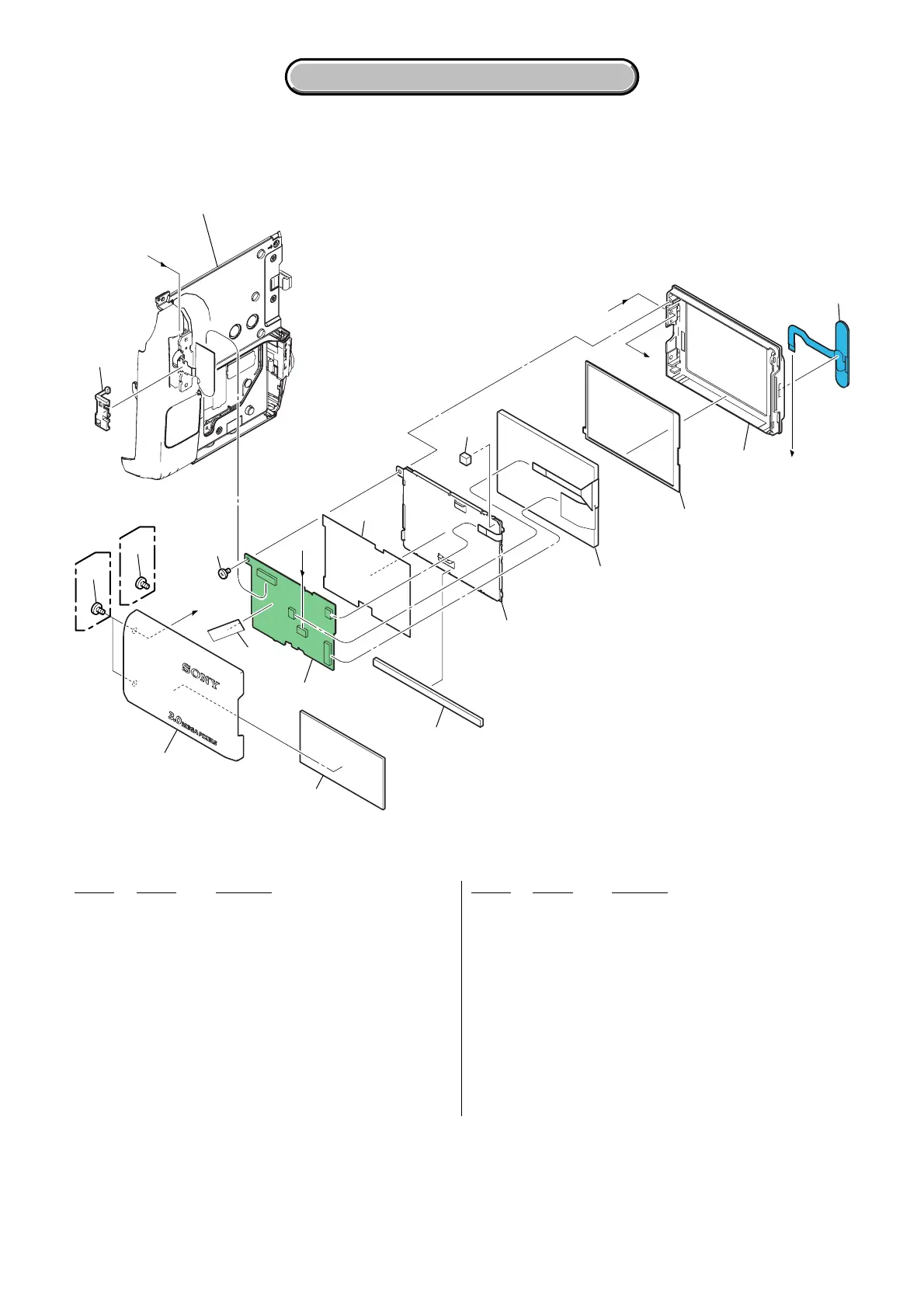

5-1-6. CABINET (R) SECTION-1
Ref. No. Part No. Description Ref. No. Part No. Description
251 2-148-488-01 CABINET (R), P (BLACK) (P350: J)
251 2-148-488-11 CABINET (R), P (BLACK) (P350E)
251 2-148-488-21 CABINET (R), P (BLACK) (P350: EXCEPT J)
251 2-148-488-31 CABINET (R), P (SILVER) (P350: J)
251 2-148-488-41 CABINET (R), P (SILVER) (P350: EXCEPT J)
251 2-148-488-51 CABINET (R), P (SILVER) (P350E)
252 3-989-735-31 SCREW (M1.7), LOCK ACE, P2 (SILVER)
253 3-989-735-11 SCREW (M1.7), LOCK ACE, P2
254 A-1070-199-A PD-225 BOARD, COMPLETE
255 2-148-579-01 CUSHION, BL
256 2-148-475-01 CUSHION (2), BL
257 2-149-711-01 CUSHION, TP
258 2-148-491-01 CABINET (L), P (BLACK)
258 2-148-491-11 CABINET (L), P (SILVER)
259 3-090-063-02 SHEET, P
260 1-478-838-11 SWITCH BLOCK, CONTROL (SB7450) (J)
260 1-478-838-21 SWITCH BLOCK, CONTROL (SB7450)
(EXCEPT J)
261 2-148-495-01 CLAMP, FLEXIBLE
262 3-080-198-31 SCREW (M1.7), LOCK ACE, P2 (BLACK)
263 3-941-343-01 TAPE (A)
LCD901 8-753-224-38 ACX528AKQ-J
LED901 1-478-462-11 BLOCK, LIGHT GUIDE PLATE (2.5)
ns : not supplied
PD-225
A
A
B
C
B
C
LCD901
ns
LED901
253
Cabinet (R) section -2
(See page 5-9)
252
251
259
254
263
258
257
260
255
261
256
(Silver)
(Black)
262
Ver 1.1 2005. 09
