DCR-PC350/PC350E

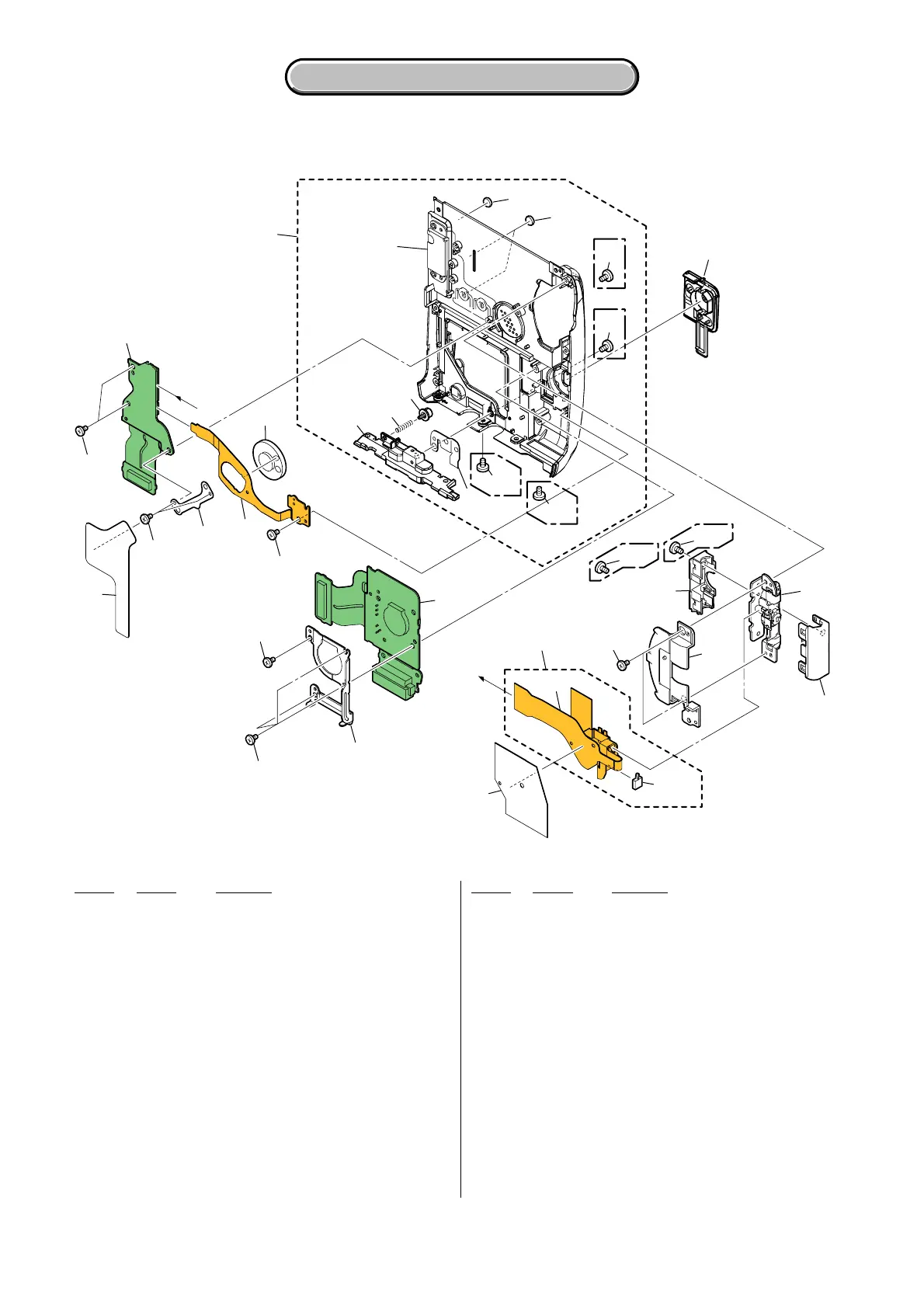

5-1-7. CABINET (R) SECTION-2
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
301 3-080-204-01 SCREW, TAPPING, P2
302 2-148-499-01 FRAME, CR
303 3-078-890-21 SCREW, TAPPING
304 A-1070-194-A CR-048 BOARD, COMPLETE
(CN8501 is included in this COMPLETE board.)
305 3-085-397-01 SCREW
306 1-863-851-21 FP-993 FLEXIBLE BOARD
307 3-089-930-01 LIFTER, BT (SILVER)
307 3-089-930-11 LIFTER, BT (BLACK)
308 A-1070-196-A VP-060 BOARD, COMPLETE
309 X-2022-571-1 CABINET (R) ASSY (BLACK)(J)
309 X-2022-990-1 CABINET (R) ASSY (BLACK)(EXCEPT J)
309 X-2023-167-1 CABINET (R) ASSY (SILVER)(J)
309 X-2023-168-1 CABINET (R) ASSY (SILVER)(EXCEPT J)
311 3-089-931-01 SPRING, LIFTER
312 3-089-938-01 FRAME, BOTTOM
313 3-989-735-31 SCREW (M1.7), LOCK ACE, P2 (SILVER)
314 X-2022-584-1 COVER (R) ASSY, JACK (BLACK)
314 X-2023-174-1 COVER (R) ASSY, JACK (SILVER)
* 315 3-263-235-01 SCREW (M1.7), SCOTCH GRIP, P2 (SILVER)
316 2-148-471-01 COVER (REAR), HINGE (BLACK)
316 2-148-471-11 COVER (REAR), HINGE (SILVER)
317 X-3954-070-1 HINGE (63) ASSY
318 2-148-470-01 FRONT, HINGE COVER (BLACK)
318 2-148-470-11 FRONT, HINGE COVER (SILVER)
319 2-148-494-01 BLIND, HINGE (BLACK)
319 2-148-494-11 BLIND, HINGE (SILVER)
320 A-1070-200-A FP-994 BOARD, COMPLETE
321 3-084-817-11 SCREW (M1.7), SCOTCH GRIP, P2 (BLACK)
322 3-080-198-31 SCREW (M1.7), LOCK ACE, P2 (BLACK)
S9400 1-786-179-31 SWITCH, PUSH (1KEY) (PANEL REVERSE)
SP901 1-825-262-11 LOUD SPEAKER (1.6CM)
A
A
313
312
313
305
301
301
302
303
301
320
316
315
317
318
305
308
309
314
306
311
307
304
319
SP901
ns
ns
ns
ns
ns
ns
ns
ns
S9400
(Silver)
(Silver)
(Silver)
321
(Black)
322
(Black)
(Black)
322
