Sony DSR-2000 - Removal;Installation of Cabinet

3-10
DSR-2000/2000P
B4 x 8
B4 x 8
B4 x 8
B4 x 8
PWH3 x 6
PWH3 x 6
B4 x 6
Fixing screw
(with stopper)
Claw
Claw
Section A
Section A
Foot
Hole
Claw
Claw
Claw
Claws
Top panel
Left side panel
Right side panel
BVTT3 x 6
BVTT3 x 6
Bottom panel
Front panel

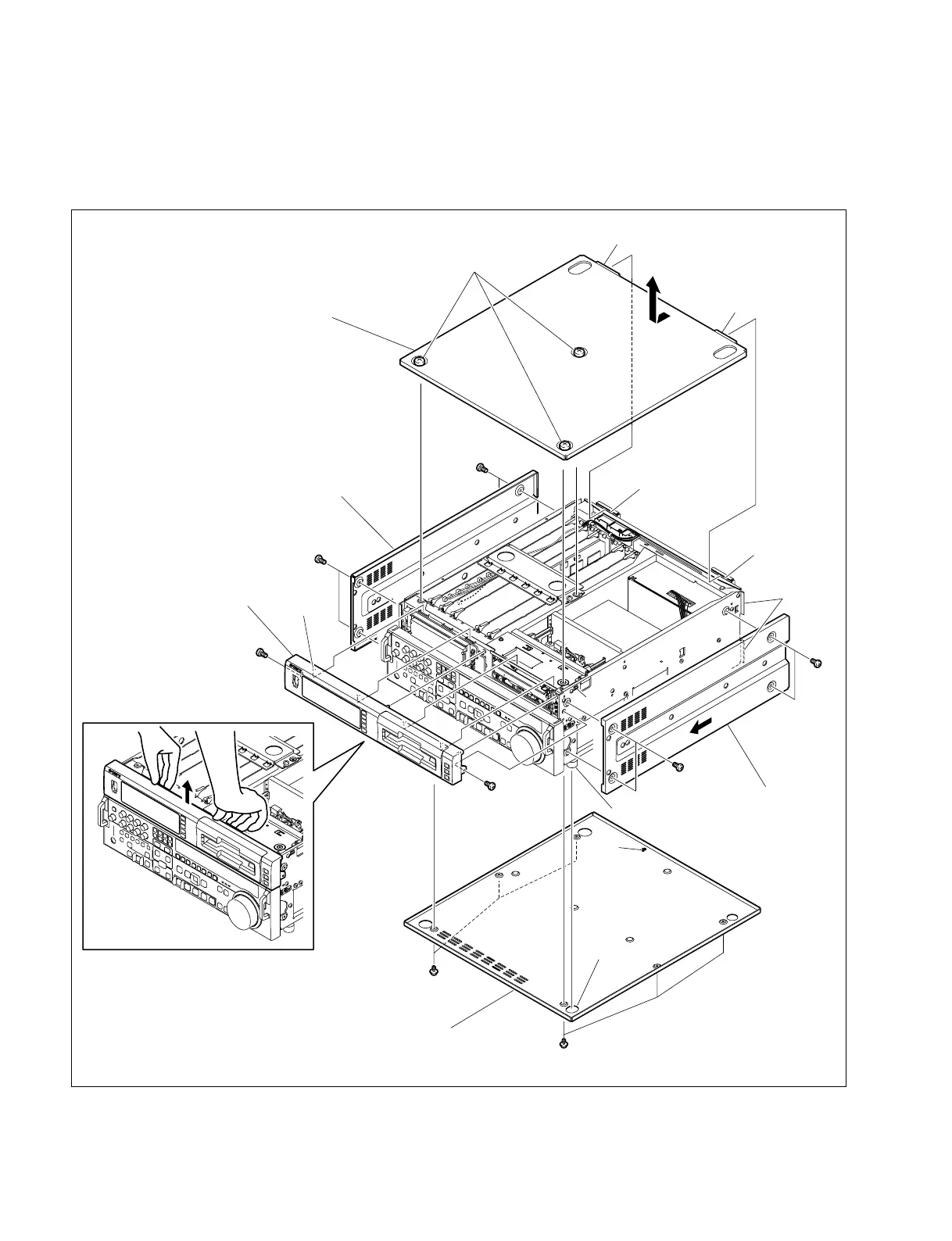

3-3. Removal/Installation of Cabinet
n
Turn off the power of the unit before starting removal/installation.
3-3. Removal/Installation of Cabinet
