Sony DSR-2000 - S VIDEO out y Level Check

10-9
DSR-2000/2000P
Specification
S VIDEO (Y) OUT (75 Z terminated)
TRIG : REF. VIDEO
Spec.
[For NTSC]
A = 0.714 ±0.007 V (100 ±1 IRE)
[For PAL]
A = 0.700 ±0.007 V
Specification
VIDEO OUT 1 (75 Z terminated)
(A) Video Level
(B) Sync Level
TRIG : REF. VIDEO
Spec.
[For NTSC]
A = 0.714 ±0.007 V (100 ±1 IRE)
B = 0.286 ±0.003 V (40 ±0.5 IRE)
[For PAL]
A = 0.700 ±0.007 V
B = 0.300 ±0.003

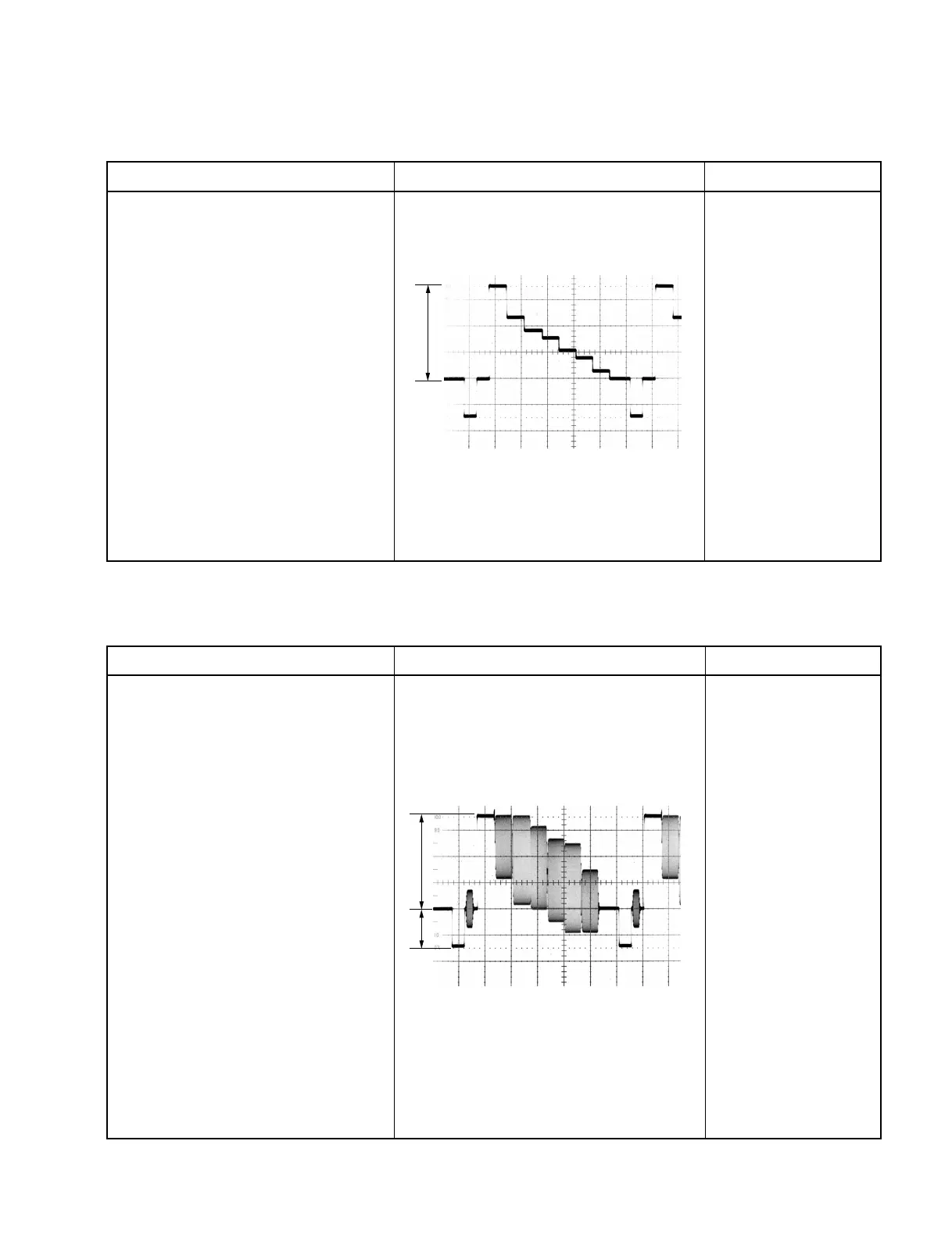

Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
Connection 2
10-3-7. S VIDEO OUT Y Level Check
10-3-8. VIDEO OUT 1 Video/Sync Level Adjustment
Adjustment
Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
Connection 2
Adjustment
1RV803/VPR-62 (M-4)
1RV804/VPR-62 (L-4)
10-3. Video Adjustment
10-3-7. S VIDEO OUT Y Level Check
10-3-8. VIDEO OUT 1 Video/Sync Level Adjustment
A
B
A
