Sony DSR-2000 - REC COMPOSITE Chroma Level Adjustment

10-28
DSR-2000/2000P
Specification
VIDEO OUT 1 (75 Z terminated)
(A) Burst
(B) Composite Chroma Level
TRIG : REF. VIDEO

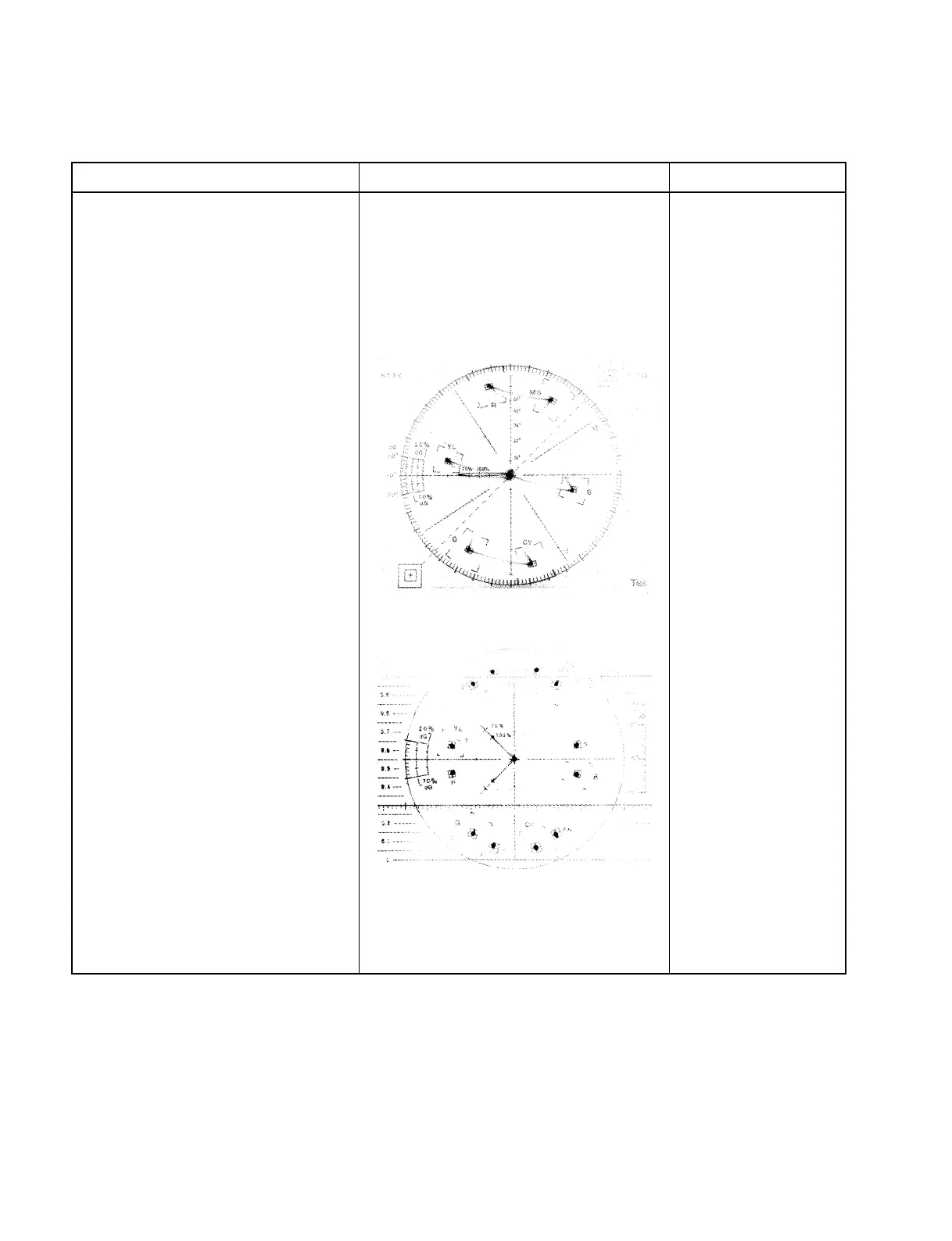

Vector (for NTSC)
Vector (for PAL)
Spec. (A) Set the dot of the burst in the right
position on the scale.
(B) All dots should be inside the “4”
mark on the vector.
Conditions for adjustment
. EE mode
. VIDEO IN ; 75 % Color bars (for NTSC)
100 % Color bars (for PAL)
. VIDEO IN select/MENU ; COMPOSITE
n
The “Setup ON/OFF” setting of the DSR-
2000 and that a vectorscope must have
been set to the same position beforehand.
Connection 2
10-3-29. REC COMPOSITE Chroma Level Adjustment
Adjustment
1PHASE control/Vector
1RV201/VPR-62 (L-1)
1RV202/VPR-62 (M-1)
10-3. Video Adjustment
10-3-29. REC COMPOSITE Chroma Level Adjustment
