Sony DSR-2000 - Cassette Compartment Motor Replacement

7-65
DSR-2000/2000P

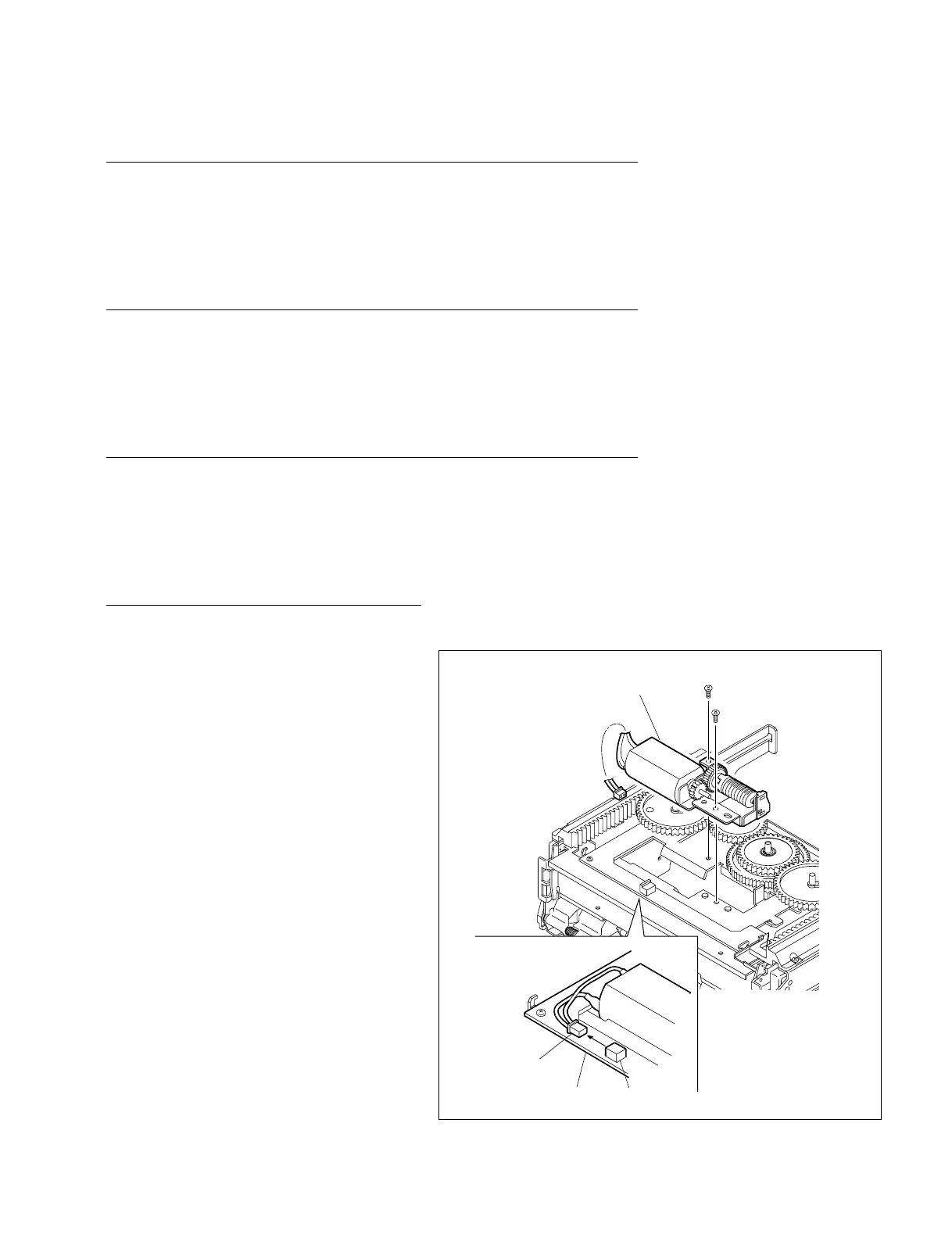

Motor gear assembly
CC-83 board
Harness
CN3
Screw M2
Screw M2
7-23. Cassette Compartment Motor Replacement
7-23. Cassette Compartment Motor Replacement
Outline
Replacement
Removing the motor gear assembly
Replacing the motor assembly
Reattaching the motor gear assembly
Preparation
1. Set the unit to the unthreading end status.
2. Power off the unit.
3. Remove the top panel. (Refer to Section 3-3.)
4. Remove the cassette compartment. (Refer to Section 3-4.)
Tools
. Torque screwdriver (for 3 kgf.cm) : J-6325-400-A
. Torque screwdriver’s bit (for M2) : J-6325-380-A
. Grease (SGL-941) : 7-662-001-39
. Tweezers
Replacement
1. Removing the motor gear assembly
(1) Remove the harness of the motor gear from
the connector (CN3) on the CC-83 board in
the cassette compartment.
(2) Remove the motor gear assembly from the
cassette compartment by removing the two
screws.
