Sony DSR-2000 - REC COMPONENT Y;C Delay Adjustment

10-31
DSR-2000/2000P
Conditions for adjustment
. EE mode
. COMPONENT IN ; Bowtie
Connection 1
Specification
COMPONENT OUT (75 Z terminated)
(A) B-Y Delay
(B) R-Y Delay
TRIG : INT/WFM

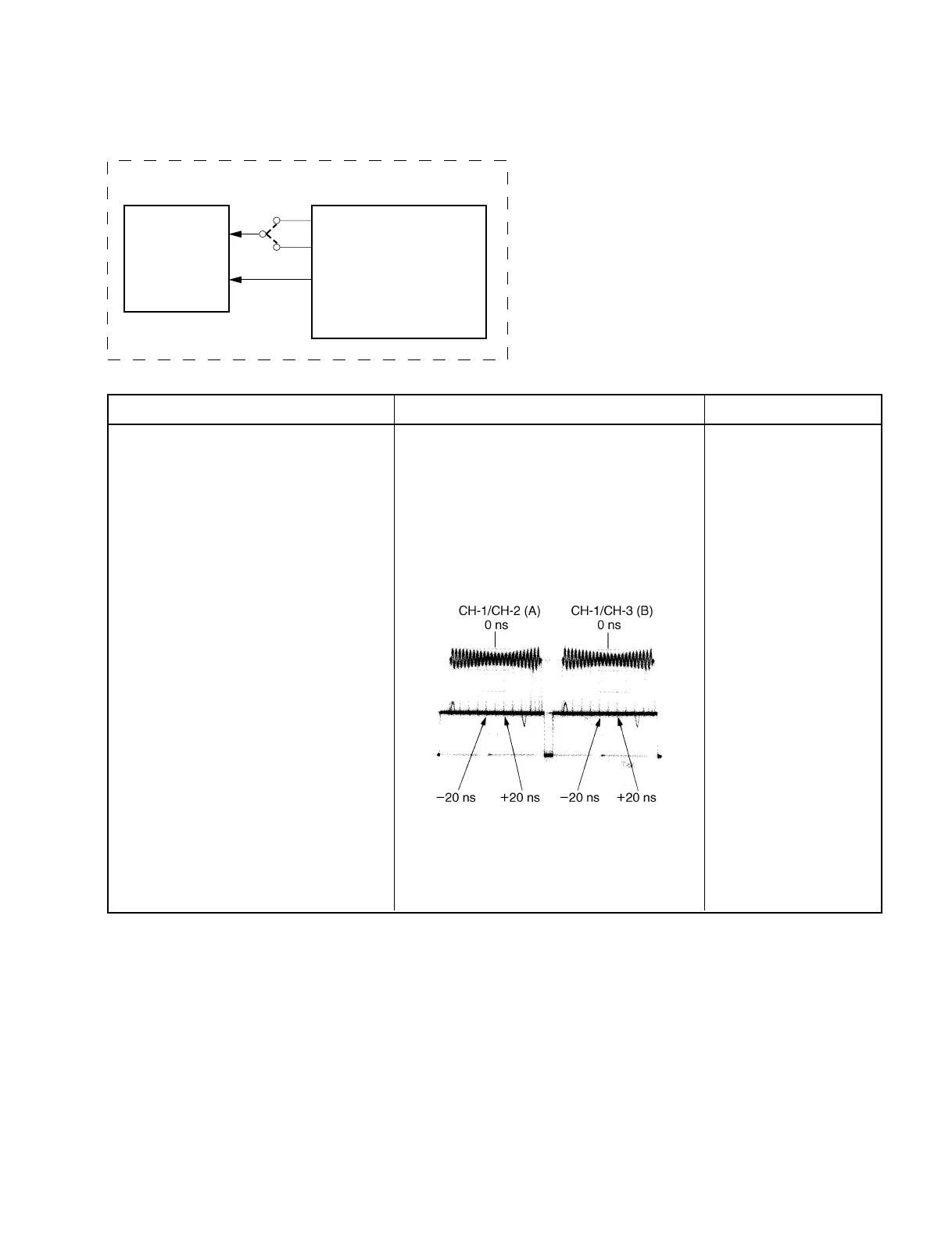

Bowtie mode
Spec. Set the each Bowtie dip point of (A)
and (B) on the center marker.
0 ±20 ns
10-3-32. REC COMPONENT Y/C Delay Adjustment
Adjustment
1RV406/VPR-62 (K-1)
1RV409/VPR-62 (K-2)
10-3. Video Adjustment
10-3-32. REC COMPONENT Y/C Delay Adjustment
DSR-2000/2000P
(B)
(A)
(A) 1RV406
(B) 1RV409
INV/ADD mode
TRIG : CH-1
CH-2
CH-1
COMPONENT R-Y OUT
COMPONENT B-Y OUT
COMPONENT Y OUT
[Connection for reference] Using for an oscilloscope
Oscilloscope
