10-29
DSR-2000/2000P
Specification
S VIDEO (C) OUT (75 Z terminated)
(A) Burst
(B) S-C Level
TRIG : REF. VIDEO

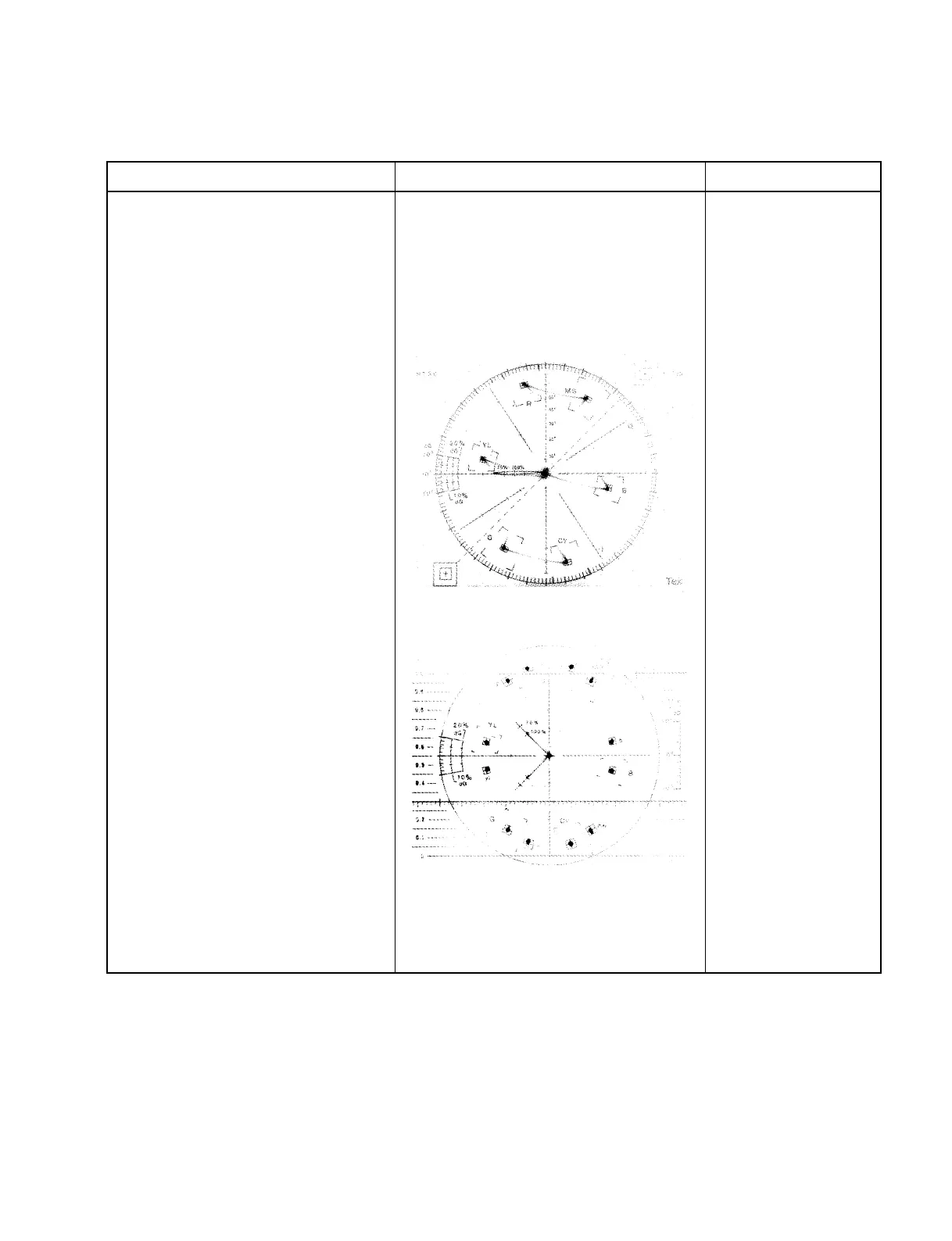

Vector (for NTSC)
Vector (for PAL)
Spec. (A) Set the dot of the burst in the right
position on the scale.
(B) All dots should be inside the “4”
mark on the vector.
Conditions for adjustment
. EE mode
. S VIDEO IN ; 75 % Color bars (for NTSC)
100 % Color bars (for PAL)
. VIDEO IN select/MENU ; S VIDEO
n
The “Setup ON/OFF” setting of the DSR-
2000 and that a vectorscope must have
been set to the same position beforehand.
Connection 2
10-3-30. REC S VIDEO Chroma Level Adjustment
Adjustment
1PHASE control/Vector
1RV101/VPR-62 (P-6)
10-3. Video Adjustment
10-3-30. REC S VIDEO Chroma Level Adjustment
To Next Page
