Sony DSR-2000 - REC COMPOSITE Y;C Delay Adjustment

10-30
DSR-2000/2000P
Specification
COMPONENT OUT (75 Z terminated)
B-Y
R-Y
Spec. 0 ±20 ns
Conditions for adjustment
. EE mode
. VIDEO IN ; 75 % Color bars (for NTSC)
100 % Color bars (for PAL)
. VIDEO IN select/MENU ; COMPOSITE

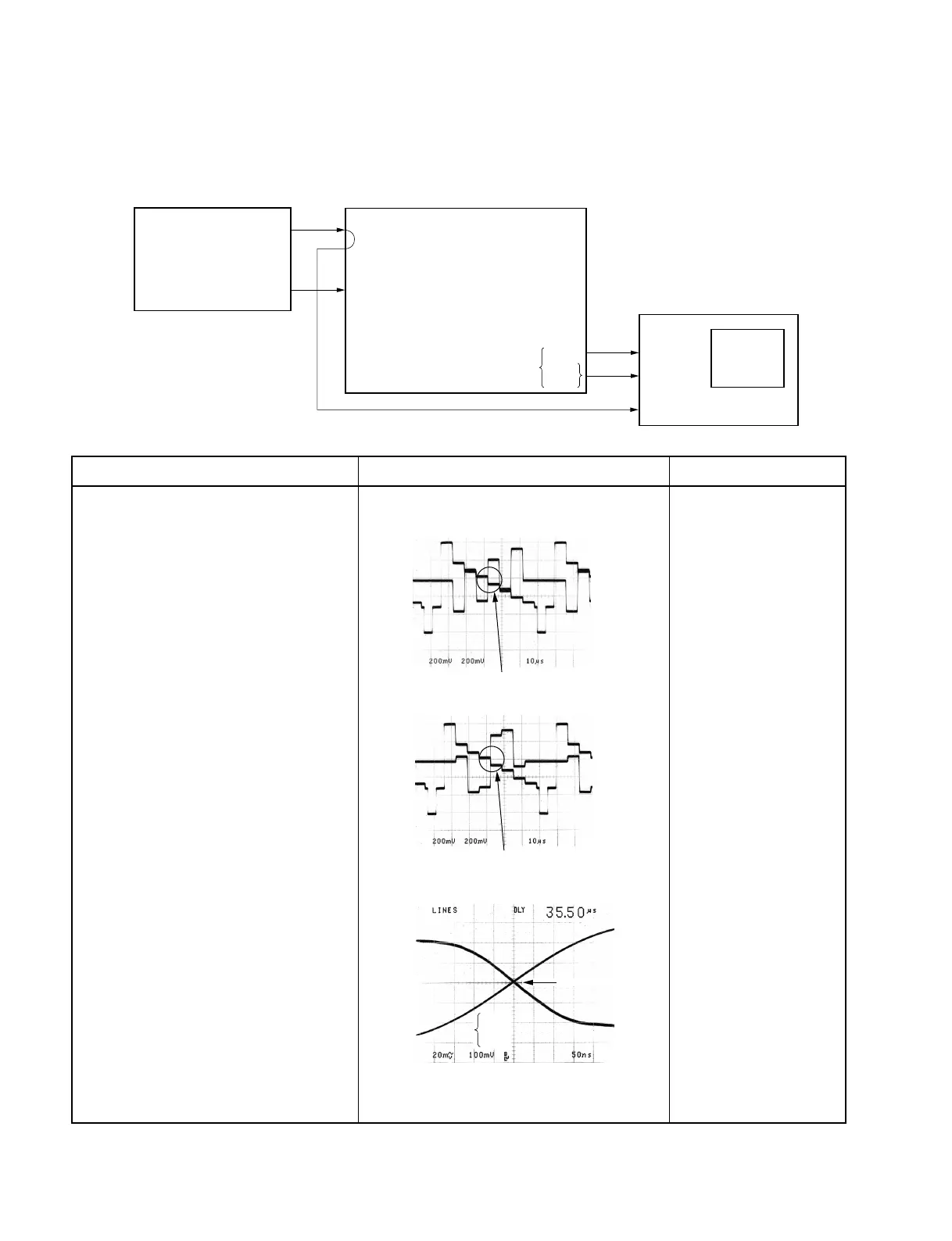

10-3-31. REC COMPOSITE Y/C Delay Adjustment
(Connection)
Adjustment
B-Y : 1RV404/VPR-62
(K-1)
R-Y : 1RV407/VPR-62
(K-2)
10-3. Video Adjustment
10-3-31. REC COMPOSITE Y/C Delay Adjustment
DSR-2000/2000P
BB
REF. VIDEO IN
VIDEO IN
Video signal generator
(NTSC : TSG-130A)
(PAL : TSG-131A)
COMPOSITE
CH-1
CH-2
TRIG
Oscilloscope
Y
B-Y
R-Y
COMPONENT OUT
Y
50% Level point
B-Y
R-Y
A portion
A portion
(Detail of A portion)
