Sony DSR-2000 - REF. VIDEO out Sync;Burst Level Adjustment

10-19
DSR-2000/2000P
Specification

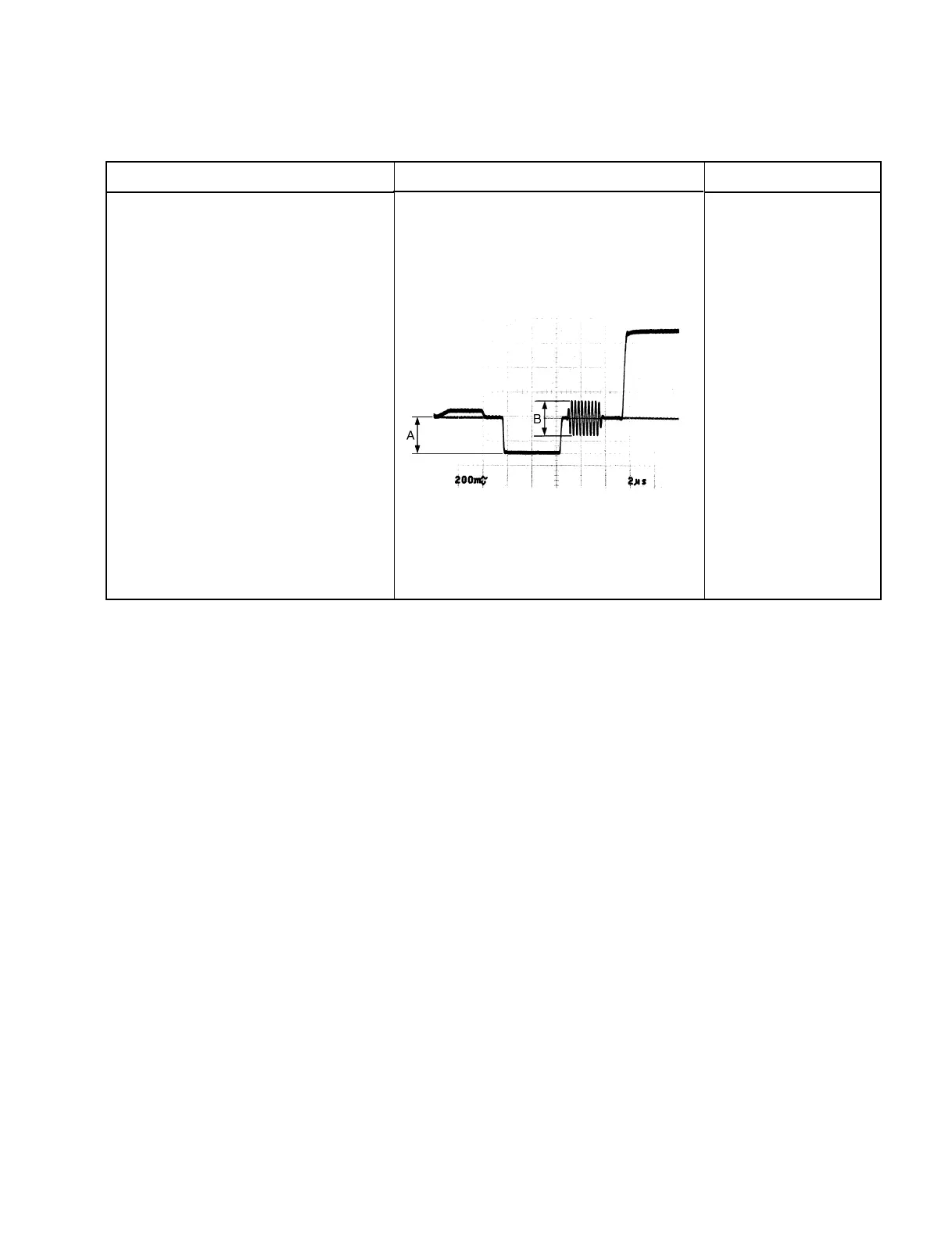

REF. VIDEO OUT (75 Z terminated)
(A) Sync Level
(B) Burst Level
TRIG : INT/WFM
Spec.
[For NTSC]
A, B = 0.286 ±0.003 V (40 ±0.5 IRE)
[For PAL]
A, B = 0.300 ±0.003 V
Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
. REF. VIDEO INPUT ; No signal
. AFTER ADJUSTMENT IS COMPLETED,
RE-CONNECT THE REF. VIDEO INPUT.
Connection 2
10-3-19. REF. VIDEO OUT Sync/Burst Level Adjustment
Adjustment
1RV904/VPR-62 (L-3)
1RV906/VPR-62 (M-3)
10-3. Video Adjustment
10-3-19. REF. VIDEO OUT Sync/Burst Level Adjustment
