Sony DSR-2000 - SPCK Error Adjustment

10-21
DSR-2000/2000P
Video signal generator
(NTSC : TSG-130A)
(PAL : TSG-131A)
VIDEO IN
REF VIDEO INBB
75 % CB (NTSC)
100 % CB (PAL)
DSR-2000/2000P
Specification
TP500/VPR-62 (A-3)
Spec. A = 1.5 ±0.1 V dc
Conditions for adjustment
Oscilloscope
. EE mode
. VIDEO IN ; 75 % Color bars (for NTSC)
100 % Color bars (for PAL)

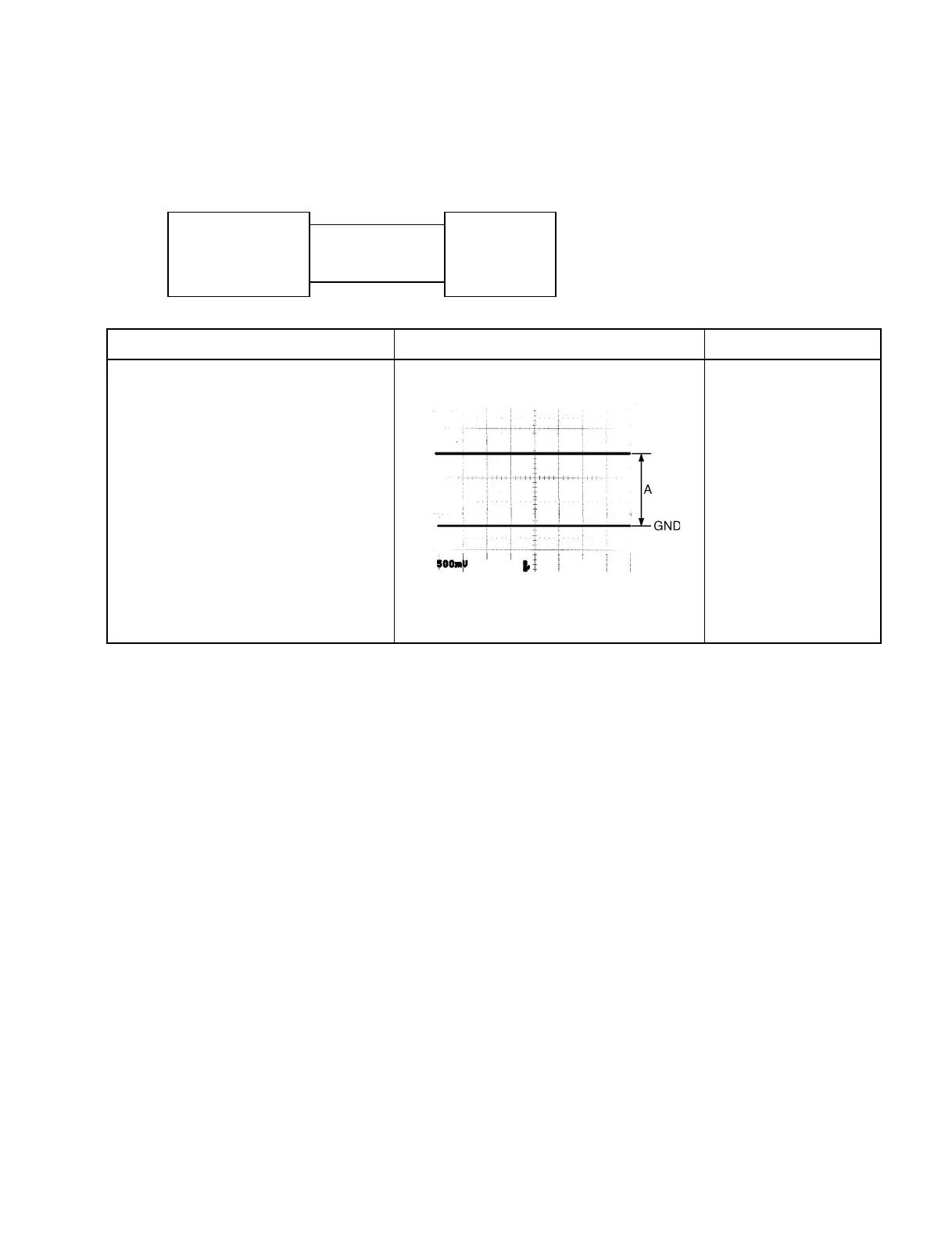

10-3-21. SPCK Error Adjustment
(Connection)
Adjustment
1CT500/VPR-62 (A-4)
10-3. Video Adjustment
10-3-21. SPCK Error Adjustment
