Sony DSR-2000 - U-V Axis (B-Y, R-Y) Phase Adjustment

10-12
DSR-2000/2000P
Specification
VIDEO OUT 1 (75 Z terminated)
(A) Burst preset
(B) V-axis (U/V OFFSET)
TRIG : REF. VIDEO

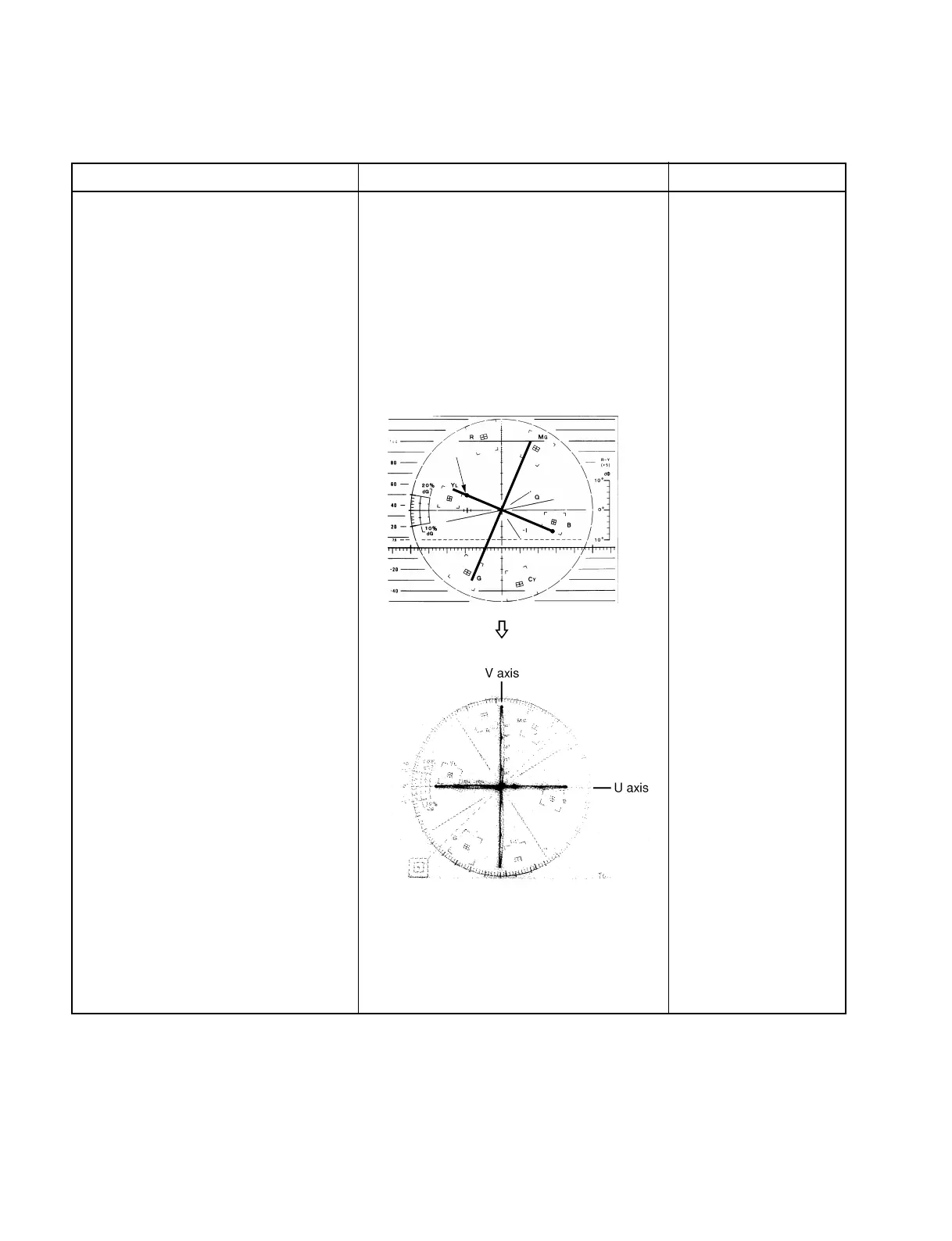

Vector
(Before adjustment)
(After Adjustment)
Spec. (A) Set the dot of the burst in the right
position on the scale.
(B) Set the dots of the R-Y on the V
axis of the vector.
C = 0 ±0.5 d
Conditions for adjustment
. PB mode
[Flow]
(A) Burst preset
. PB mode
Quad Phase/XH5-1A2 or XH5-1AP2
(05:20-06:00)
(B) V-axis phase adjustment
. PB mode
Quad Phase/XH5-1A2 or XH5-1AP2
(05:20-06:00)
Connection 2
10-3-12. U-V Axis (B-Y, R-Y) Phase Adjustment
Adjustment
1PHASE control/Vector
1RV902/VPR-62 (F-1)
10-3. Video Adjustment
10-3-12. U-V Axis (B-Y, R-Y) Phase Adjustment
Burst
