Sony DSR-2000 - REC A;D y Level Adjustment

10-26
DSR-2000/2000P
Specification
COMPONENT Y OUT (75 Z terminated)
TRIG : REF. VIDEO
Spec.
[For NTSC]
A = 0 ±0.007 V (0 ±1 IRE)
[For PAL]
A = 0 ±0.007 V
Conditions for adjustment
WFM or Oscilloscope
. EE mode
. VIDEO IN ; 75 % Color bars (for NTSC)
100 % Color bars (for PAL)
. VIDEO IN select/MENU ; COMPOSITE
. S101-1/SV-212 (L-1) ; ON
. S200/VPR-62 (M-1) ; ON
. After Adjustment, S101-1, S200 ; OFF

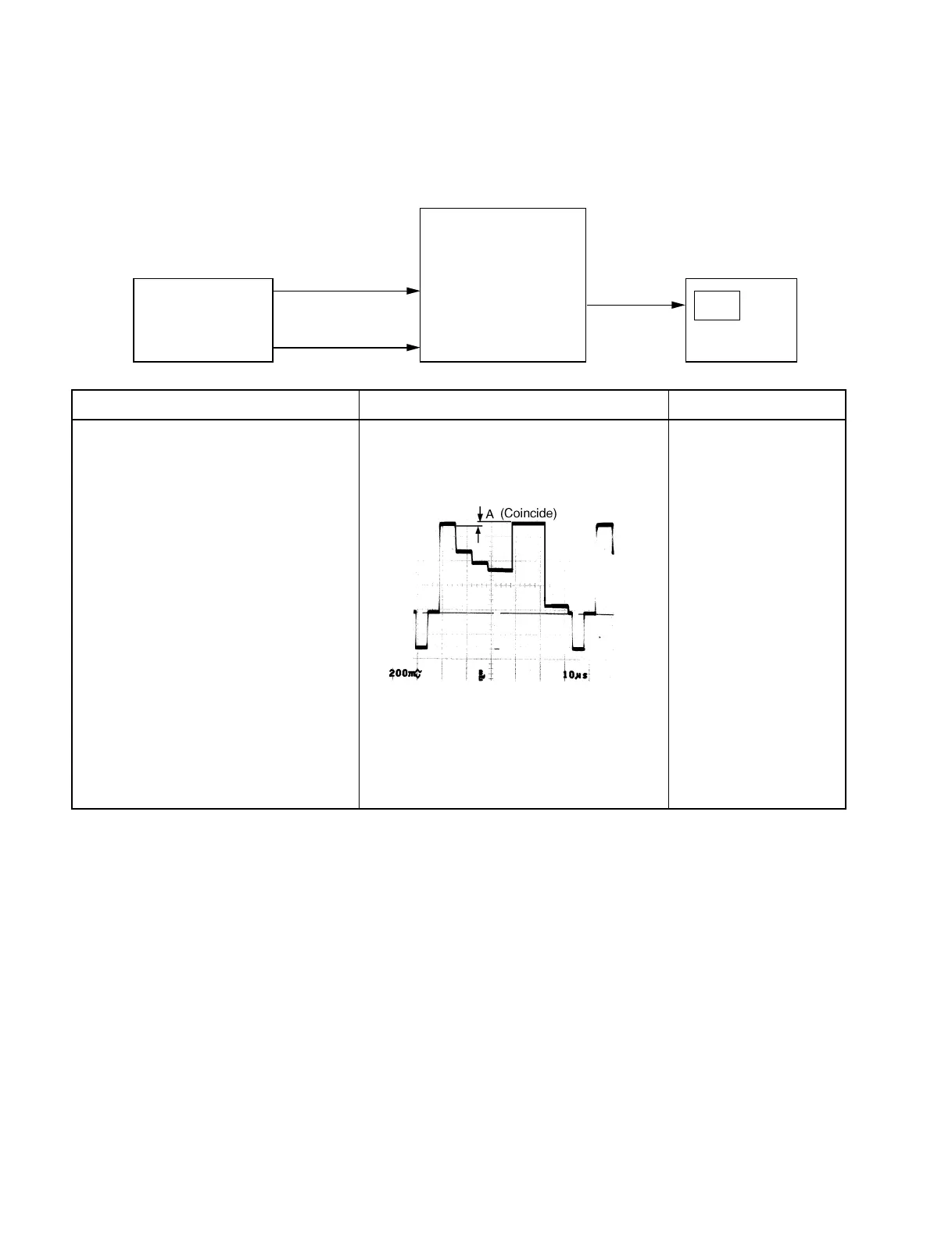

10-3-27. REC A/D Y Level Adjustment
(Connection)
Adjustment
1RV103/VPR-62 (P-5)
10-3. Video Adjustment
10-3-27. REC A/D Y Level Adjustment
Video signal generator
(NTSC : TSG-130A)
(PAL : TSG-131A)
VIDEO IN
REF VIDEO INBB
75 % CB (for NTSC)
100 % CB (for PAL)
DSR-2000/2000P
COMPONENT
Y OUT
WFM or Oscilloscope
