Sony DSR-2000 - Notes on Repair Parts

3-32
DSR-2000/2000P
Flexible card wire
Insulation side
Connector
A
Unlocked status
Locked status
Flexible card wire
A
Connector
Flexible card wire
Connector
Connector
Flexible card wire
A
A
< Type B >

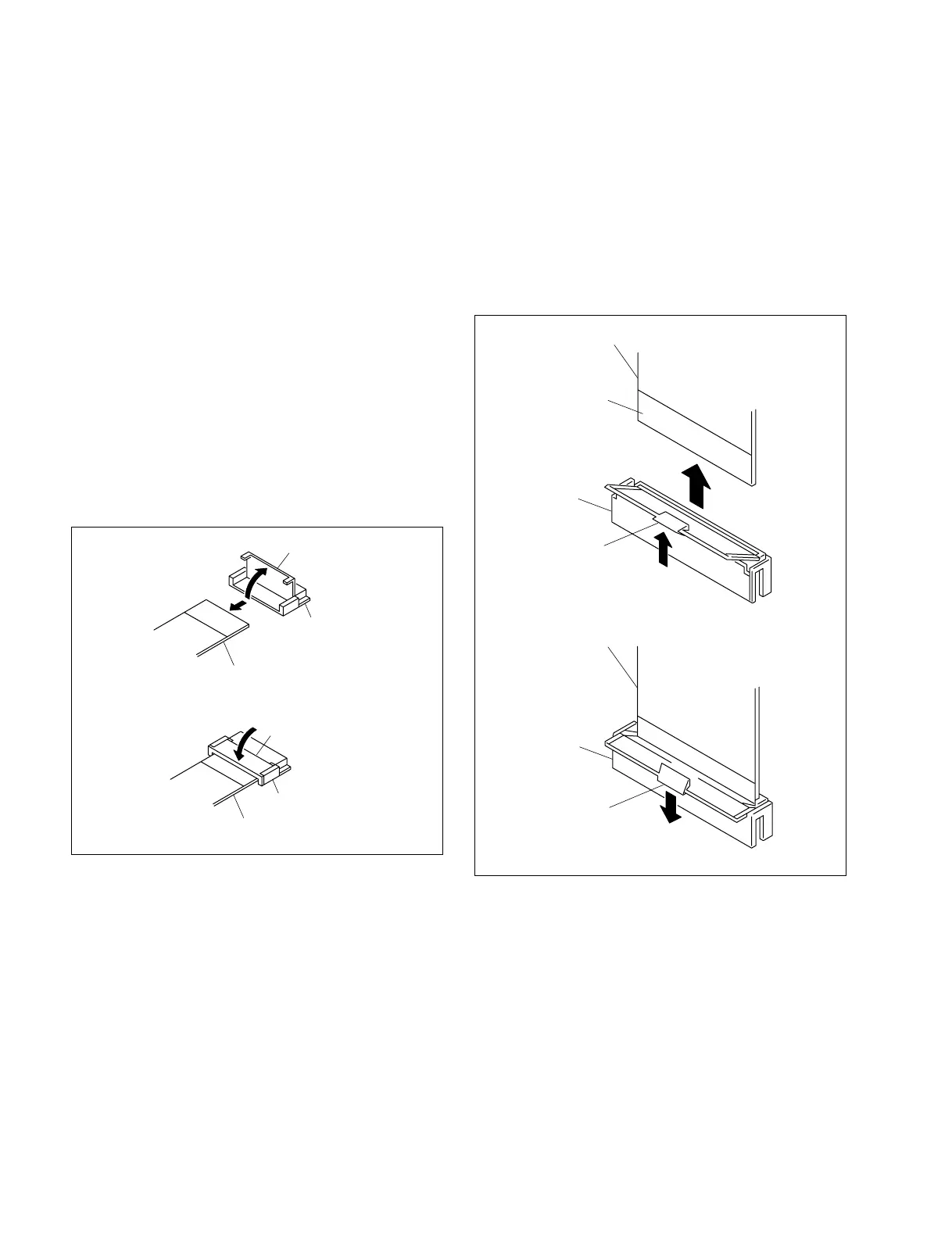

Removing method
Raise the portion marked “A” of the connector and release
the lock. Pull out the flexible card wire.
Insertion method
Insert the flexible card wire fully up to the marked line and
push up the portion marked “A” of the connector.
n
The flexible card wire has the conduction side and the
insulation side. Connect the flexible card wire after
checking for the correct side as shown.
If the condition side and the insulation side are connected
in the wrong direction, the circuit will not operate.
3-6. Notes on Repair Parts
3-6-1. Flexible Card Wire Replacement
The following six types of flexible card wire are used in
the DSR-2000/2000P.
n
Take utmost care when handling the flexible card wires
because their life is extremely shortened by folding.
< Type A >
Removing method
Raise the portion marked “A” of the connector and release
the lock. Pull out the flexible card wire.
Insertion method
Insert the flexible card wire fully up to the marked line and
push up the portion marked “A” of the connector.
n
The flexible card wire has the conduction side and the
insulation side. Connect the flexible card wire after
checking for the correct side as shown.
If the condition side and the insulation side are connected
in the wrong direction, the circuit will not operate.
