10-13
DSR-2000/2000P
Specification
VIDEO OUT 1 (75 Z terminated)
Step 1 Chroma Level
(A) Burst preset
(B) ENC R-Y LEVEL
ENC B-Y LEVEL
TRIG : REF. VIDEO

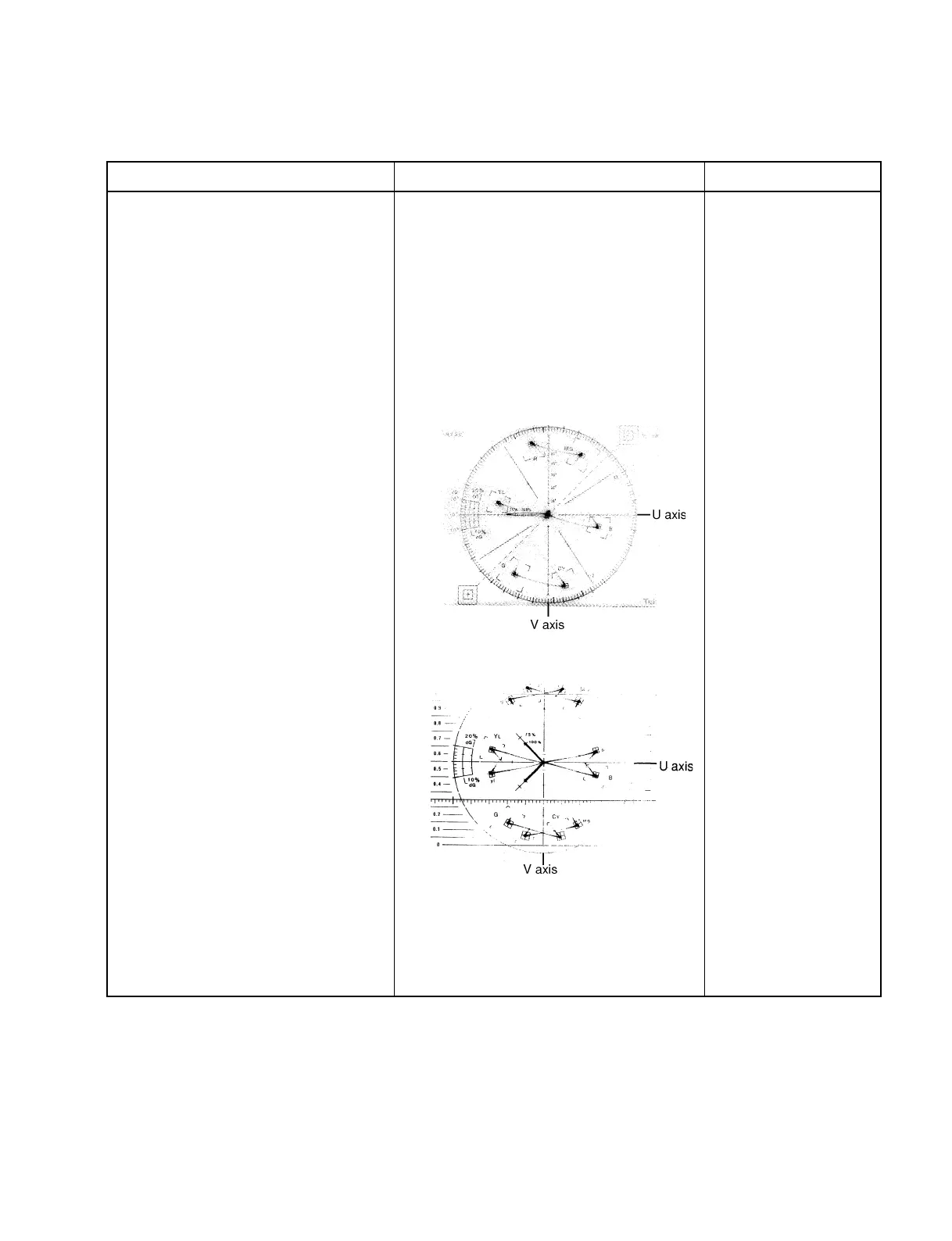

Vector (for NTSC)
Vector (for PAL)
Spec. (A) Set the dot of the burst in the right
position on the scale.
(B) All dots should be inside the “4”
mark on the vector by adjustment
RV200 and RV201 alternately.
Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
n
The “Setup ON/OFF” setting of the DSR-
2000 and that a vectorscope must have
been set to the same position beforehand.
Connection 2
10-3-13. PB VIDEO OUT 1 Chroma/Burst Level Adjustment
Adjustment
1PHASE control/Vector
1RV701/VPR-62 (D-1)
1RV702/VPR-62 (C-1)
10-3. Video Adjustment
10-3-13. PB VIDEO OUT 1 Chroma/Burst Level Adjustment
To Next Page
