Sony DSR-2000 - REF. INT SCH Phase Adjustment

10-20
DSR-2000/2000P
Specification
REF. VIDEO OUT (75 Z terminated)
(A) Burst Preset
(B) Sync Phase
TRIG : INT/WFM

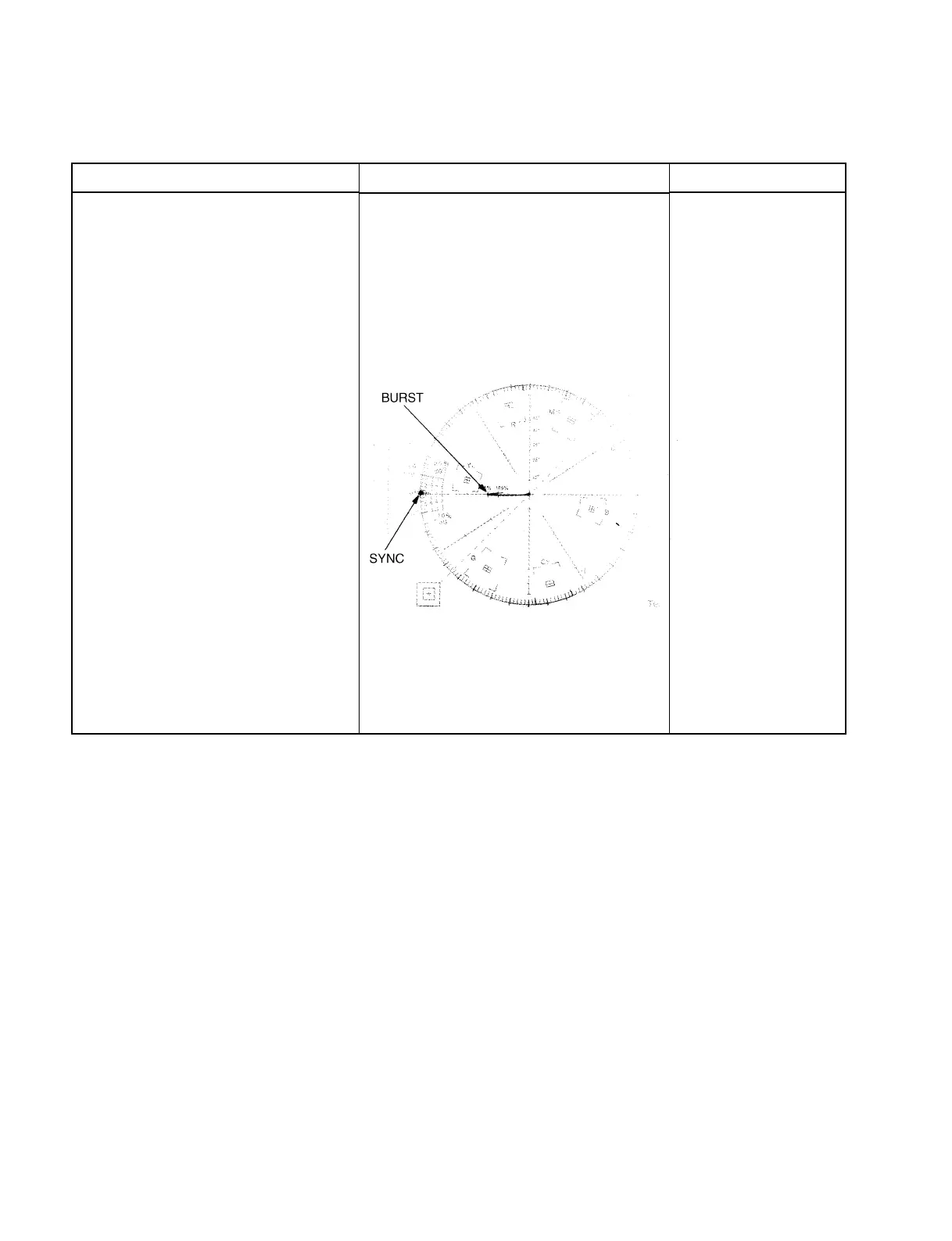

SCH mode
Spec. (A) Set the dot of the burst in the right
position on the scale.
(B) The SYNC should be in the same
phase as the burst. (SCH = 0 ±3 d)
Conditions for adjustment
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
. REF. VIDEO INPUT ; No signal
. AFTER ADJUSTMENT IS COMPLETED,
RE-CONNECT THE REF. VIDEO INPUT.
Connection 2
Adjustment
1PHASE control/Vector
1RV901/VPR-62 (L-3)
10-3-20. REF. INT SCH Phase Adjustment
10-3. Video Adjustment
10-3-20. REF. INT SCH Phase Adjustment
