Sony DSR-2000 - PB S VIDEO Chroma Level Adjustment

10-15
DSR-2000/2000P
Specification
CH-1/Oscilloscope
TP602/VPR-62 (D-2)
CH-2/Oscilloscope
TP603/VPR-62 (D-1)
Conditions for adjustment
WFM or Oscilloscope
. MENU ITEM 713-2, OUTPUT LEVEL ; 7.5 %
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
Connection 2
Specification
S VIDEO (C) OUT (75 Z terminated)
TRIG : REF. VIDEO
Spec.
[For NTSC]

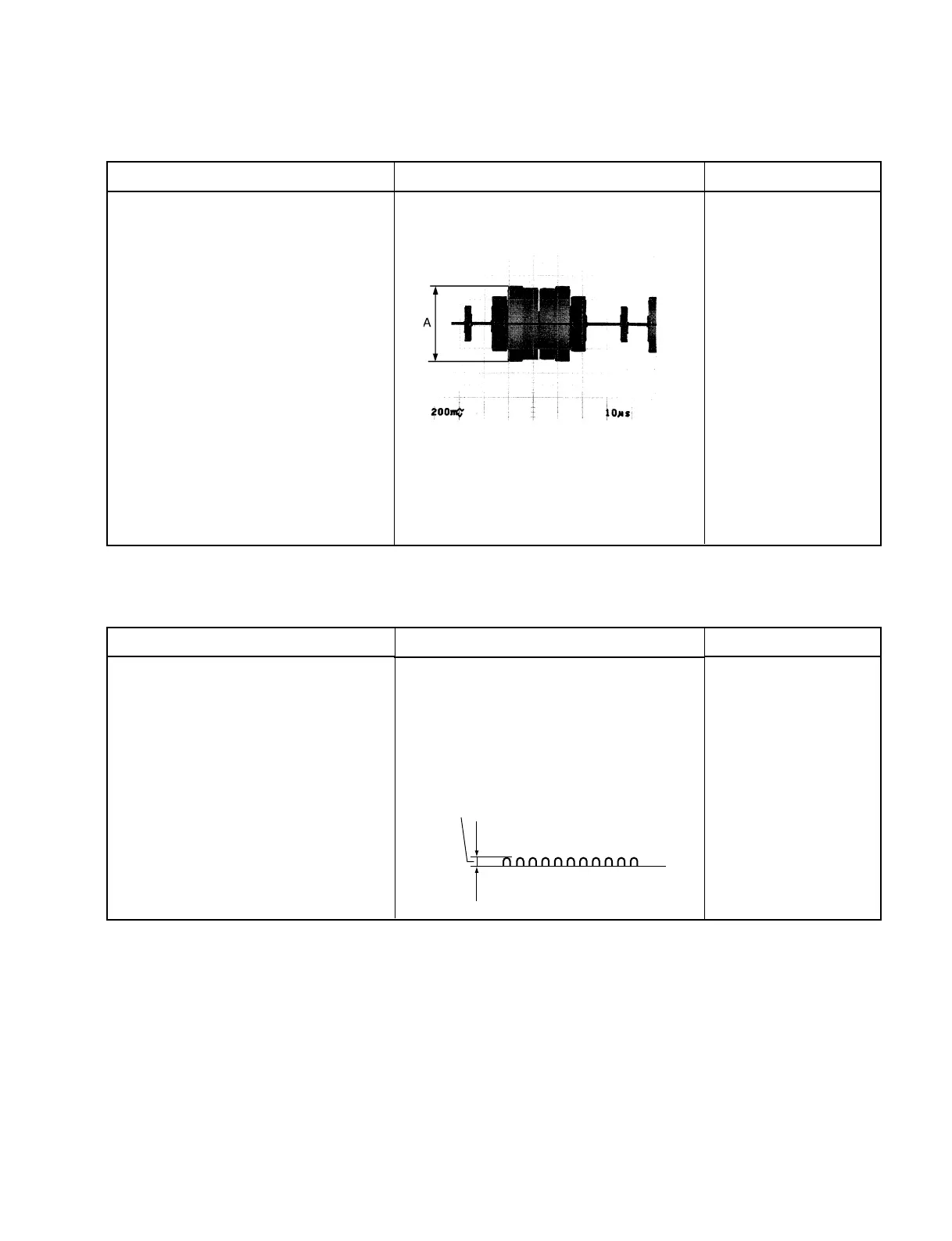

A = 0.627 ±0.007 V p-p (87.7 ±1 IRE)
[For PAL]
A = 0.885 ±0.006 V p-p
10-3-14. PB S VIDEO Chroma Level Adjustment
10-3-15. PB COMPOSITE C/C Delay Adjustment
Adjustment
1RV802/VPR-62 (N-5)
Conditions for adjustment
Oscilloscope
Vertical mode : INV +ADD
. PB mode
Bowtie/XH5-1A2 or XH5-1AP2
(02:00-02:30)
Connection 2
Adjustment
1RV603/VPR-62 (B-1)
10-3. Video Adjustment
10-3-14. PB S VIDEO Chroma Level Adjustment
10-3-15. PB COMPOSITE C/C Delay Adjustment
Spec. Minimize
