10-16

DSR-2000/2000P

Conditions for adjustment

. PB mode

Mod 12.5T/XH5-1A2 or XH5-1AP2

(07:50-08:20)

Connection 2

Specification

VIDEO OUT 1 (75 Z terminated)

TRIG : INT/WFM

WFM

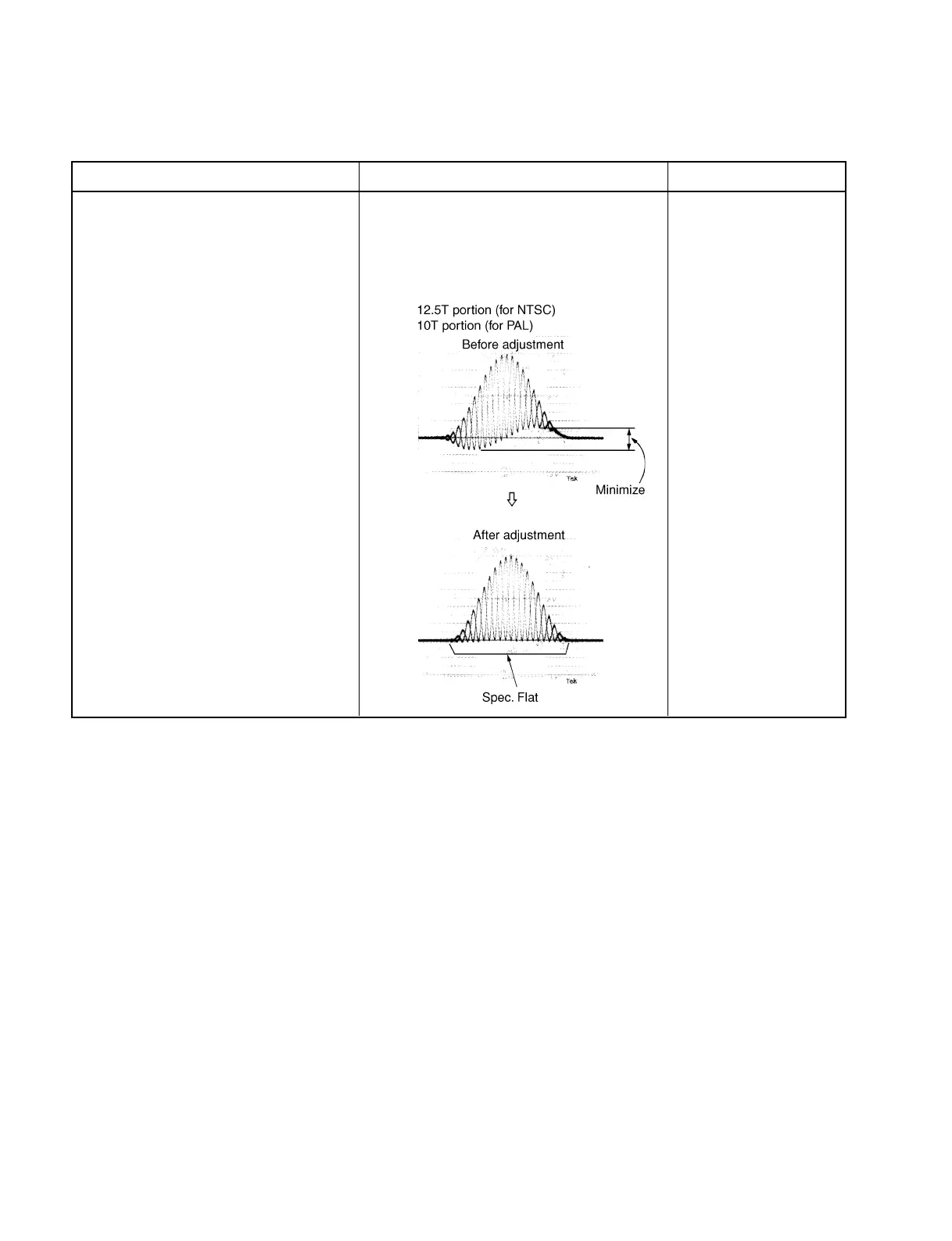

10-3-16. PB COMPOSITE Y/C Delay Adjustment

Adjustment

1RV602/VPR-62 (B-1)

10-3. Video Adjustment

10-3-16. PB COMPOSITE Y/C Delay Adjustment
