Sony DSR-2000 - REC y Clamp Level Adjustment

10-23
DSR-2000/2000P
Conditions for adjustment
WFM or Oscilloscope
. EE mode
. COMPONENT IN ; Pluse & Bar
n
Check that only NTSC MENU ITEM 713-1,
INPUT
LEVEL ; 0.0 %
Connection 1
Specification
COMPONENT Y OUT (75 Z terminated)

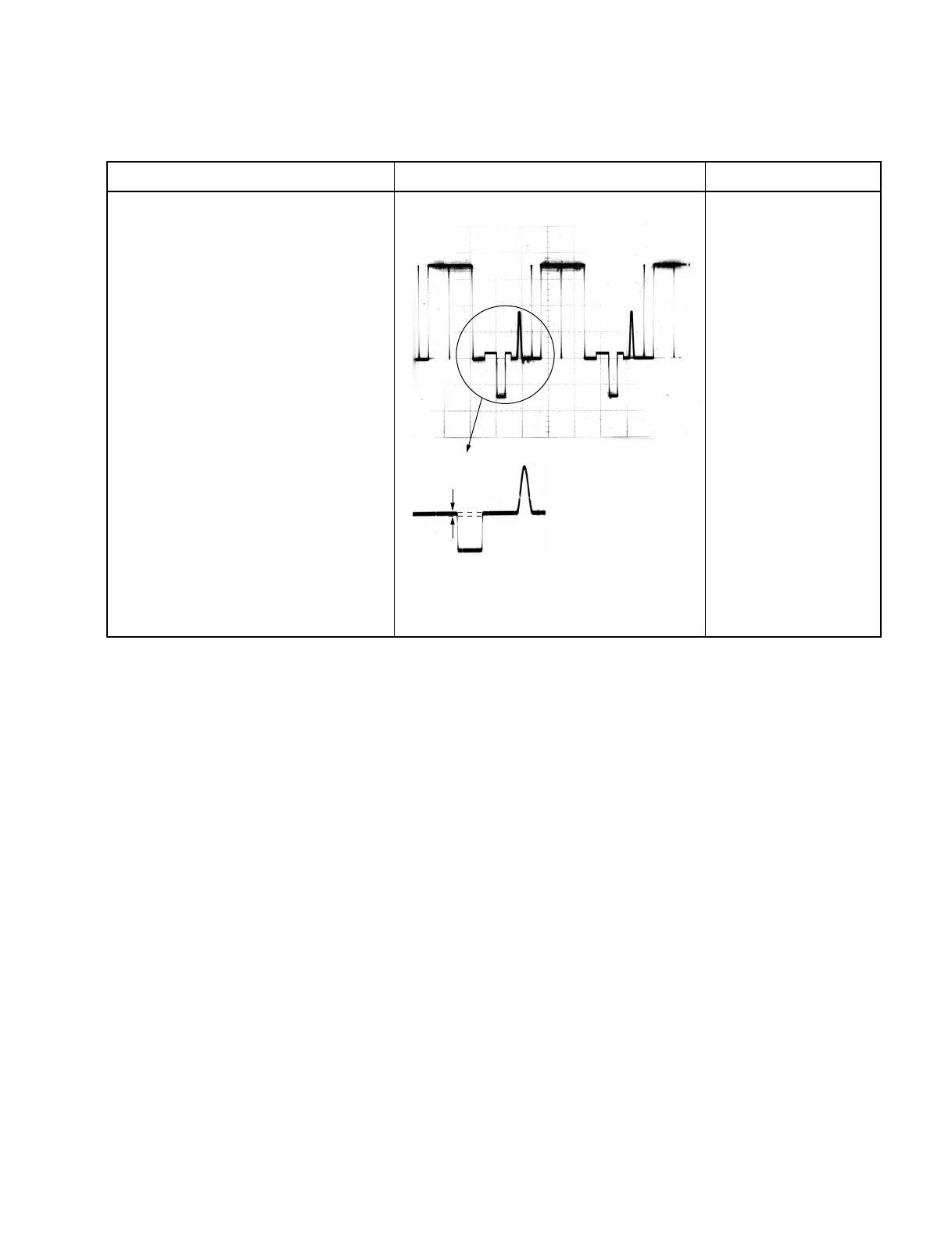

Spec. A = Minimize the level difference A at
setup.
10-3-23. REC Y Clamp Level Adjustment
Adjustment
1RV403/VPR-62 (J-2)
10-3. Video Adjustment
10-3-23. REC Y Clamp Level Adjustment
A
