Sony DSR-2000 - PB INT SCH Phase Adjustment

10-18
DSR-2000/2000P
Specification
VIDEO OUT 1 (75 Z terminated)
(A) Burst Preset
(B) INT SC
TRIG : INT/WFM
SCH mode

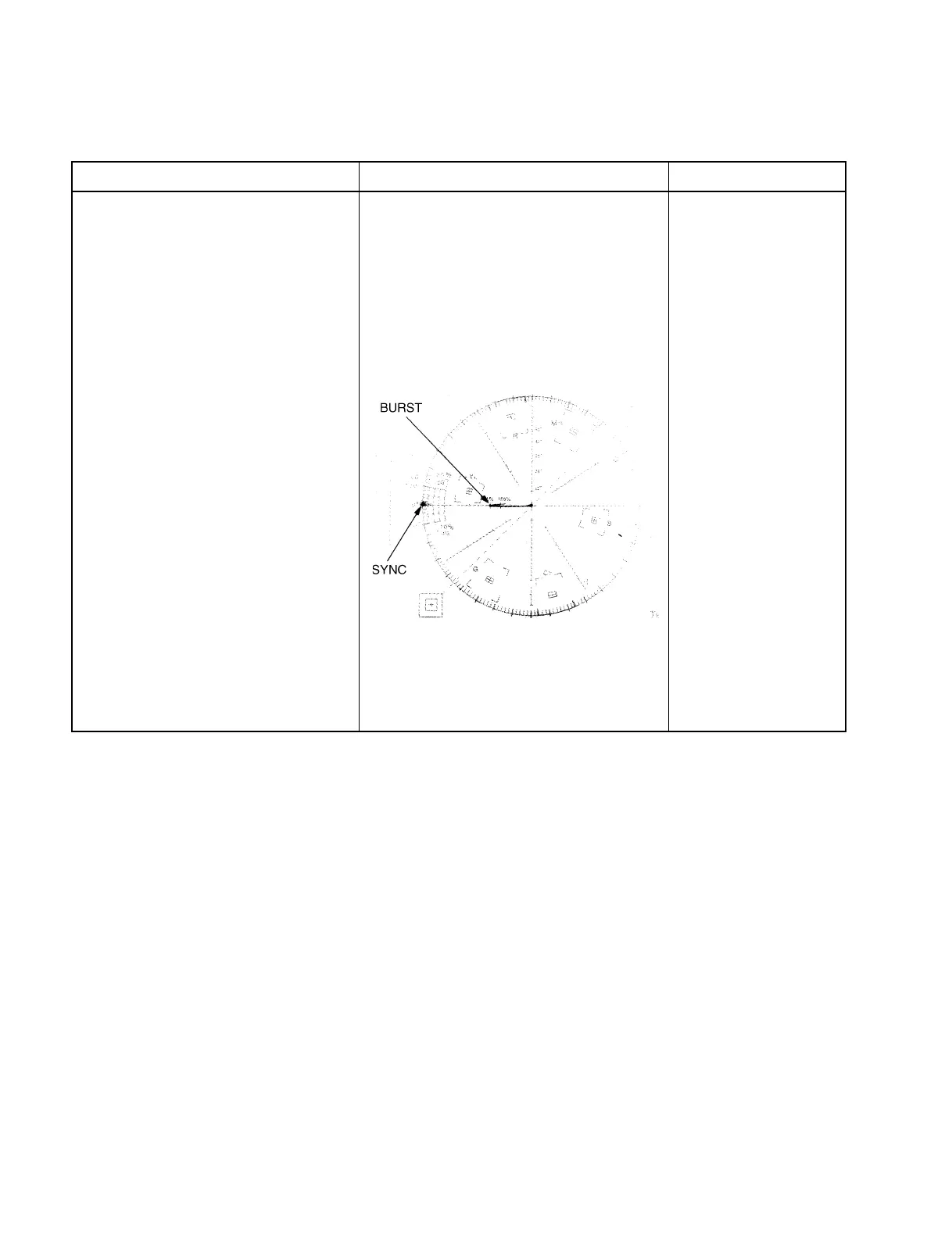

Spec. (A) Set the dot of the burst in the right
position on the scale.
(B) The SYNC should be in the same
phase as the burst (SCH = 0 d).
Conditions for adjustment
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
. REF. VIDEO INPUT ; No signal
. AFTER ADJUSTMENT IS COMPLETED,
RE-CONNECT THE REF. VIDEO INPUT.
Connection 2
10-3-18. PB INT SCH Phase Adjustment
Adjustment
1PHASE control/Vector
1RV903/VPR-62 (F-1)
10-3. Video Adjustment
10-3-18. PB INT SCH Phase Adjustment
