Sony DSR-2000 - INT SC Frequency Adjustment

10-6
DSR-2000/2000P
Specification
TP1004/VPR-62 (G-4)
Spec. f = 13,500,000 ±35 Hz
Conditions for adjustment
Oscilloscope or voltmeter
. STOP mode
Connection 1
Specification
1 Mesure the voltage (Vo) at TP1003/
VPR-62 (H-4).
2 Measure the voltage at the center terminal
of RV1002.
Spec. V = Vo ±0.1 Vdc
Conditions for adjustment
Frequency counter
. STOP mode
. REF. VIDEO IN ; No signal
. VIDEO IN Select ; Composite
. VIDEO IN ; No signal
10-3-1. INT SC Frequency Adjustment
10-3-2. HCK Frequency Adjustment
(Connection)
Adjustment
1RV1002/VPR-62 (G-4)
Adjustment
1RV1001/VPR-62 (G-4)

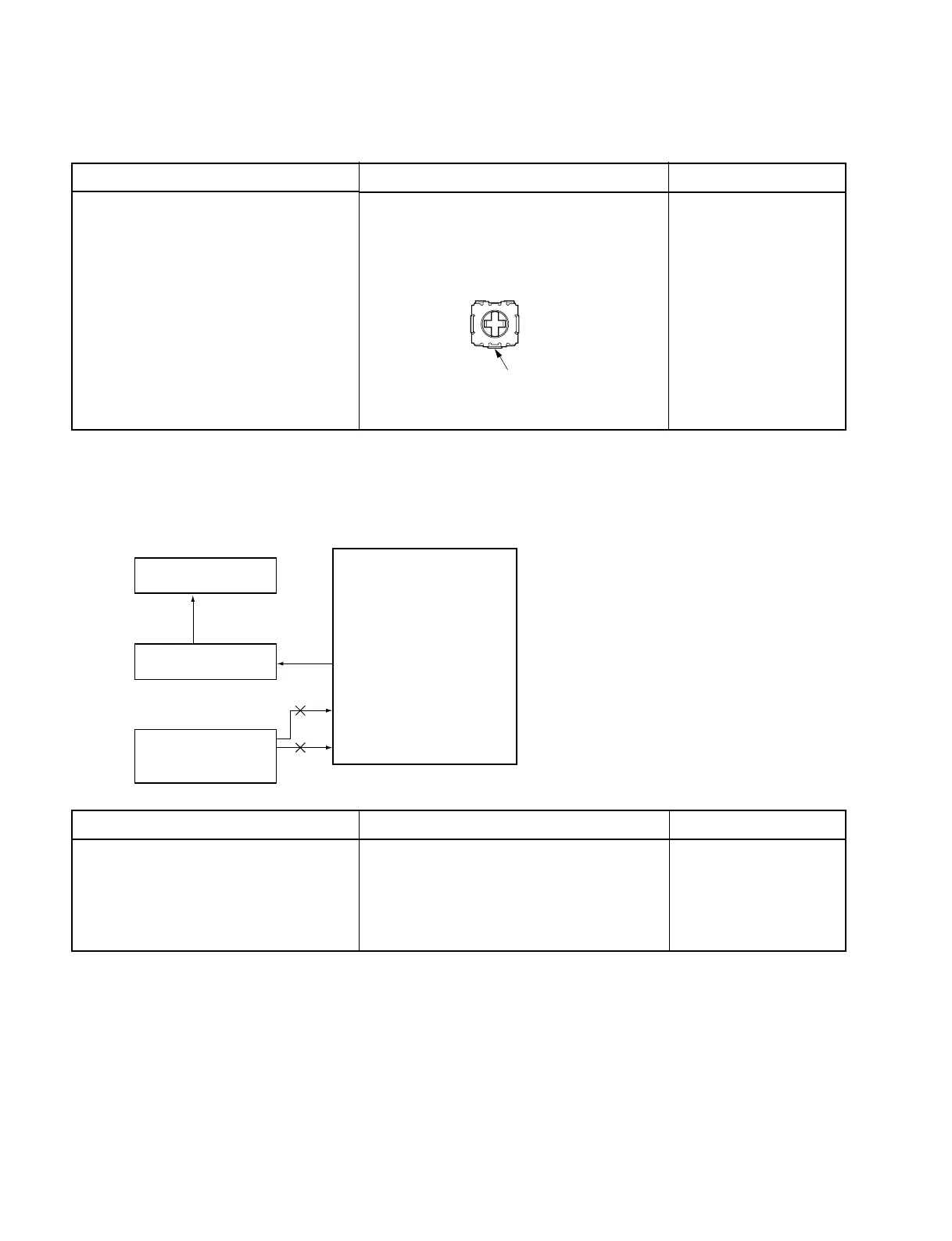

10-3. Video Adjustment
10-3-1. INT SC Frequency Adjustment
Oscilloscope
Frequency counter
Video signal generator
(NTSC : TSG-130A)
(PAL : TSG-131A)
TP
REF. VIDEO IN
VIDEO IN
DSR-2000/2000P
No. REF.
RV1002
Voltage measuring point
